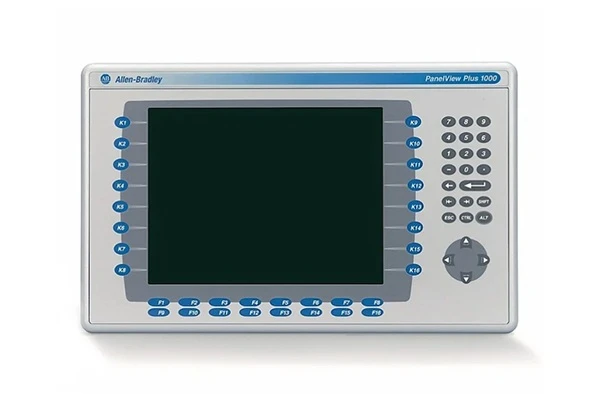

Allen Bradley 2711P-K10C15D1

The Allen Bradley 2711P-K10C15D1 is a versatile human machine interface (HMI) from the PanelView Plus 1000 series, specifically developed for industrial control systems. This tiny touchscreen gadget allows operators to easily monitor and handle machinery in factories, production lines, and other industrial environments.

Dimensions and Specifications

Device Dimensions	267 x 222 x 60 mm (W * H * D)
Weight	Approximately 2.2 kg
Power Supply Voltage	24V DC
Power Consumption	Maximum approximately 45 W
Operating Temperature Range	0 to 55 °C
Storage Temperature Range	-20 to 70 °C
Storage Humidity	5 to 95 % (non-condensing)
User Interface	Support touch screen operation

Product features

The Allen Bradley 2711P-K10C15D1 has a 10.4-inch color display with a resolution of 640x480 pixels, which provides vivid graphics for reading data such as machine speeds, temperature levels, and production counts. The resistive touchscreen is responsive, allowing for quick touches to alter settings or check statuses-even when operators wear gloves, which is frequent in industrial conditions.

The 2711P-K10C15D1's robust connectivity is one of its most notable features. It has an Ethernet and USB interface, allowing it to easily connect to Allen Bradley PLCs (such as the Micro800 and CompactLogix) and other industrial devices. It supports protocols like Ethernet/IP, ensuring rapid and dependable communication between the HMI and the devices it controls. Because of its interoperability, it is an excellent solution for both new installations and upgrades to existing systems.

The Allen Bradley 2711P-K10C15D1 is designed for long-lasting performance in harsh environments. It can withstand temperatures ranging from 0°C to 55°C, dust and mild water splashes, and ordinary factory vibrations. The 24V DC power supply is standard in industrial environments, making wiring and installation easier.

Allen Bradley's FactoryTalk View Studio software allows for easy programming and customization of the HMI. This program allows users to design unique panels using drag-and-drop functionality, set alarms for conditions such as high temperatures, and log data for later study. The 2711P-K10C15D1 also includes a real-time clock, which ensures precise time stamping of events and data.

FAQ

Q: What is the Allen Bradley 2711P-K10C15D1?

A: The Allen Bradley 2711P-K10C15D1 is a 10-inch PanelView Plus 1000 series HMI (Human-Machine Interface) designed for industrial automation. It features a color TFT touchscreen, 32 MB flash memory, and 64 MB RAM for running operator interfaces and control logic. With Ethernet/IP, Modbus RTU/ASCII, and RS-232/485 communication ports, it connects to PLCs, drives, and other devices like the Siemens 6ES7193-6BP00-0BA1 ET 200SP base unit for distributed I/O systems. Its IP65-rated enclosure (-10°C to 60°C operating range) makes it suitable for harsh environments in manufacturing, water treatment, and energy sectors.

Q: What are the key features of the 2711P-K10C15D1?

Multi-Protocol Support: Works with Ethernet/IP, Modbus RTU, and RS-232/485 for seamless integration with Siemens ET 200SP systems.
Expandable Memory: Supports SD cards for recipe storage or firmware updates.
Touchscreen Interface: Responsive capacitive touch technology for intuitive operator control.
Rugged Design: Resistant to dust, water, and vibrations (IP65/NEMA 4X).
Programming Software: Uses FactoryTalk View Studio for creating custom interfaces and connecting to Siemens devices via Modbus RTU.

Q: How do I connect the 2711P-K10C15D1 to a Siemens 6ES7193-6BP00-0BA1?

A: Modbus RTU Setup:

Use an RS485 cable to connect the 2711P-K10C15D1's COM2 port to the Siemens 6ES7193-6BP00-0BA1 ET 200SP base unit via its CM PTP module (e.g., 6ES7137-6AA00-0BA0).
Configure the 2711P-K10C15D1 as a Modbus RTU master in FactoryTalk View Studio, setting the Siemens ET 200SP's slave address (e.g., 1), baud rate (e.g., 9600), and parity (e.g., None).
Map Modbus registers in the HMI to access I/O data from the Siemens modules (e.g., read input signals from ET 200SP digital modules).
