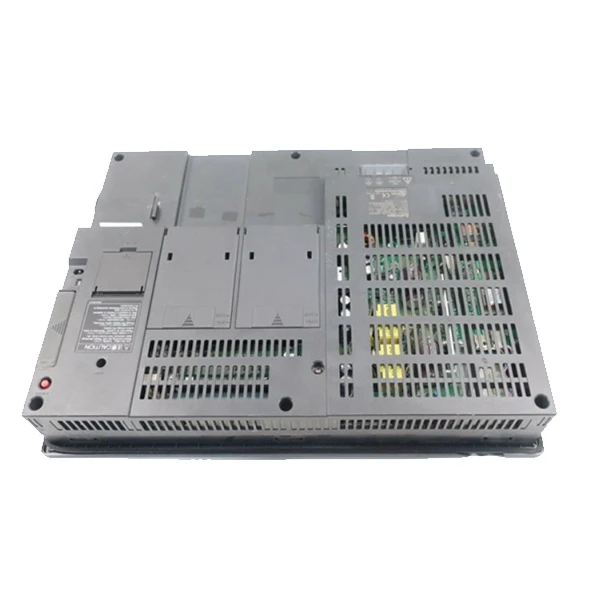

Mitsubishi GT1695M-XTBA GOT1000

Mitsubishi GT1695M-XTBA GOT1000
Details:
Mitsubishi GOT 1000 GT1695M-XTBA
Brand: Mitsubishi
Model: 1000 GT1695M-XTBA
Inventory situation: Goods are available in stock.
The Mitsubishi GOT 1000 GT1695M-XTBA touch screen, as a star product in the field of industrial automation, combines advanced technology and exquisite craftsmanship. It is specifically designed to meet the complex and diverse control and monitoring requirements of modern industry and serves as a crucial hub for human-machine interaction. Driven by the wave of Industry 4.0, with its outstanding intelligence level, it helps enterprises build efficient, flexible and accurate production systems. Whether it is the automated production line in large-scale manufacturing, the process industries such as chemical and pharmaceutical with extremely high requirements for stability, or the food and beverage processing field that pursues fine operations, this touch screen can, with its excellent performance, seamlessly interface with various equipment and systems, realizing high-speed data transmission and accurate processing.
Send Inquiry
Description
Send Inquiry
Product Specifications

Screen Size: 15 inches
Display Type: TFT Color Liquid Crystal
Resolution: 1024 x 768
Brightness Levels: 8 - level

Mitsubishi
GT1695M-XTBA

Touch Type: Analog Resistive
Battery Type: GT25 - BAT Lithium Battery
Ethernet: Supports TCP/IP Protocol



Core Advantages Of The Product



The Mitsubishi GT1695M-XTBA is a high-performance graphic operation terminal (HMI) from the Mitsubishi Electric GOT1000 series, specifically part of the GT16 lineup, designed for seamless human-machine interaction in industrial settings. This 15-inch HMI terminal offers reliable performance and versatile connectivity, making it ideal for use with PLCs, inverters, servo amplifiers, and other industrial equipment. While it was discontinued in September 2019, it remains a trusted solution in many existing industrial systems.



The GT1695M-XTBA features a 15-inch TFT color LCD display with a resolution of 1024 × 768 pixels (XGA), providing clear and detailed visuals for monitoring industrial processes. The display area measures 304.1 mm (width) × 228.1 mm (height), with support for 65,536 colors (65k colors) to ensure vibrant and accurate representation of data and graphics. It offers wide viewing angles of 80 degrees horizontally (left and right), 60 degrees upward, and 80 degrees downward, allowing operators to view the screen clearly from various positions.



With a brightness level of 450 cd/m² and 8-level brightness adjustment, the display remains visible even in brightly lit industrial environments. The LED backlight provides long-lasting performance, with a lifespan of approximately 52,000 hours at 25°C or over 60,000 hours when operated at 50% brightness. The terminal supports up to 4096 registerable screens, enabling comprehensive visualization of complex industrial processes.



The analog resistive film touchscreen offers precise and reliable input, with a minimum key size of 2 × 2 points per key. It supports single-point touch only (no multi-touch capability) and has a touch lifespan of over 1,000,000 operations with an operating force of 0.98N or less. Additionally, the GT1695M-XTBA includes a human sensor that detects movement within 1 meter, with a detection range of 70 degrees vertically and horizontally and an adjustable detection delay from 0 to 4 seconds.



FAQ



Q: What are the display specifications of the GT1695M-XTBA?

A: The GT1695M-XTBA features a 15-inch TFT LCD display with XGA resolution of 1024 × 768 pixels. It supports 65,536 colors. The LED backlight delivers 450 cd/m² brightness with 8-level adjustable control. Viewing angles are 75° left, 75° right, 50° up, and 60° down. The touchscreen uses analog resistive film digitizer technology.

Q: What is the difference between GT1695M-XTBA and GT1695M-XTBD?

A: The only difference is the power supply input. GT1695M-XTBA runs on AC power (100–240V AC), while GT1695M-XTBD runs on DC 24V. All other specifications-display size, resolution, color depth, communication ports, and physical dimensions-are identical between the two models.

Q: What software is required to program this HMI?

A: The GT1695M-XTBA is programmed using GT Works3 software. It is compatible with GT Designer2 version 2.90U or later. For replacing GT15 models with GT16 models, GT Works3 version 1.01B or later is required for full compatibility. The unit supports multi-channel function, document display, and Q/QnA ladder monitoring.

Q: What are the environmental protection ratings and certifications?

A: Front panel is rated IP67 (dust-tight and protected against temporary immersion). Operating temperature range: 0°C to 55°C. Storage temperature: -20°C to 60°C. Humidity tolerance: 10% to 90% (non-condensing). Certified to CE, UL, cUL, RoHS, KC, ABS, DNV, GL, LR, BV, RINA, and NK standards.

Q: Is the GT1695M-XTBA still in production?

A: No, this model has been discontinued by Mitsubishi Electric. Manufacturer product status is listed as discontinued. However, new surplus and refurbished units remain available from third-party industrial automation suppliers, often with 2-year repair warranties.
