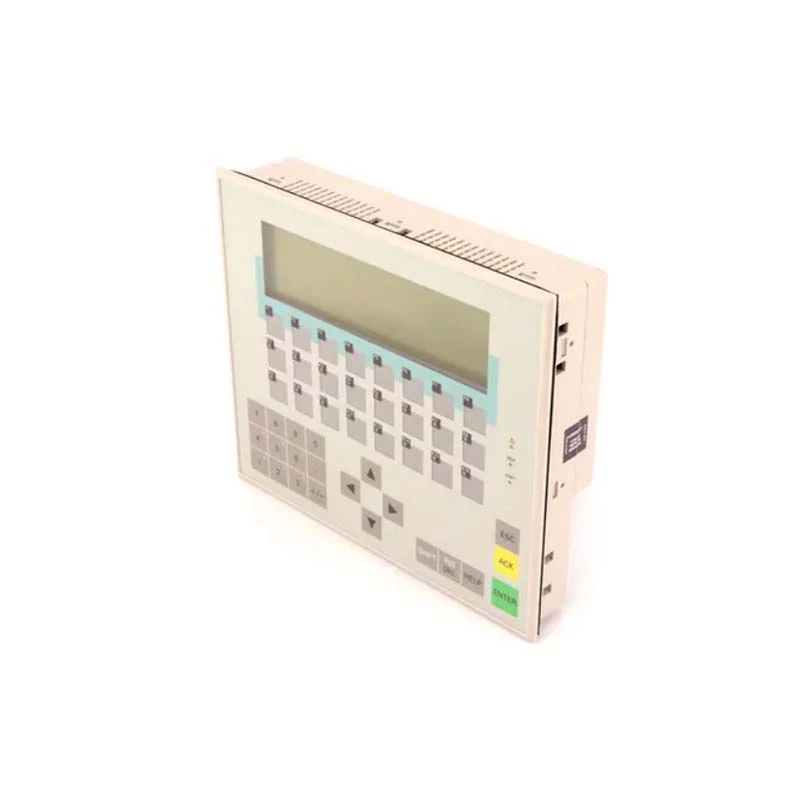

Siemens 6AV3617-1JC20-0AX1

Brand: Siemens
Model: 6AV3617-1JC20-0AX1

Inventory situation: Goods are available in stock.

Product features

The Siemens 6AV3617-1JC20-0AX1, also known as the OP17/DP, is a dependable human-machine interface (HMI) panel intended for industrial automation systems. This robust gadget has a monochrome LCD display with LED backlighting, providing great visibility for operators in a variety of settings. It efficiently provides process data, machine status, and error notifications using either 4x20 or 8x40 character lines. The display's strong contrast ensures reading even in low-light circumstances, and the LED backlighting lasts up to 200,000 hours.

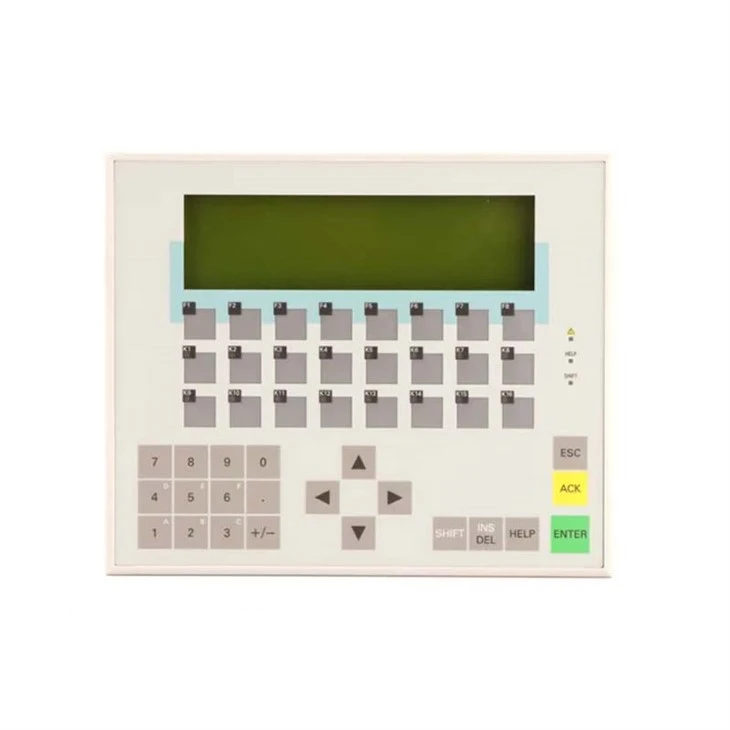

The OP17/DP has 24 function keys and 22 system keys, as well as a numeric keypad, which allows users to enter instructions and traverse menus with ease. Sixteen of the function keys are programmable and have LED indications that provide visual feedback from the connected PLC. The panel communicates via RS232, RS422, and RS485 interfaces, making it compatible with Siemens SIMATIC S7 and M7 systems via PROFIBUS-DP at up to 1.5 Mbps. This connectivity enables seamless integration with industrial networks, allowing for real-time monitoring and control.

The OP17/DP is built to last, with an IP65-rated front panel that resists dust and moisture and an IP20-protected back for indoor operation. It uses a 24V DC power source and consumes only 10W, making it suitable for long-term industrial applications. The device has 256KB of flash memory for setup and data storage, as well as an optional battery backup for crucial settings. It is UL and CSA certified and meets stringent safety requirements for use in North American and foreign markets.

The Siemens 6AV3617-1JC20-0AX1 manual includes step-by-step setup instructions and troubleshooting information. Engineers and technicians can use the official standards to ensure compatibility with Siemens drives such as G120 and S120, as well as interaction with TIA Portal projects. The panel's flexible interface allows for additional functionality like as motor data entry and automatic test reports, making it an ideal alternative for complex industrial setups.

Specifications

Model Alias	OP17/DP
Display	Monochrome LCD screen
Backlight Life	Typical value 200,000 hours
Input Voltage	24V DC (±10%)
Power Consumption	10W

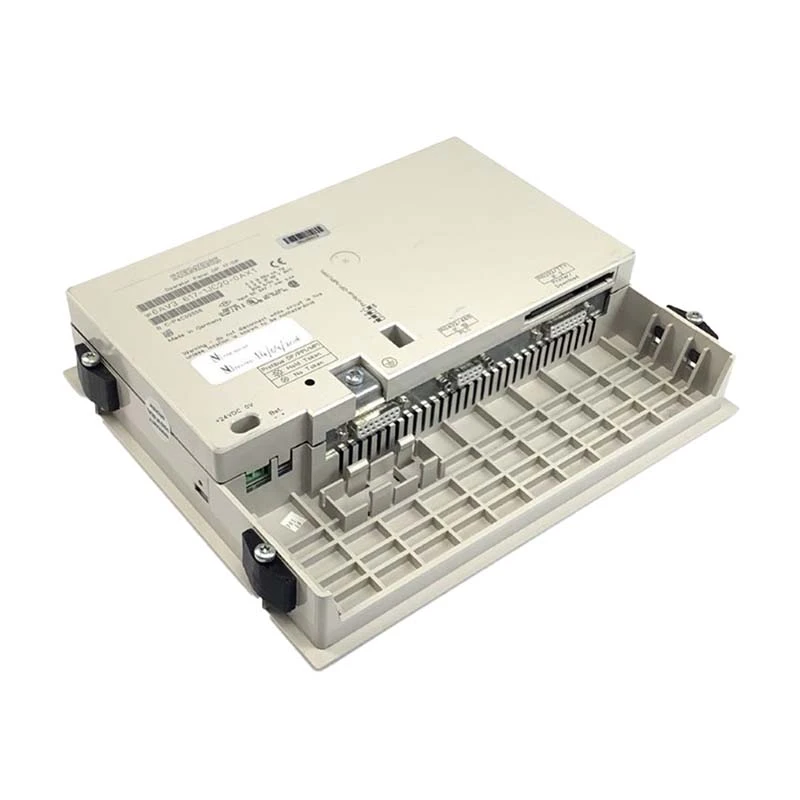

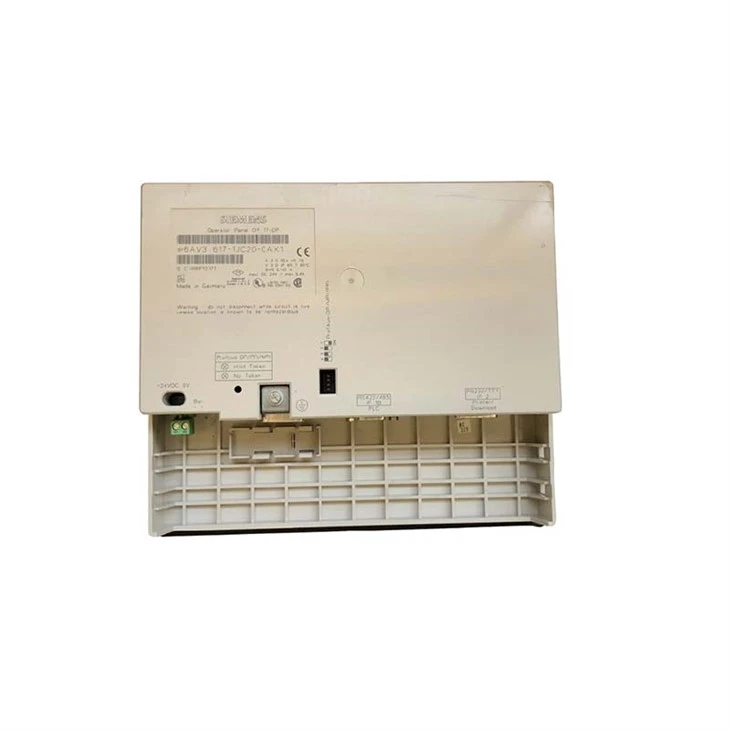

Communication Interfaces	RS232/TTY port, RS422/485 port, DB9 connector
Dimensions	240 mm (W) × 204 mm (H) × 50 mm (D)
Certifications	CE, UL, FM Class I Div 2, etc.

Precautions

Install the Siemens 6AV3617-1JC20-0AX1 in situations with temperatures ranging from 0°C to 50°C for operation and -25°C to 70°C for storage. This Simatic OP17/DP operator panel should not be used in regions with high humidity (maximum 95% non-condensing) or direct exposure to dust or water. The front panel of the Siemens 6AV3617-1JC20-0AX1 is IP65 protected against dust and moisture; however, the back is IP20. Therefore, ensure a suitable enclosure for critical components of this HMI panel.

Mount the Siemens 6AV3617-1JC20-0AX1 vertically to avoid overheating and guarantee appropriate airflow. To prevent electromagnetic interference (EMI) on the Simatic OP17/DP operator panel, utilize shielded cables for PROFIBUS-DP connections and ground one end (ideally the PLC side). Check that the mounting brackets securely support the 0.8 kg Siemens 6AV3617-1JC20-0AX1 unit with no pressure on the connectors.

Connect the Siemens 6AV3617-1JC20-0AX1 to a reliable 24V DC power supply with a maximum current consumption of 0.34A. This Simatic OP17/DP operator panel requires a separate connection to prevent voltage fluctuations from other devices. A UPS is recommended for important applications that require the Siemens 6AV3617-1JC20-0AX1 to operate during power outages.

FAQ

Q: What is the Siemens 6AV3617-1JC20-0AX1?

A: The Siemens 6AV3617-1JC20-0AX1 is a SIMATIC OP17/DP operator panel (HMI) from the Siemens SIMATIC series, designed for machine and process control in industrial automation environments. It features an LC display with LED backlighting, supporting both 4×20 and 8×40 character display modes, and is compatible with SIMATIC S7 and M7 systems via PROFIBUS DP communication at up to 1.5 Mbaud.

Q: What is the PROFIBUS DP communication performance?

A: The PROFIBUS DP interface on the 6AV3617-1JC20-0AX1 supports a maximum baud rate of 1.5 Mbaud. At this transmission speed, the maximum cable segment length between devices is 200 meters. The panel acts as a DP slave, enabling real-time data exchange with a SIMATIC S7 or M7 master controller.

Q: What is the processor and memory configuration?

A: The 6AV3617-1JC20-0AX1 is equipped with an X86 processor and uses Flash / RAM memory architecture, providing non-volatile storage for user data. According to Siemens equipment manuals, updated and newly created data are stored in non-volatile flash memory, meaning current data are immediately available following an OP restart. The flash memory cannot be accessed while data are being updated.

Q: What is the operating temperature range?

A: The 6AV3617-1JC20-0AX1 operates reliably within a 0°C to 50°C (32°F to 122°F) ambient temperature range, making it suitable for standard industrial control room and factory floor environments.

Q: What is the typical lifespan of the LED backlight?

A: While Siemens does not publish a specific MTBF rating for the OP17 LED backlight, comparable Siemens OP7 models (6AV3607-1JC30-0AX1) have an LED backlight MTBF of approximately 1,000,000 hours at 25°C. Given the same LED backlight technology generation, the OP17 likely achieves similar or longer backlight longevity due to its larger heat dissipation area.
