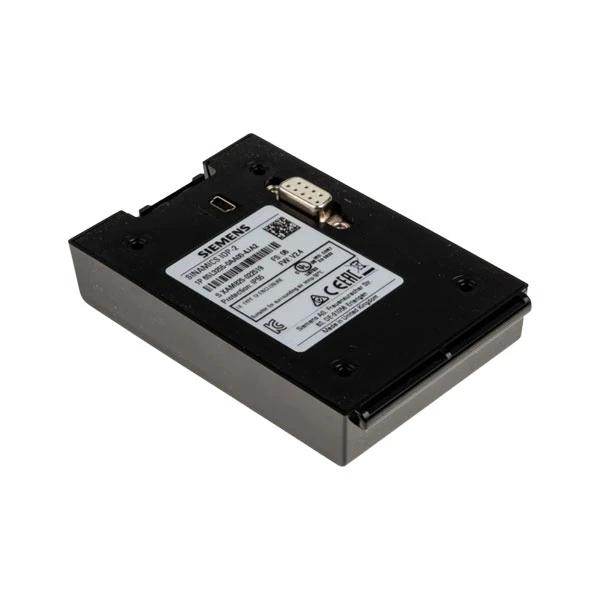

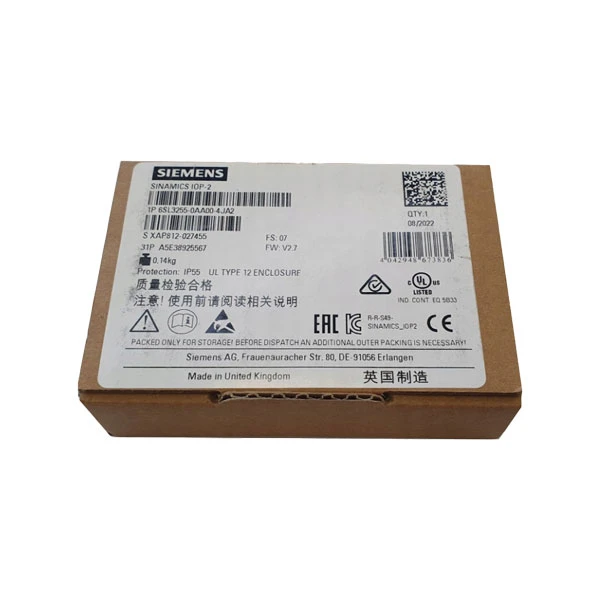

Siemens 6SL3255-0AA00-4JA2

Brand: Siemens
Model: 6SL3255-0AA00-4JA2

Inventory situation: Goods are available in stock.

Product features

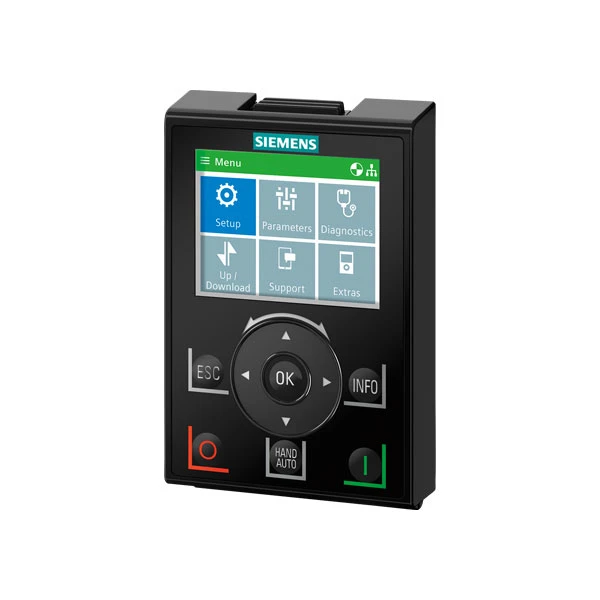

The Siemens IOP-2, or smart operator panel, 6SL3255-0AA00-4JA2, is made for Siemens SINAMICS G series industrial inverters. Numerous well-known SINAMICS inverters, including the G120, G120C, G110M, G110D, and G120D, are compatible with this Siemens 6SL3255-0AA00-4JA2 panel.

The Siemens 6SL3255-0AA00-4JA2's hardware includes a 3.97-inch monochrome LCD screen with 320 x 240 pixels. Because of the screen's movable backlight, you can see well in both bright and dark environments. With buttons and a knob for speedy operation, it's also simple to use. Additionally, it supports QR codes, which enable quick connections to mobile devices and simplify setup and checks. It has the ability to communicate via PROFIBUS DP and Ethernet with the assistance of the inverter's control unit. Additionally, it has a USB port that allows you to connect it to a computer for updating or debugging.

People from different places can use the Siemens 6SL3255-0AA00-4JA2 with ease because it speaks 14 languages, including English, German, and simplified Chinese. It's excellent for diagnosis because it allows you to swiftly reset faults and displays inverter status and fault codes in real time. Additionally, you can save time when configuring multiple devices by backing up or restoring parameters and copying them to other inverters.

Specifications

Model	6SL3255-0AA00-4JA2
Series	SINAMICS G (IOP-2)
Product positioning	Intelligent operation panel
Operation method	Key and knob
Operating temperature	-20°C to +60°C
Protection rating	IP55
Language support	German, English, French, Chinese (Simplified), and 14 other languages
Dimensions	106.85 mm (H) × 70 mm (W) × 19.65 mm (D)

Precautions

First of all, the Siemens 6SL3255-0AA00-4JA2 should never be confused with other Siemens inverter components, such as power supplies or modules. It is strictly an operator panel for local control, parameter setting, and diagnosis, despite the fact that some third-party sellers may mistakenly call it a "power module." Before purchasing or installing, always make sure the Siemens 6SL3255-0AA00-4JA2 model number matches your needs for SINAMICS G series inverters.

Second, closely examine Siemens 6SL3255-0AA00-4JA2's protection rating. Its default protection level is IP55, which means it can resist dust and low-pressure water spray. Use the Siemens 6SL3255-0AA00-4JA2 door-mounting kit if you require a higher level (IP65, completely dust-tight, and water-resistant). The panel cannot achieve IP65 without this kit, and in harsh industrial environments, it could be harmed by water or dust.

Third, adhere to the Siemens 6SL3255-0AA00-4JA2 power supply guidelines. The control unit of compatible Sinamics inverters (such as G120 or G120C) with 24V DC is the only source of power for this panel. Do not connect it to an external power source directly-this will break the panel or even damage the inverter's control unit. Additionally, before powering the panel, make sure the inverter's control unit is operating correctly, as a malfunctioning control unit could lead to the panel failing.

FAQ

Q: What is the Siemens 6SL3255-0AA00-4JA2, and what is its primary function?

A: The Siemens 6SL3255-0AA00-4JA2 is a CU250S-2 SINAMICS G120 Control Unit. It serves as the SINAMICS G120 variable frequency drive's brain center. For devices like pumps, fans, and conveyors, its main job is to regulate the speed, torque, and direction of motors. This particular model is essential to constructing a strong and adaptable SINAMICS G120 drive system.

Q: Which Siemens drive systems is the 6SL3255-0AA00-4JA2 compatible with?

A: The central component of the SINAMICS G120 drive system is this control unit. It is intended to be used in conjunction with SINAMICS G120 Power Modules (PMs) to form an entire inverter. The CU250S-2 is a standard option in the modular G120 portfolio and is designed for general-purpose applications.

Q: Where can I find the technical data sheet, manual, or firmware for the 6SL3255-0AA00-4JA2?

A: The official Siemens Industry Mall or Siemens Support Portal is the most trustworthy source for all documentation, including the SINAMICS G120 CU250S-2 technical data sheet, user manual, and firmware updates. You can access the entire product resource page by searching for the full article number 6SL3255-0AA00-4JA2.
