SIMATIC HMI KTP700 Mobile

SIMATIC HMI KTP700 Mobile
Details:

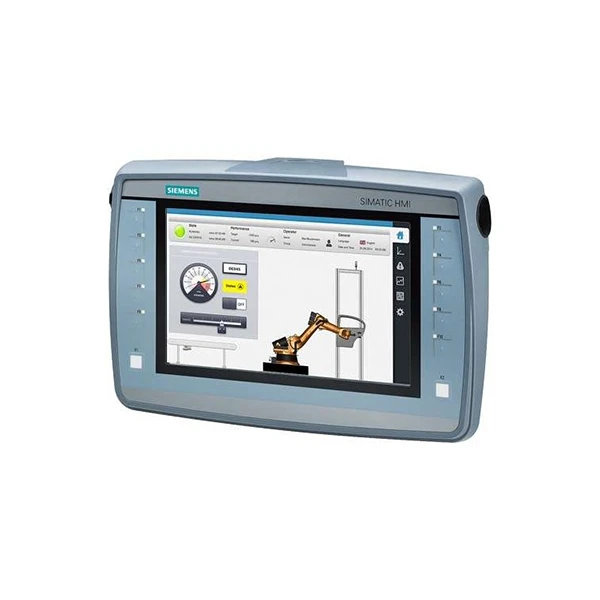

SIMATIC HMI KTP700 Mobile
6AV2125-2GB03-0AX0
Brand: SIMATIC
Series: KTP700
Model: 6AV2125-2GB03-0AX0
Inventory situation: Goods are available in stock.
This is a SIMATIC HMI KTP700 Mobile Mobile panel launched by Siemens, which brings convenient, efficient and reliable operation experience to industrial production. The 7-inch TFT widescreen display has LED backlight, which has good backlight performance and good visual effects. With 8 buttons, it is easy to operate. The Ethernet interface supports high-speed data exchange, the USB interface is convenient for external connection, the durability and protection performance are first-class, and the double-arm round shell is impact-resistant.
Send Inquiry
Description
Send Inquiry
Product Specifications

Brand: SIMATIC
Series: HMI KTP700 Mobile
Model: 6AV2125-2GB03-0AX0
Dimensions: 7 inches
Resolution: 800x400

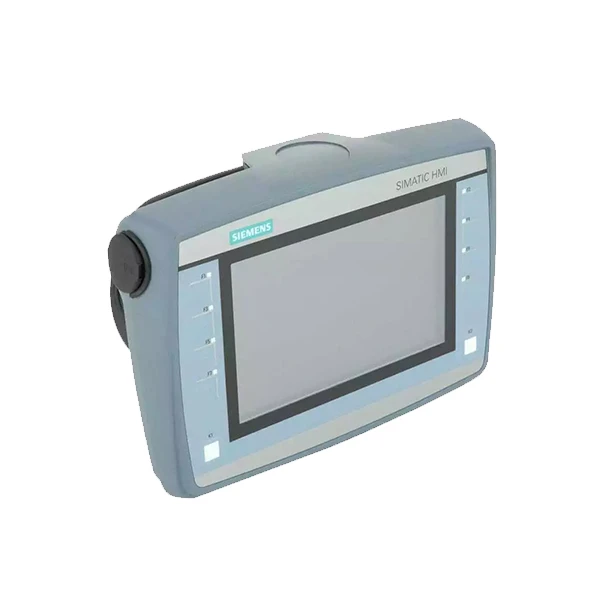

SIMATIC HMI KTP700 Mobile 1
SIMATIC HMI KTP700 Mobile

Display type: TFT display
Special: operating elements
Function keys: 8 key functions
Net weight: 1,259 kg
Packing size: 21,50x26,20x9,90 CM



Product Features



1. The mobile panel facilitates operators and debugging engineers to work from the best viewing angle. It is suitable for large-scale factory equipment and is responsible for the debugging of closed machines, long material conveying or production lines. It can shorten the downtime during mechanical reassembly, maintenance or repair. , high flexibility.
2. This product is equipped with 8 function keys with tactile feedback and LED lights, key switches, confirmation buttons, emergency stop buttons and other special operating components, which can meet the diverse operating needs of complex scenes and facilitate users' quick operation and function switching.
3. The function keys are equipped with tactile feedback, which can give users clearer feedback during operation, more accurately perceive whether the operation is successful, and reduce the possibility of misoperation.
4. The screen is 7 inches, which is medium-sized. The display content is clear and easy to carry and view on the go. It is a high-brightness color display that has better effects under various light conditions, and information can be easily viewed under different lights.
5. It has a standard Multi Media card/SD card slot, which can be used to back up or restore configurations or recipes. It is convenient for users to transfer and back up on different devices, and it is also helpful for quickly restoring data when a device fails.



FAQ



Q: How do I connect my HMI to my computer?

A: In LAN mode, connect the PC to the HMI using an Ethernet cable and ensure that both the PC and the HMI are configured with IP addresses within the same gateway (see LAN download for guidance). Verify that the HMI and PLC are communicating correctly in Xnet mode. Then, launch the PLC programming software, configure the Ethernet port in the software's serial port settings, and click on restart service, followed by OK.

Q: How does human machine interface work?

A: The working principle of the human-machine interface (HMI) can be simply summarized as the following steps:
1. Input: The user sends commands to the machine using buttons, touch screens or other input devices.
2. Processing: The HMI receives the user's instructions and processes this information through software, converting it into operations that the machine can understand.
3. Output: After the operation is performed, the HMI will feedback the user the status of the machine, such as operation or failure, through the screen, indicator lights or sound.
4. Monitoring: The HMI can also monitor the machine's working data in real time and record performance and failure conditions.
