AC or DC Drive for Industrial Equipment? A Practical Decision Guide for New Installations and Legacy Systems

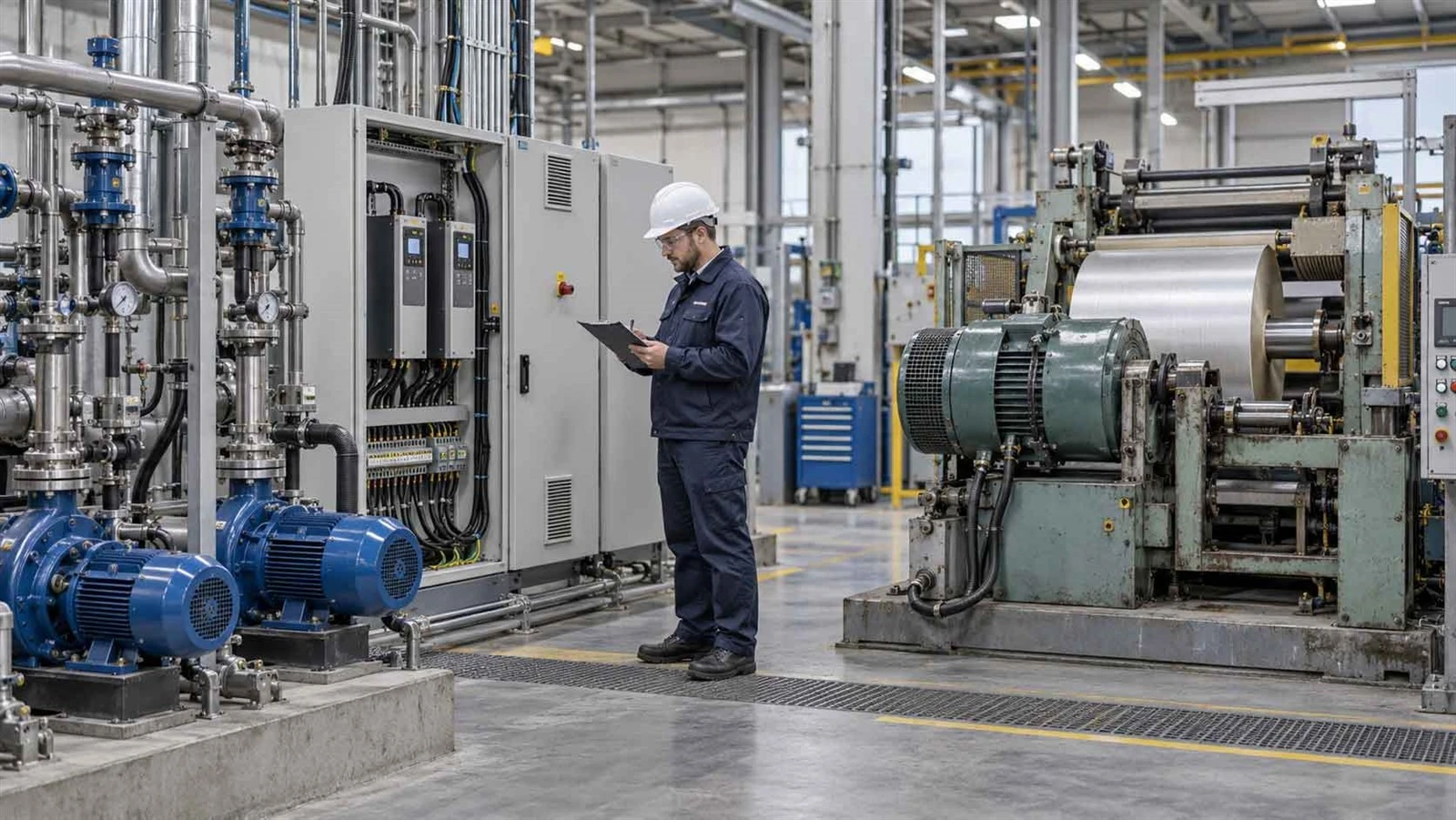

A new pump station and a twenty-year-old DC winder may both need variable speed control, but they should not start with the same selection logic. The practical AC drive vs. DC drive decision depends on the motor already installed, the load, required speed and torque, braking behavior, feedback, control architecture, maintenance capability, and expected machine life.

For many new variable speed machines, an AC motor with a variable frequency drive, or VFD, is one of the first architectures engineers evaluate. An existing DC machine is different. If the motor is healthy, the drive remains supportable, and production is stable, keeping or replacing the DC system may create less risk than a full conversion.

This guide focuses on that decision. For a broader technology comparison, see our AC vs DC Drives: 8 Key Differences and How to Choose for Industrial Applications guide. Here, the focus is what to evaluate first for a new installation, a failed drive, or a legacy system.

Start With the Project Type, Not the Drive Type

Before comparing brands or power ratings, define the project.

This is a screening tool, not a final selection. Motor data, load behavior, braking, feedback, environment, automation requirements, and lifecycle still determine the result.

How AC and DC Drive Systems Differ

An AC drive, commonly a VFD in variable speed applications, controls an AC motor by adjusting output frequency and voltage. A typical VFD rectifies incoming AC to DC, stores it on a DC bus, and uses an inverter to create controlled AC output. V/f, sensorless vector, and closed-loop vector control provide different levels of torque response and speed regulation.

A DC drive controls a DC motor through armature and field regulation. Some systems also use encoder or tachometer feedback.

The key issue is compatibility, not which technology sounds newer. A conventional VFD is intended for an AC motor, while a DC drive is built around a DC motor. That difference can affect replacement scope, feedback, braking, wiring, PLC integration, and commissioning.

For detailed VFD operation and sizing, use our What Is a Variable Frequency Drive (VFD)? guide instead of repeating those fundamentals here.

The Factors That Actually Decide AC or DC Drive Selection

1. Start With the Motor

Record whether the motor is AC or DC, then capture the manufacturer, model, rated voltage, rated current, kW or HP, rated speed, and feedback device.

For a replacement project, clear photos of the motor and drive nameplates are often more useful than a request such as "I need a 30 kW drive." Motors with the same nominal power can have different current, voltage, speed, thermal, and overload requirements. For a legacy DC motor, also record armature and field data where available.

2. Define Torque, Speed and Control Requirements

Do not reduce the comparison to "DC has better torque" or "AC is more modern." Define starting torque, continuous torque, minimum and maximum speed, acceleration, deceleration, overload duty, and required speed stability.

A pump is different from a loaded conveyor, extruder, hoist, or winder. Even two machines with the same motor power can need different control methods because the load behaves differently during startup or low speed operation.

Basic V/f control may suit many pumps and fans. Sensorless vector control can provide better torque response. Closed-loop control may be appropriate when tighter low speed performance or feedback based regulation is required.

3. Check Feedback, Braking and Regeneration Early

An existing encoder or tachometer should not be assumed compatible with a proposed replacement. Record the device, signal type, wiring, and how the control system uses it.

Braking can also change the drive architecture. Ask whether the machine reverses, whether the load can drive the motor, whether rapid controlled deceleration is required, and whether the machine returns energy during operation.

Hoists, cranes, elevators, winders, and high inertia equipment need particular attention. Some applications only need a controlled ramp or dynamic braking. Others may require regeneration. A braking resistor and a regenerative system are not the same thing.

4. Compare Energy, Maintenance and Site Conditions at System Level

Avoid statements such as "AC is always more efficient." For pumps and fans, savings often come from matching speed to process demand instead of running at full speed and throttling output mechanically. For other machinery, load profile, operating hours, motor efficiency, control method, and regenerative behavior can change the result.

Maintenance should also be separated into motor and drive requirements. A brushed DC motor includes brushes and a commutator. An AC motor avoids those specific wear parts, but a VFD still depends on electronics, cooling, clean airflow, and suitable operating conditions.

Confirm ambient temperature, altitude where relevant, dust, humidity, enclosure requirements, ventilation, and available panel space. Catalogue ratings do not remove the need to check the real installation environment.

5. Treat the Drive as Part of the Automation System

Check hardwired I/O, analog references, encoder signals, PLC logic, HMI diagnostics, and industrial networks such as EtherNet/IP, PROFINET, or Modbus.

Supporting the same network does not automatically make two drives interchangeable. Control words, option modules, parameter structures, fault handling, and PLC mapping may differ.

Lifecycle also belongs in this check. A technically suitable drive may still be a poor long-term choice if critical spares have long lead times, support is declining, or the machine is expected to operate for many more years.

New Installation vs Legacy DC System

If You Are Designing a New Machine

A new machine gives the engineering team more freedom. Start with the motor and mechanical load, then define duty, speed, torque, overload, braking, control method, feedback, network, environment, and lifecycle requirements.

For many current variable speed applications, an AC motor and VFD are evaluated early. That does not remove the need for application engineering. Hoists, coordinated process lines, high inertia equipment, and demanding low speed loads still require specific control and braking review.

Choose the architecture first. Compare brands and models after the engineering requirements are clear.

If You Already Have a Working DC System

Do not replace a stable DC system only because it is older. If the motor is healthy, production requirements are met, the maintenance team understands the equipment, and critical spares remain available, retention can be rational.

However, keeping the system should include lifecycle planning. Record critical model numbers, identify spare and repair options, monitor recurring failures, and define the conditions that would trigger a replacement or migration study.

If the Existing DC Drive Has Failed

A failed drive normally creates three paths: repair, compatible DC replacement, or AC motor and VFD migration.

A compatible replacement may be attractive when production must restart quickly and the motor, feedback, PLC logic, braking architecture, and machine are still sound. Migration becomes more relevant when failures repeat, parts are difficult to source, motor maintenance is increasing, controls are being modernized, or the machine has a long remaining life.

For the detailed keep, replace, or migrate workflow, use our DC Drive Retrofit Guide. This article should remain the selection guide, while the retrofit guide handles the full conversion process.

Can a VFD Replace a DC Drive?

Usually not as a simple one for one electrical replacement. A conventional industrial VFD controls an AC motor, while a DC drive controls a DC motor using armature and field circuits. Moving to an AC architecture can therefore affect much more than the drive.

This is why a VFD price alone cannot describe the retrofit cost. Compare the complete installed project.

Migration is worth evaluating when lifecycle risk begins to exceed retrofit risk. Repeated failures, long spare lead times, recurring service, a planned shutdown, controls modernization, or long remaining machine life are common triggers.

Selection by Application

Equipment name alone should not decide the drive. Two conveyors can have different starting duties, and two hoists can have very different braking requirements.

Two Practical Selection Scenarios

Scenario 1: A New Pump or Fan System

Start with motor voltage and rated current, then define the operating profile. If process demand changes significantly, variable speed control may be valuable because motor speed can follow demand instead of relying only on mechanical throttling.

Next, choose the required control method and confirm PLC communication, cabinet environment, and project specific harmonic or EMC requirements. An AC motor and VFD may be the resulting architecture, but the decision comes from process data rather than the equipment name.

Scenario 2: An Aging DC Winder or Hoist

Start with the condition of the DC motor and existing drive. Then identify quadrant operation, encoder or tachometer feedback, reversing, regeneration, low speed torque, PLC integration, spare availability, and acceptable downtime.

If a compatible DC replacement can preserve a proven architecture with limited production risk, it may be the practical short-term option. If supportability is declining and the machine still has many years of service ahead, the same data can support an AC migration study.

Compare Total Cost of Ownership, Not Only Purchase Price

A lower drive price does not always mean a lower project cost. Compare hardware, engineering, installation, commissioning, downtime, maintenance, spare parts, and lifecycle risk.

For a DC to AC conversion, hardware may include a new motor, VFD, braking equipment, feedback, filters, protection components, and panel modifications. Engineering can include drawings, PLC and HMI changes, testing, and commissioning.

Downtime deserves separate attention. A technically attractive retrofit may still be a poor business decision if the shutdown is longer than production can tolerate. A planned rebuild may create a much better modernization window.

A simple project framework is:

TCO = Hardware + Engineering + Installation + Downtime + Maintenance + Lifecycle Risk

This is a decision framework, not an accounting standard.

What Information Should You Prepare Before Selecting a Drive?

A useful supplier inquiry should contain enough information to eliminate unsuitable options.

If an AC solution is already appropriate, continue to our Variable Frequency Drive category to compare industrial drive families. For detailed sizing and control methods, use the VFD guide. If the project involves an installed DC machine, use the DC Drive Retrofit Guide before treating it as a simple replacement.

For SZCT Automation, drive and motor nameplates, application details, voltage and current, PLC or network requirements, quantity, and destination country provide a much stronger starting point for product evaluation than kW or HP alone.

Common Selection Mistakes to Avoid

Selecting by kW or HP alone is the most common mistake. Rated current, voltage, overload, speed range, control method, braking, environment, and automation compatibility can all change the correct choice.

It is also risky to assume that every old DC system should be converted. A stable legacy system may still be economical to support. The opposite assumption can be just as costly. Repeated failures and shrinking spare availability may eventually make a planned migration more sensible than repeated emergency repairs.

Finally, do not treat a VFD as a drop-in DC replacement or assume that two drives using the same protocol will behave identically in the PLC. Compatibility should be verified at the motor, feedback, braking, control, network, and machine level.

Final Decision Checklist

Keep the DC system when the machine is reliable, the motor is healthy, critical spares are manageable, maintenance remains acceptable, and migration risk is higher than the expected benefit.

Choose a compatible DC replacement when the architecture is proven, production change must be minimized, and the electrical, feedback, control, braking, and mechanical requirements can be verified.

Evaluate an AC motor and VFD migration when failures repeat, supportability is declining, maintenance is increasing, controls are being modernized, or the machine has a long remaining production life.

For a new machine, define the load and control requirements first. Then select the motor and drive architecture, followed by the brand, model, and options.

FAQ





What is the main difference between an AC drive and a DC drive?

An AC drive controls an AC motor, commonly by changing output frequency and voltage. A DC drive controls a DC motor using armature and field control. In practice, load duty, torque, braking, feedback, automation integration, maintenance, and lifecycle also matter.

Is an AC drive the same as a VFD?

In many industrial discussions, "AC drive" refers to a VFD, but the terms are not universally identical. A VFD specifically controls AC motor speed by varying output frequency and voltage.

Can a VFD run a DC motor?

A conventional industrial VFD is designed for an AC motor, so it should not be treated as a direct controller for a standard DC motor. A DC to AC conversion normally requires system level evaluation.

Which drive is better for low speed torque?

There is no universal winner. The result depends on the motor, control method, feedback, speed range, continuous torque, starting torque, and overload duty. Modern vector controlled AC drives can provide strong low speed performance, while many DC systems remain effective in demanding applications.

Which is more energy efficient, an AC drive or a DC drive?

Compare the complete motor driven system. Load profile, operating hours, motor efficiency, speed range, control method, throttling losses, and regenerative operation can all affect energy use.

What should I send a supplier for a drive quotation?

Send the complete existing drive model, clear drive and motor nameplate photos, voltage and rated current, machine application, speed and load requirements, braking information, PLC or network details, quantity, and destination country.

Conclusion

The best AC or DC drive decision starts with the machine, not with a preferred technology. For a new installation, define motor, load, speed, torque, braking, control, network, and environment before comparing models. For an existing DC system, first decide whether the real project is maintenance, replacement, or migration.

If the DC system remains reliable and supportable, keeping it may be the lowest risk choice. If failures and lifecycle problems are increasing, an AC motor and VFD migration may deserve a structured engineering review.

For product evaluation or a quotation, send SZCT Automation the existing drive model, motor nameplate, application details, voltage and current, PLC or network requirements, quantity, and destination country. That information gives the technical team a stronger starting point for identifying suitable options.
