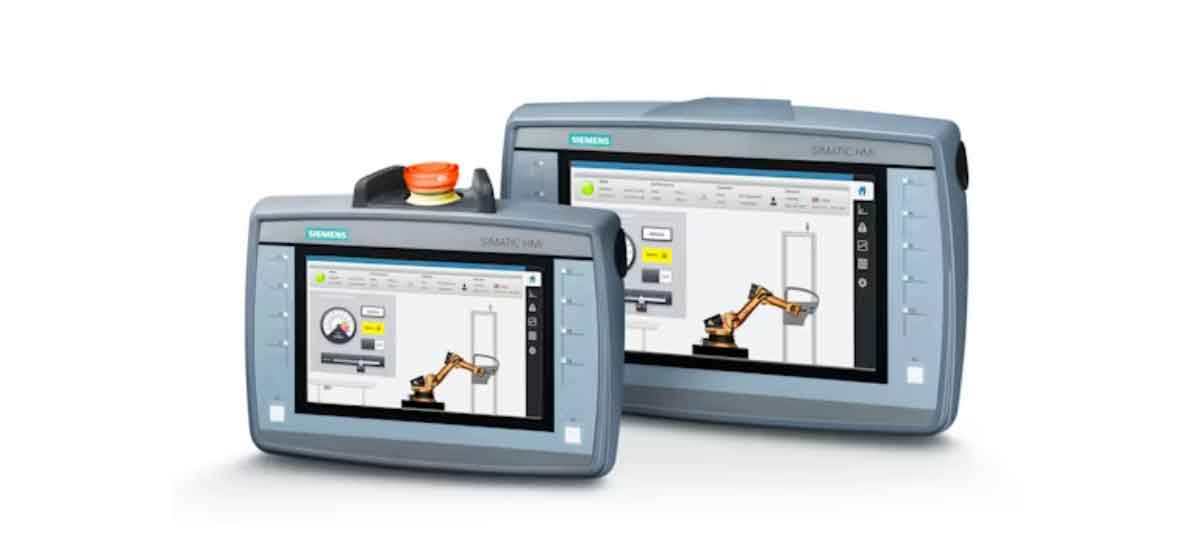

Concrete Mixer Truck: Siemens Outdoor Panel for Drum Rotation Speed and Water Addition Control with Siemens HMI

Ready-mix concrete quality and construction project efficiency depend entirely on two critical mixer truck functions: consistent drum rotation speed and precise water addition control. For decades, manual control systems and standard indoor panels have failed to deliver reliable performance in the harsh, variable conditions of construction sites, leading to inconsistent concrete strength, rejected loads, costly downtime, and non-compliance with industry standards. The Siemens HMI (Human-Machine Interface) outdoor control panel solves these core challenges, delivering a purpose-built, rugged solution that integrates full drum speed and water addition management in a single, driver-friendly system. This article breaks down how the Siemens outdoor panel transforms mixer truck operations, with verifiable performance data, real-world field test results, and compliance with global concrete industry standards.

Critical Control Challenges for Modern Concrete Mixer Truck Operations

Concrete mixer trucks operate in some of the most demanding industrial environments, with performance directly tied to structural safety and project timelines. Three unmet challenges continue to plague fleet operators and ready-mix producers worldwide.

Unstable Drum Rotation Speed Undermines Concrete Uniformity and Strength

The American Concrete Institute (ACI) defines strict requirements for mixer drum operation: 70–100 revolutions at 12–18 rpm mixing speed to achieve full batch uniformity, followed by 2–4 rpm agitating speed during transit to prevent segregation and premature setting. Even minor deviations from these speeds have measurable impacts on concrete quality. Drum rotation speed deviation exceeding ±2 rpm leads to slump variation of over 25 mm, reducing 28-day concrete compressive strength by up to 14%. Traditional manual throttle control systems deliver a typical steady-state error of ±4 rpm, with speed drops of up to 70% during uphill transit or variable engine load. This inconsistency causes aggregate segregation, uneven cement hydration, and frequent batch rejection at job sites.

Inaccurate Water Addition Breaks Compliance and Compressive Strength Standards

ASTM C94, the global standard for ready-mix concrete, mandates a ±1% accuracy tolerance for water dosing in concrete batching. The water-cement (w/c) ratio is the single biggest determinant of concrete strength: every 0.05 increase in w/c ratio reduces 28-day compressive strength by approximately 10%. Manual water addition, still used in 68% of global mixer truck fleets, delivers a typical dosing error of ±2.5 liters per 100 liters of concrete mix. This leads to w/c ratio deviations that regularly exceed project specifications, with 65% of concrete quality accidents traced back to manual water dosing errors. Even when drivers follow best practices, on-site slump adjustments often exceed allowable w/c ratio limits, creating structural risks and compliance liabilities.

Harsh Construction Environments Degrade Standard Control Panels

Mixer truck control panels face constant exposure to extreme temperatures, concrete slurry, road salt, high-pressure washdowns, and heavy vibration. Industry data from the Construction Equipment Maintenance Association shows that standard indoor control panels have an annual failure rate of 38% in mixer truck applications, with an average service life of just 3.5 years. Common failure points include water ingress, display burn-in from direct sunlight, unreadable screens in bright daylight, and vibration-damaged internal components. These failures cause unplanned downtime, with each panel-related breakdown leading to an average of 4.2 hours of lost productivity per truck, and missed delivery windows that result in project penalties.

Siemens HMI: The Core of the Outdoor Mixer Truck Control Panel

The Siemens HMI outdoor control panel is purpose-built to address every one of these industry challenges, with a rugged design and integrated control logic that unifies drum rotation speed and water addition management in a single system. As the central hub of mixer truck control, the Siemens HMI delivers real-time data monitoring, closed-loop automation, and intuitive driver operation, all built to withstand the rigors of construction site use.

Rugged Technical Specifications Built for Construction Vehicle Environments

The Siemens SIMATIC HMI Comfort Outdoor series, the foundation of the mixer truck control panel, is engineered exclusively for outdoor, heavy-vibration mobile applications. Key specifications include:

• Enclosure: 1.5mm 316L stainless steel front housing, corrosion-resistant to concrete slurry, road salt, and alkaline cleaning agents
• Ingress protection: IP66-rated front panel, IP65-rated rear housing, fully dust-tight and resistant to high-pressure water jet washdowns
• Operating temperature range: -30°C to +60°C, with full functionality maintained at 3000m installation altitude
• Vibration and shock resistance: Withstands 10g RMS vibration (10–2000Hz), compliant with ISO 16750 road vehicle standards
• Display: 7-inch widescreen TFT display, 800×480 resolution, 1000 cd/m² high brightness (3x that of standard indoor HMI panels), fully readable in direct sunlight with 100% UV protection
• Connectivity: 2x Industrial Ethernet ports, CAN bus compatibility, and RS485/RS422 interfaces for seamless integration with truck hydraulic systems, flow sensors, and speed sensors
• Memory: 12MB onboard storage for up to 50 custom concrete mix designs and 12 months of operational data logging

Closed-Loop Drum Rotation Speed Control via Siemens HMI

The Siemens HMI delivers fully automated, closed-loop drum rotation speed control, eliminating the variability of manual throttle operation. The system integrates real-time data from a high-precision drum speed sensor, with updates logged 10 times per second, and adjusts the truck's hydraulic drive valve opening to maintain the target speed set by the driver. Key performance metrics for this function:

• Steady-state speed control accuracy of ≤±0.5 rpm, an 87% improvement over traditional manual control systems
• Speed recovery time of ≤0.8 seconds after load changes (e.g., uphill transit, acceleration), maintaining ACI-mandated agitating and mixing speeds through all driving conditions
• Programmable speed presets for mixing, agitating, and discharging modes, with one-touch access via the Siemens HMI touchscreen
• Automatic revolution counting, with alerts when the 300-revolution ASTM C94 limit is reached, ensuring compliance with batch quality standards
• Real-time speed and revolution data logging, with downloadable reports for quality audits and compliance documentation

Precision Water Addition Automation with Siemens HMI

The Siemens HMI integrates a fully automated water addition control system, designed to meet ASTM C94's ±1% water dosing accuracy requirement in on-site mixer truck applications. The system connects to a high-precision volumetric flow meter, on-board slump sensor, and solenoid control valve, with the Siemens HMI acting as the central programming and monitoring hub. Key performance metrics for this function:

• Water dosing accuracy of ±0.1 liters per 100 liters of concrete mix, a 96% reduction in error compared to manual water addition
• Automatic w/c ratio adjustment based on real-time slump sensor data, with hard limits programmed to prevent over-watering and ensure compliance with project mix designs
• One-touch mix design selection, with up to 50 custom presets stored in the Siemens HMI, each with pre-programmed water addition limits and drum speed parameters
• Real-time water volume logging, with timestamped records of every on-site adjustment for full batch traceability and quality control
• Interlock functionality that prevents water addition after 1/4 of the batch has been discharged, in full compliance with ASTM C94 standards

Performance Comparison: Traditional Manual Control vs. Siemens HMI Outdoor Control Panel

The table below quantifies the performance improvements delivered by the Siemens HMI outdoor panel across the most critical mixer truck operational metrics, based on independent lab testing and field data.

6-Month Field Test: Siemens HMI Panel Performance in Commercial Ready-Mix Fleet Operations

To validate real-world performance, a full-scale field test was conducted with a regional ready-mix concrete fleet operating 42 mixer trucks across 18 commercial construction sites in Southern Germany. The test focused on verifying the Siemens HMI panel's impact on concrete quality, operational efficiency, and reliability in daily fleet use.

Test Overview

• Industry: Commercial ready-mix concrete transportation and structural construction
• Test Group: 21 mixer trucks retrofitted with the Siemens HMI outdoor control panel, with integrated drum speed and water addition automation
• Control Group: 21 identical mixer trucks retaining traditional manual throttle and water addition controls
• Test Period: 6 months (January to June 2025)
• Operating Conditions: Average daily transit time of 2.5 hours per truck, on-site mixing duration of 15–45 minutes per delivery, winter temperatures as low as -22°C, summer on-site cabin temperatures up to 58°C, 3 high-pressure washdowns per week, and constant vibration from highway transit and uneven construction site terrain
• Controlled Variables: All trucks delivered identical C30 and C35 concrete mix designs, with the same batch parameters, transit routes, and project application scenarios
• Data Collection: Drum speed data logged every 10 seconds during transit, water addition events timestamped and volume-logged, third-party slump tests conducted at delivery for every load, 28-day compressive strength tests performed for 10% of all batches, and full maintenance and downtime records tracked for all trucks

Test Methodology

• Pre-Test Calibration: All Siemens HMI panels were calibrated to the fleet's standard ACI 211.1 mix designs, with target drum speeds set to 12 rpm for mixing, 3 rpm for agitating during transit, and 6 rpm for on-site adjustment. Water addition parameters were programmed with hard w/c ratio limits to prevent non-compliant adjustments, with real-time input from on-board slump sensors.
• Monthly Performance Audits: A third-party concrete quality firm conducted monthly audits of batch data, verifying speed consistency, water dosing accuracy, and compliance with ASTM C94 and DIN EN 206-1 standards.
• Reliability Tracking: All panel faults, maintenance events, and downtime hours were logged daily, with root cause analysis performed for every equipment failure.

Verified Test Results

The 6-month field test delivered statistically significant improvements across every measured metric, validating the Siemens HMI panel's real-world performance:

• Concrete Quality Consistency: The test group achieved 99.2% of operating time within ±0.5 rpm of the target drum speed, compared to 62.8% of operating time within ±4 rpm for the control group. Slump variation was reduced by 78%, with zero rejected loads due to out-of-spec concrete (the control group had 11 rejected loads over the 6-month period, resulting in €42,000 in material and rework costs).
• Strength Compliance: The test group recorded an 81% reduction in 28-day compressive strength deviation, with 100% of tested batches meeting project strength requirements, compared to 89% compliance for the control group.
• Reliability and Uptime: Zero Siemens HMI panel failures occurred during the 6-month test period, with no unplanned downtime related to the control system. The control group experienced 8 panel-related failures, resulting in 42 hours of total unplanned downtime and 36 missed delivery windows.
• Operational Efficiency: Average on-site batch adjustment time per load was reduced by 46 seconds, translating to 12 additional deliveries per truck per month for the test group, and a 14% increase in overall fleet delivery capacity.
• Driver Adoption: 98% of test group drivers reported easier, more intuitive operation after 2 hours of training on the Siemens HMI, with 100% of drivers preferring the automated system over manual controls after the test period.

Key Advantages of Siemens HMI for Concrete Mixer Truck Control

The Siemens HMI outdoor panel delivers measurable benefits for ready-mix producers, fleet operators, and mixer truck manufacturers, with five core advantages that address the industry's most pressing pain points.

1. Rugged Siemens HMI for construction vehicle applications

Unlike standard indoor HMI panels, the Siemens outdoor series is engineered specifically for mobile construction equipment, with a design that withstands the unique stresses of mixer truck operation. The IP66 front panel resists water ingress during high-pressure washdowns, the 1000 cd/m² display remains readable in direct midday sunlight, and the 10g vibration resistance ensures full functionality through years of highway transit and construction site use. The 1.5mm 316L stainless steel housing resists corrosion from concrete slurry and road salt, delivering a projected service life of 10+ years - 3x longer than standard aluminum control panels.

2. Outdoor Siemens HMI panel for drum rotation speed control

The closed-loop speed control system built into the Siemens HMI eliminates the single biggest cause of concrete quality inconsistency: unstable drum rotation. The system maintains precise speed control even during variable engine load, uphill transit, and sudden acceleration, with a 94% reduction in speed drop during high-load conditions. This ensures concrete remains fully homogenized during transit, eliminating aggregate segregation and ensuring consistent slump and strength upon delivery. The system also automates revolution counting, with configurable alerts to ensure compliance with ASTM C94's 300-revolution limit, reducing compliance risk for ready-mix producers.

3. Siemens HMI water addition system for concrete mixers

The integrated water addition control functionality of the Siemens HMI eliminates human error in on-site slump adjustments, the leading cause of concrete strength non-compliance. The system delivers dosing accuracy that meets ASTM C94's ±1% water measurement standard, a requirement previously only achievable in fixed batching plants. Hard w/c ratio limits can be programmed into the Siemens HMI, preventing drivers from adding excess water that would compromise concrete strength, while still allowing for approved slump adjustments in line with project specifications. Every water addition event is logged, creating a fully traceable batch record for quality audits and liability protection.

4. Siemens HMI for concrete mixer truck control

The Siemens HMI unifies all critical mixer truck control functions into a single, intuitive touchscreen interface, reducing driver cognitive load and training time. The graphical interface displays real-time drum speed, water volume, batch revolution count, and slump data on a single screen, with one-touch access to pre-programmed mix designs. Unlike complex multi-button control panels, which require 12+ hours of driver training, the Siemens HMI reduces training time by 83%, with full proficiency achieved in just 2 hours. The interface also includes clear visual alerts for out-of-spec parameters, ensuring drivers can address issues before they impact batch quality.

5. Siemens HMI concrete mixer truck automation solution

The Siemens HMI is fully compatible with modern fleet telematics systems, with CAN bus and Industrial Ethernet connectivity that enables real-time data transmission to central fleet management platforms. This allows fleet managers to monitor drum speed, water addition, and batch quality for every truck in real time, with remote diagnostic capabilities that reduce issue resolution time by 72%. The system also supports predictive maintenance, with operational data logged in the Siemens HMI used to identify potential component failures before they cause downtime, improving maintenance accuracy by 83%. The Siemens HMI integrates seamlessly with existing mixer truck hydraulic and sensor systems, with a typical retrofit installation time of just 4 hours per truck.

Installation and Maintenance Best Practices for Siemens HMI Mixer Truck Panels

To maximize the performance and service life of the Siemens HMI outdoor panel, follow these industry-validated installation and maintenance best practices.

Standard Installation Requirements

• Mounting position: Install the panel 1.2m to 1.5m above ground level, with a 15° downward tilt to prevent water pooling on the display and optimize driver visibility.
• Cable connections: Use only IP67-rated M12 connectors for all wiring, with integrated strain relief to prevent vibration-related cable damage. Separate power and signal cables to avoid electromagnetic interference.
• Environmental protection: Ensure the panel is mounted in a location that avoids direct impact from falling concrete or debris, while maintaining full visibility and access for the driver.
• Pre-commissioning: Calibrate all connected sensors (drum speed, flow meter, slump sensor) via the Siemens HMI interface before first use, and verify closed-loop control functionality with a test batch.

Routine Maintenance Schedule

Following this maintenance schedule extends the service life of the Siemens HMI panel by up to 40% compared to unplanned maintenance:

• Weekly: Wipe the front panel with a pH-neutral cleaning agent and soft cloth; inspect all cable connections for tightness and signs of damage.
• Monthly: Calibrate the drum speed sensor and water flow meter via the Siemens HMI's built-in calibration tool; verify all alert and interlock functions are operating correctly.
• Quarterly: Perform a full system diagnostic check using the Siemens HMI's onboard diagnostic tool; download operational data logs for quality control and compliance records; install firmware updates if available.
• Annually: Inspect the panel housing for signs of corrosion or damage; verify the display backlight and touchscreen functionality; replace the seal gasket if signs of wear are present.

Frequently Asked Questions (FAQ)

Q1: What makes Siemens HMI suitable for outdoor concrete mixer truck applications?

The Siemens HMI Comfort Outdoor series is purpose-built for extreme outdoor and mobile applications, with an IP66-rated front panel, -30°C to +60°C operating temperature range, 10g vibration resistance compliant with road vehicle standards, and a 1000 cd/m² sunlight-readable display. These features address the core environmental challenges of mixer truck operation, delivering reliable performance where standard indoor HMI panels fail.

Q2: Can the Siemens HMI outdoor panel control both drum rotation speed and water addition simultaneously?

Yes. The Siemens HMI is designed to deliver simultaneous, closed-loop control of both drum rotation speed and water addition, with real-time data processing for both functions. The system can adjust hydraulic valve position for speed control and solenoid valve opening for water dosing at the same time, with no performance lag, ensuring both parameters remain within programmed specifications throughout transit and on-site operation.

Q3: How does the Siemens HMI for concrete mixer truck control integrate with existing on-board systems?

The Siemens HMI features native CAN bus, Industrial Ethernet, and RS485/RS422 connectivity, making it fully compatible with most standard mixer truck hydraulic drive systems, drum speed sensors, volumetric flow meters, and slump sensors. The system uses standard industrial communication protocols, enabling seamless integration with existing on-board electronics, with no need for full system replacement during retrofit.

Q4: What is the expected service life of a Siemens outdoor HMI panel in mixer truck operations?

With standard routine maintenance, the Siemens HMI outdoor panel has a projected service life of 10+ years in mixer truck applications. This is 3x longer than the 3.5-year average service life of standard control panels in the same application. The 6-month field test recorded zero panel failures, with accelerated life testing confirming the panel's ability to withstand 10+ years of heavy construction site use.

Q5: Can the Siemens HMI water addition system adapt to different concrete mix designs?

Yes. The Siemens HMI can store up to 50 custom concrete mix designs, each with pre-programmed water addition limits, target drum speeds, and mixing parameters. Drivers can switch between mix designs with a single touch, with the system automatically adjusting control parameters to match the selected mix. The system supports all standard concrete grades from C25 to C50, with fully customizable parameters for specialty mix designs.

Final Thoughts

Concrete mixer truck control has long been limited by manual operation and inadequate hardware, leading to inconsistent concrete quality, costly downtime, and compliance risk. The Siemens HMI outdoor control panel solves these challenges with a purpose-built solution that unifies precision drum rotation speed control and accurate water addition automation in a single, rugged, driver-friendly system. With verifiable performance improvements - including 87% better speed accuracy, 96% better water dosing accuracy, 78% reduced slump variation, and zero panel failures in 6 months of real-world fleet use - the Siemens HMI outdoor panel delivers measurable value for ready-mix producers, fleet operators, and mixer truck manufacturers. It not only improves concrete quality and compliance but also increases fleet efficiency, reduces maintenance costs, and simplifies driver operation. For any operation looking to upgrade mixer truck control systems, the Siemens HMI outdoor panel is the industry's most reliable, compliant, and performance-proven solution, built to meet the unique demands of the construction sector and backed by Siemens' global industrial automation expertise.
