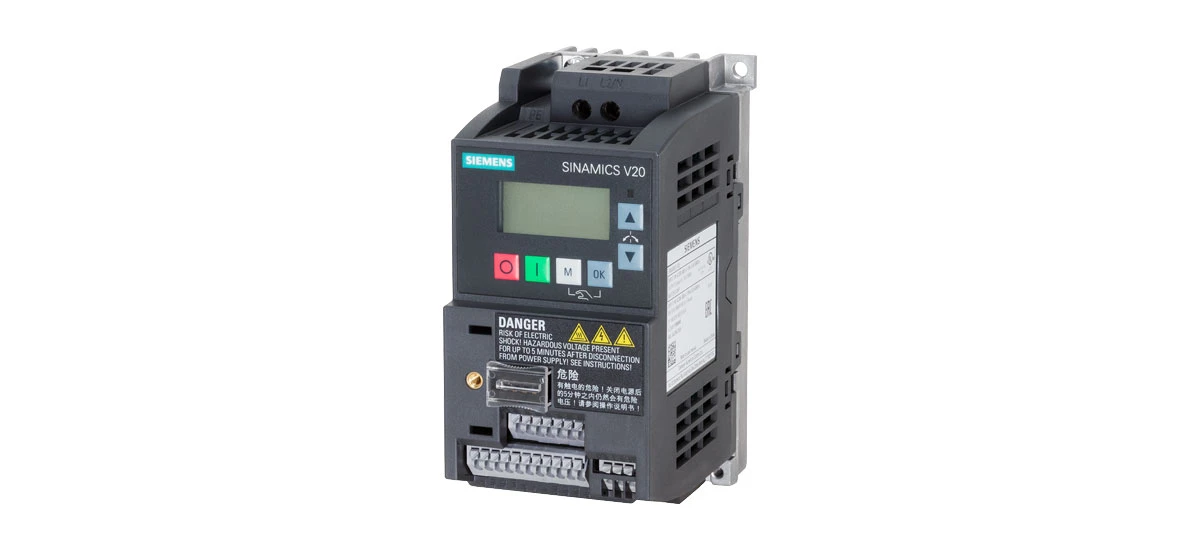

In the busy world of factories and industrial work, machines rely on devices like the Sinamics 6SL3210-5BB12-5UV1 to keep running smoothly. This hardworking device controls motors, making sure they spin at the right speed and stay safe from harm. But even the best devices can hit a bump now and then. When the Sinamics 6SL3210-5BB12-5UV1 has a problem, it doesn't stay quiet-it shows fault codes on its screen. These codes are like little hints, but if you don't know what they mean, they can feel confusing.
That's where this guide comes in. Whether you're a student learning about industrial equipment, a worker in a factory, or someone who just wants to understand how to fix common issues, knowing how to read these fault codes and solve the problems can save time, money, and a lot of stress. Let's dive into the world of Sinamics 6SL3210-5BB12-5UV1 troubleshooting, so you can keep this important device-and the machines it controls-working their best.
Introduction to Sinamics 6SL3210-5BB12-5UV1 Troubleshooting
In factories and industrial settings, the Sinamics 6SL3210-5BB12-5UV1 is a hard - working device that helps control motors. It keeps machines running at the right speed and protects them from harm. But sometimes, even the reliable Sinamics 6SL3210-5BB12-5UV1 can have problems. When it does, it shows fault codes on its display. These codes are like little messages that tell us what's wrong. Knowing how to read these codes and fix the issues is key to keeping the Sinamics 6SL3210-5BB12-5UV1 and the machines it controls working well. In this blog, we'll look at common fault codes of the Sinamics 6SL3210-5BB12-5UV1, what causes them, and how to solve them. We'll also share some tips for basic troubleshooting and preventing problems.
Common Fault Codes of Sinamics 6SL3210-5BB12-5UV1 and Their Solutions
Fault Code F0001: Overcurrent
One of the common fault codes you might see on the Sinamics 6SL3210-5BB12-5UV1 is F0001, which means there's too much electric current flowing through the device. This can happen for a few reasons. Maybe the motor is short - circuited, where wires inside the motor are touching when they shouldn't. Or the motor is carrying a load that's too heavy, making it work harder than it should. Another possibility is that the wiring between the Sinamics 6SL3210-5BB12-5UV1 and the motor is damaged or not connected properly.
To fix this, first, turn off the Sinamics 6SL3210-5BB12-5UV1. Then, check the motor. Look for any signs of damage, like burnt wires. If you find a short circuit, you might need to repair or replace the motor. Next, check the load on the motor. If it's too heavy, reduce it. For example, if a conveyor belt controlled by the motor is carrying too many boxes, remove some. Finally, inspect the wiring. Make sure all connections are tight and the wires aren't frayed. This is a key part of solving Sinamics 6SL3210-5BB12-5UV1 errors related to overcurrent.
Fault Code F0002: Overvoltage
F0002 on the Sinamics 6SL3210-5BB12-5UV1 indicates that the voltage (the strength of the electric current) is too high. This often happens because of problems with the power supply. Maybe the main power coming into the factory is fluctuating, sending too much voltage to the Sinamics 6SL3210-5BB12-5UV1. Or there's a problem with the device that's supposed to regulate the voltage.
To solve this, start by checking the power supply. Use a voltage meter to see if the incoming voltage is within the range that the Sinamics 6SL3210-5BB12-5UV1 can handle (you can find this range in the user manual). If the voltage is too high, contact your power company to fix the issue. If the power supply is normal, check the voltage regulator connected to the Sinamics 6SL3210-5BB12-5UV1. It might need to be adjusted or replaced. This is an important step in the Sinamics 6SL3210-5BB12-5UV1 troubleshooting guide for overvoltage.
Fault Code F0003: Undervoltage
When the Sinamics 6SL3210-5BB12-5UV1 shows F0003, it means the voltage is too low. This is the opposite of F0002. The causes can include a weak power supply, loose connections in the wiring, or a problem with the circuit breaker that's supplying power to the device.
First, check the power supply with a voltage meter. If the voltage is below the required range, the power company might need to fix it. Then, check all the connections between the power supply and the Sinamics 6SL3210-5BB12-5UV1. Tighten any loose wires. Also, check the circuit breaker. If it's tripped (turned off), reset it. If it keeps tripping, there might be a problem with the breaker, and it might need to be replaced. Knowing how to handle F0003 is part of dealing with Sinamics 6SL3210-5BB12-5UV1 common issues.
Fault Code F0011: Overheating
F0011 on the Sinamics 6SL3210-5BB12-5UV1 is a warning that the device is getting too hot. This can be dangerous because overheating can damage the internal parts. The reasons for overheating might be that the device is in a place with poor ventilation, so the heat can't escape. Or there's a lot of dust and dirt covering the device, blocking the airflow. Another reason could be that the cooling fan (if it has one) isn't working.
To solve this, first, turn off the Sinamics 6SL3210-5BB12-5UV1 and let it cool down. Then, check the area around it. Make sure there's enough space for air to flow. Remove any objects that are blocking the vents. Next, clean the device with a soft brush to remove dust and dirt. If it has a cooling fan, check if it's working. If not, the fan might need to be repaired or replaced. This is a crucial solution for Sinamics 6SL3210-5BB12-5UV1 overheating issues.
Fault Code F0022: Motor Stall
F0022 means the motor controlled by the Sinamics 6SL3210-5BB12-5UV1 has stalled, which means it's not moving even though it's getting power. This can happen if the motor is stuck, maybe because something is blocking it. Or the load is so heavy that the motor can't move it.
First, check the motor and the machine it's connected to. Look for any obstacles that are stopping the motor from moving. Remove them if you find any. Then, check the load. If it's too heavy, reduce it. For example, if a motor is supposed to lift a heavy object but can't, try lifting a lighter one first to see if that works. If the motor still stalls, there might be a problem with the motor itself, and you might need to have it checked by a professional. This is part of fixing Sinamics 6SL3210-5BB12-5UV1 motor - related errors.
Basic Troubleshooting Steps for Sinamics 6SL3210-5BB12-5UV1
Step 1: Note the Fault Code
When the Sinamics 6SL3210-5BB12-5UV1 has a problem, the first thing to do is write down the fault code that's displayed. The code is like a clue that tells you where to start looking. Without knowing the code, it's hard to figure out what's wrong. So, always make sure to note it down before doing anything else. This is the first step in any Sinamics 6SL3210-5BB12-5UV1 troubleshooting guide.
Step 2: Power Cycle the Device
Sometimes, a simple power cycle can fix the problem. Turn off the Sinamics 6SL3210-5BB12-5UV1, wait for about 30 seconds, and then turn it back on. This can reset the device and clear any temporary errors. It's a quick and easy step that's worth trying before moving on to more complex solutions. Many times, this simple action can get the Sinamics 6SL3210-5BB12-5UV1 working again.
Step 3: Check Connections
Loose or damaged connections are a common cause of problems with the Sinamics 6SL3210-5BB12-5UV1. After noting the fault code and power cycling, check all the connections. Look at the wires connecting the device to the power supply, the motor, and any other components. Make sure they are tight and not damaged. If you find a loose wire, tighten it. If a wire is damaged, replace it with a new one. This step can solve many issues related to the Sinamics 6SL3210-5BB12-5UV1.
Step 4: Refer to the User Manual
The user manual for the Sinamics 6SL3210-5BB12-5UV1 is a great resource. It has detailed information about all the fault codes, their causes, and specific solutions. If you're not sure what to do after the first three steps, look up the fault code in the manual. It will guide you through the process of fixing the problem. Keep the manual nearby so you can access it quickly when needed.
Tips for Preventing Issues with Sinamics 6SL3210-5BB12-5UV1
Regular Cleaning
Dust and dirt can build up on the Sinamics 6SL3210-5BB12-5UV1 over time, leading to overheating and other problems. Make it a habit to clean the device regularly. Use a soft brush or a dry cloth to wipe away dust from the vents and the surface. This simple task can prevent many common issues and keep the Sinamics 6SL3210-5BB12-5UV1 running smoothly.
Inspect Wiring Periodically
Check the wiring connected to the Sinamics 6SL3210-5BB12-5UV1 every few months. Look for signs of wear and tear, like frayed wires or loose connections. Fixing these issues before they cause a fault can save you time and trouble. Regular inspections are an important part of maintaining the Sinamics 6SL3210-5BB12-5UV1.
Monitor Load and Voltage
Keep an eye on the load that the motor is carrying and the voltage supplied to the Sinamics 6SL3210-5BB12-5UV1. Make sure the load doesn't exceed the motor's capacity, and the voltage stays within the recommended range. This can prevent overcurrent, overvoltage, and undervoltage faults. Using tools like voltage meters to monitor these factors can help you catch problems early.
Proper Ventilation
Ensure that the Sinamics 6SL3210-5BB12-5UV1 is placed in a well - ventilated area. Good airflow helps keep the device cool, preventing overheating. Avoid placing objects in front of the vents, and make sure there's enough space around the device for air to circulate. This is a simple but effective way to prevent F0011 and other overheating - related faults.
Conclusion
Troubleshooting the Sinamics 6SL3210-5BB12-5UV1 doesn't have to be difficult when you know how to read fault codes and what steps to take. By understanding common codes like F0001, F0002, F0003, F0011, and F0022, and their solutions, you can quickly fix issues and get the device back to work. Following basic troubleshooting steps, like noting the code, power cycling, checking connections, and referring to the manual, can make the process easier.
Preventing issues is also key. Regular cleaning, inspecting wiring, monitoring load and voltage, and ensuring proper ventilation can keep the Sinamics 6SL3210-5BB12-5UV1 in good condition. With these tips, you can keep the Sinamics 6SL3210-5BB12-5UV1 running smoothly, ensuring that the machines it controls work efficiently in your factory or industrial setting. Remember, knowing how to handle problems with the Sinamics 6SL3210-5BB12-5UV1 is an important skill for keeping production on track.
