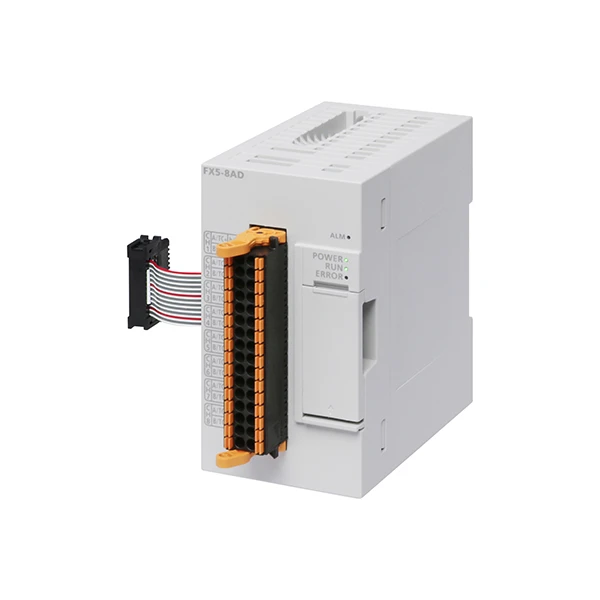

Mitsubishi PLC Module FX5-8AD
Brand：Mitsubishi
Model：FX5-8AD
Inventory situation: Goods are available in stock.
Product Precautions
When working with the Mitsubishi FX5-8AD analog input module, it is essential to follow proper safety and operational guidelines to ensure optimal performance and longevity of the device. Proper precautions help prevent damage, faults, and incorrect readings in your automation system.
Important Precautions for Mitsubishi FX5-8AD Modules
Correct Wiring and Connection
Ensure that all wiring is performed according to the Mitsubishi FX5-8AD user manual and wiring diagrams. Use appropriate gauge wires and double-check polarity to prevent input signal errors or damage to the module. Using shielded cables can minimize electromagnetic interference (EMI) in industrial environments.
Power Supply Voltage Range
Verify that the power supply voltage falls within the recommended range specified by Mitsubishi for the FX5-8AD. Applying voltage outside the rated range can cause malfunction or permanent damage to the analog input module.
Avoid Electrical Noise Interference
Industrial environments often contain high levels of electrical noise that can affect analog signal accuracy. To ensure precise readings, implement proper grounding techniques, utilize noise filters, and maintain sufficient separation between analog and high-power electrical cables.
Input Signal Compatibility
Make sure the analog signals input to the Mitsubishi FX5-8AD are within the supported voltage or current ranges, typically 0-10V or 4-20mA. Exceeding the specified input range can result in incorrect readings or damage to the module.
Regular Calibration and Testing
Periodically calibrate the Mitsubishi FX5-8AD to maintain measurement accuracy, especially in critical automation applications. Conduct routine testing to verify proper operation and data integrity.
Specifications
| Applicable PLC Series | FX5 Series |
| Weight | 280g |
| Dimensions | 90mm × 87mm × 75mm (W × H × D) |
| Installation | Standard DIN Rail (TS35) Mounting |
| Number of Channels | 8 Independent Channels |
| High-Speed Mode | 2.5ms per Channel |
| Standard Mode | 5ms per Channel |
| Communication Interface | FX5 Expansion Bus |
Product features
The FX2N-8AD is an FX2N series extension module that can be easily integrated with Mitsubishi FX2N and FX2NC series PLCs. It uses DIN rail installation, which allows for side-by-side mounting with other modules, making the installation process simple and fast. In addition, users can simply configure the input channel signal types using the PLC's specific data register (D8116), allowing for more flexible setup.
In high-speed mode, a single channel converts in around 2.5ms; even in standard mode, processing all eight channels takes roughly 5ms. This is twice as fast as the previous generation FX2N-8AD, making it ideal for high-real-time applications like servo motor dynamic control and vibration detection. Actual data shows that when monitoring the temperature of a chemical reaction vessel, it can detect current fluctuations of 0.01mA, which corresponds to a pressure change of 0.05%.
The Mitsubishi FX5-8AD hardware filter removes high-frequency noise with a default of 0.5ms, while the software filter can be adjusted from 0 to 63ms, effectively suppressing power frequency interference and ensuring signal stability in environments with high electromagnetic interference, such as steel mills.
