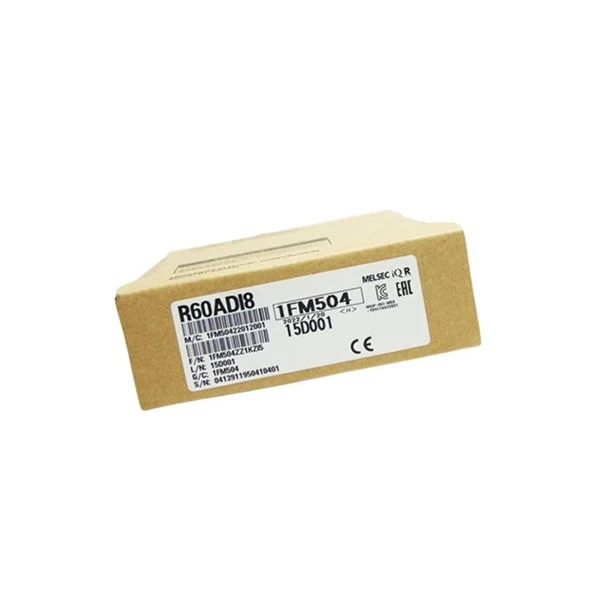

Mitsubishi R60ADI8

Brand: Mitsubishi
Model: R60ADI8

Inventory situation: Goods are available in stock.

Product features

Mitsubishi R60ADI8 is an eight-channel analog current input module from Mitsubishi Electric's MELSEC iQ-R series. Mitsubishi R60ADI8 is a popular industrial component for manufacturing, process control, and other applications due to its consistent performance and ease of installation. The Mitsubishi R60ADI8 analog input module (material number 279559) fulfills numerous international certification standards, including UL, cUL, CE, and RoHS, ensuring its safety and usefulness in worldwide industrial markets.

The Mitsubishi R60ADI8 8-channel current input module includes 8 separated channels, which prevents interference and ensures signal accuracy. The input type is DC current, and the range covers 0~20 mA DC, 4~20 mA DC, 4~20 mA DC (extended mode), and a user-defined range. This allows it to adapt to diverse current signal collection requirements in industrial production. The Mitsubishi R60ADI8 has an input resistance of 250 ohms, which helps to maintain reliable signal transmission, and an absolute maximum input current of 30 mA DC to avoid module damage caused by excessive current. Mitsubishi R60ADI8 has a digital output value of 0~32000 and a 16-bit resolution (1/32000), allowing for accurate conversion of analog current signals to digital signals for PLC processing.

The Mitsubishi R60ADI8 has a conversion speed of 80 microseconds per channel, allowing it to swiftly capture current signals and increase the industrial control system's response time. The Mitsubishi R60ADI8 has an accuracy of ±0.1% (±32 digits) at 25±5℃ and ±0.3% (±96 digits) at 0~55℃, making it suitable for high-precision signal gathering in most industrial settings. The Mitsubishi R60ADI8 MELSEC iQ-R module also supports up to 50,000 offset and gain settings, allowing users to easily alter parameters based on their specific needs.

Specifications

Model	R60ADI8
Series	MELSEC iQ-R Series
Type	Analog Input Module
Number of Channels	8 channels (isolated)
Terminal Block	18-point screw terminal block
Occupied I/O Points	16 points
Input Type	DC current input
Resolution	16-bit (1/32000)

Precautions

First, pay attention to how the Mitsubishi R60ADI8 is installed. You must properly install the Mitsubishi R60ADI8 on the standard MELSEC iQ-R series base unit. Do not put it loosely or in the wrong direction, as this will interfere with the module's power supply and signal transmission. Also, ensure that the installation environment is clean and clear of excessive dust, which can damage the internal components of the Mitsubishi R60ADI8 over time.

Second, be careful when wiring the Mitsubishi R60ADI8. To minimize bad contact, the module's wiring uses an 18-point screw terminal block; therefore, the terminal screws must be tightened after installation. When connecting the DC current input signal, ensure that the positive and negative poles are correctly linked; incorrect polarity may result in improper signal collecting or possibly damage to the Mitsubishi R60ADI8. Furthermore, the input current must not exceed the absolute maximum input of 30 mA DC; otherwise, the overcurrent protection would activate and destroy the module.

Third, when utilizing the Mitsubishi R60ADI8, keep the surrounding surroundings in mind. The Mitsubishi R60ADI8 should have a working temperature of 0℃ to 55℃ and a storage temperature of -25℃ to 70℃. Do not place the module in a setting with extreme high or low temperatures, as this will affect its performance and lifespan. To avoid short circuits or insulation damage to the Mitsubishi R60ADI8, maintain a working humidity of 5-95% RH without moisture.

FAQ

Q: What is the Mitsubishi R60ADI8, and what is its primary function?

A: The Mitsubishi R60ADI8 is a high-performance analog input module intended for Melsec R Series programmable logic controllers. Its principal job is to transform real-world analog current data from field sensors (such as flow meters, pressure transmitters, or temperature sensors with current output) into exact digital values that the PLC CPU can handle. It has 8 isolated channels, making it perfect for applications that require multi-point monitoring.

Q: What type of signals can the Mitsubishi R60ADI8 analog input module handle?

A: The R60ADI8 module is specifically built to handle DC current signals. The normal input range for process control is 4 to 20 mA. It can normally accept currents ranging from 0 to 20 mA. It is critical to verify that your field sensors produce a comparable current signal. For voltage inputs, a separate module, such as the R60ADV8, is required.

Q: How does the Mitsubishi R60ADI8 compare to other analog input options?

A: Compared to discrete signal converters or less integrated modules, the R60ADI8 provides a small, centralized, and cost-effective solution for multi-channel current input. Its seamless interface with the Melsec R Series CPU minimizes wiring complexity while increasing system stability and maintainability. When selecting on an analog input module, the R60ADI8 is the best option for projects requiring numerous 4-20mA inputs on the R Series platform.
