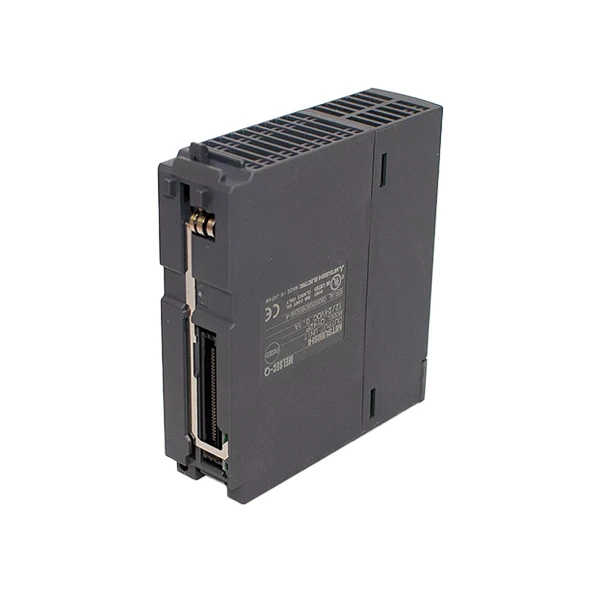

QY42P Mitsubishi Digital Output Module

Brand：Mitsubishi
Model：QY42P

Inventory situation: Goods are available in stock.

In factories, the Mitsubishi QY42P powers important equipment such as solenoid valves, conveyor belts, and robotic arms. For example, it switches solenoid valves to activate clamping mechanisms in pneumatic systems on automotive assembly lines. Its 64 separate output ports enable simultaneous control of various devices, lowering downtime and increasing efficiency. The module's fast reaction (1 ms) enables exact timing for packaging machines, where split-second decisions are critical to maintaining output rates.

In chemical plants, the QY42P controls valves, pumps, and reactors by transforming PLC signals into physical movements. For example, it modifies reactor feed rates by manipulating solenoid valves in response to pH or temperature sensors. The module's wide voltage tolerance (12-24V DC) and corrosion-resistant design make it ideal for use in demanding situations with fluctuating power supply. Its short-circuit protection safeguards against voltage spikes, improving process safety in distillation units and wastewater treatment systems.

The QY42P controls inverters, circuit breakers, and energy storage systems, making it an important component in smart grid applications. It shifts power sources in solar farms to optimize energy distribution or sounds an alarm when battery levels fall below certain criteria. The module's low power consumption and high efficiency (76% or higher) aid to save operating costs in wind turbines and industrial energy management systems. Its remote monitoring features enable operators to change settings in real time, increasing total energy efficiency.

The Mitsubishi QY42P is a high-performance digital output module for industrial automation systems, specifically intended to work with the Mitsubishi Q Series PLC. This module is designed to translate digital data from the PLC into precise control commands for external devices, including motors, solenoids, and indicators, providing dependable operation in a variety of industrial applications.

The QY42P handles DC 12-24V signals and has 64 separate output channels, including transistor (sink-type) outputs for versatility with diverse load types. Each channel has a rated current of 0.1A and a maximum of 2A per common terminal, making it ideal for powering low-power devices in production lines, process control systems, and automated machinery. Its 1 ms response time enables quick switching, which is essential for real-time control in high-speed production situations.

The QY42P provides short-circuit protection and optocoupler isolation to protect the module and its attached equipment from electrical interference and voltage spikes. Built-in LED indicators allow for real-time status monitoring of each output channel, easing troubleshooting and maintenance. The module also has a removable screw-terminal block for simple wiring and a small footprint (27.4 mm width x 98 mm height x 90 mm depth), enabling seamless integration into space-constrained control panels.

The QY42P is designed to resist extreme industrial conditions, with IP2X protection and a sturdy structure that ensures reliable operation in high-dust or high-vibration situations. It provides hot-swappable operation, which allows module replacement without shutting down the entire system, hence decreasing downtime in important applications.
