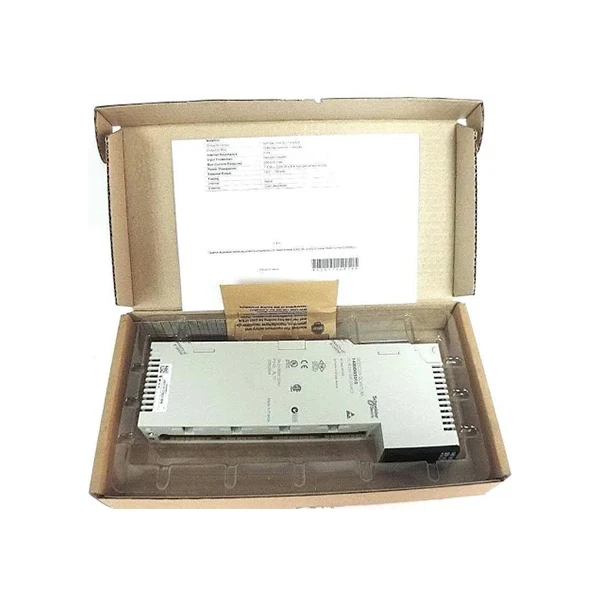

Schneider 140DDI35300

Brand：Schneider
Model：140DDI35300

Inventory situation: Goods are available in stock.

Product Application Scenarios

One key application of the 140DDI35300 is automated production lines in manufacturing. For example, it can monitor the status of conveyor belts, robotic arms, and assembly machines by connecting proximity sensors and photoelectric switches. Its fast response time (1ms) ensures real-time feedback, allowing the system to adjust operations immediately and maintain high efficiency. The module's wide input voltage range (19.2–30V DC) makes it suitable for environments with unstable power supplies, such as automotive factories or electronics production lines.

In process control industries like chemical or pharmaceutical manufacturing, the 140DDI35300 plays a critical role in safety monitoring. It can detect signals from pressure switches, temperature alarms, and liquid-level sensors to ensure processes adhere to safety standards. The module's optical isolation technology protects the control system from electrical interference, enhancing stability in harsh industrial environments.

For machinery equipment monitoring, the 140DDI35300 is widely used in CNC machines, injection molding machines, and printing presses. By connecting limit switches and operational status sensors, it helps engineers track equipment performance and detect potential failures early. The module's hot-swap capability allows maintenance without shutting down the entire system, reducing downtime and improving productivity.

Specifications

Dimensions	100mm (Width) × 125mm (Height) × 75mm (Depth)
Input Voltage	24VDC (Source/Sink)
Number of Channels	32 Points
Input Current	Approximately 8mA per channel (at 24VDC)
Total Power Consumption	Approximately 3.5W
Weight	500g
Operating Temperature	-25°C ~ +60°C
Protection Rating	IP20

Product features

The Schneider Electric 140DDI35300 is a discrete input module for the Modicon Quantum series. Users can connect up to 32 discrete input channels to this machine, which has a typical input voltage of 24V DC. The allowable voltage ranges for inputs range from 19.2 to 30V DC, allowing for flexibility in a variety of applications. Logic operations are carried out via positive sink input, making interfacing with other systems and components easier.

The 140DDI35300 has a tiny size of100 mm (width) × 125 mm (height) × 75 mm (depth). . This compact size not only makes it excellent for control cabinets with limited space, but it also makes installation easier in a variety of industrial facilities. The module accepts a 24V DC input voltage and can operate in both sourcing and sinking modes.

The 140DDI35300 has up to 32 input channels, offering plenty of data acquisition points for industrial automation systems. These channels are separated into four individually isolated portions, each with eight channels, and the isolation voltage between sections is up to 500V RMS. The isolation voltage between the channels and the bus reaches 1780 volts RMS.

The 140DDI35300 has removable screw terminals (M3.5) for wiring and accommodates 22 - 14 AWG wires, making wiring straightforward and convenient. Furthermore, it is very compatible with other Modicon Quantum series components, allowing for simple integration into existing automation systems. The module has 32 green LEDs to show channel status and one red LED to identify module defects, allowing for easy diagnosis and maintenance.

FAQ

Q: What are the input point count, voltage range, and number of isolation groups for the module?

A: The 140DDI35300 module has 32 input points, with an input voltage of 24V DC and a wide compatibility range, allowing it to operate stably between 19.2V and 30V DC. The 32 input points are divided into 4 isolated groups, with each group containing 8 channels. The isolation voltage between groups reaches 500V RMS, while the isolation voltage between channels and the bus is 1780V RMS.

Q: Does the 140DDI35300 module support high-density signal acquisition?

A: With its configuration of 32 input points, the 140DDI35300 is well-suited for high-density signal acquisition. In applications such as smart warehousing systems, it can monitor numerous signals from shelf sensors and transport equipment status switches simultaneously.

Q: Is it compatible with the Modicon Quantum platform?

A: The Schneider 140DDI35300 module is part of the Modicon Quantum series, and it has good compatibility with the Modicon Quantum platform. The module can seamlessly integrate into the Modicon Quantum PLC system, communicating with other components such as the Quantum bus and CPU modules.
