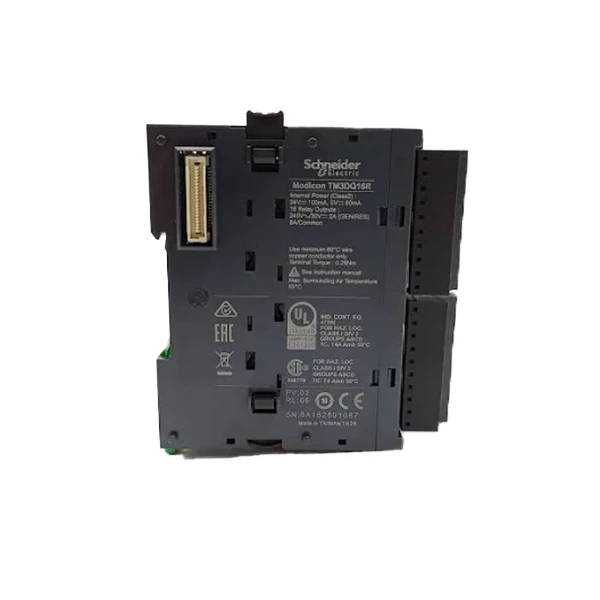

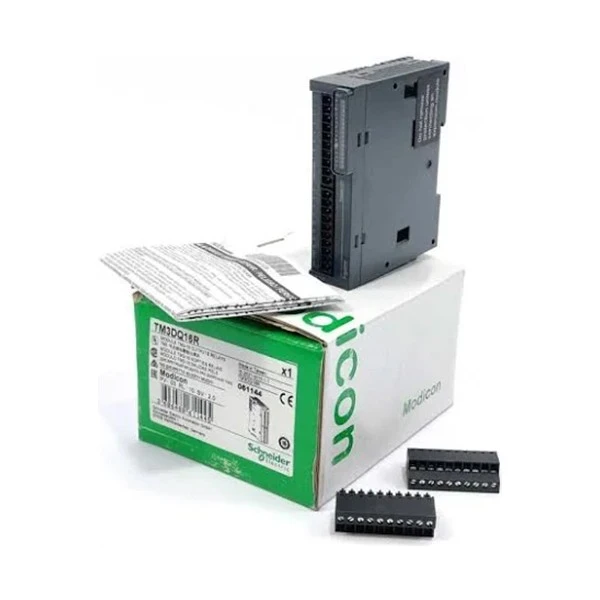

TM3DQ16R Schneider Electric
Brand：Schneider
Model：TM3DQ16R
Inventory situation: Goods are available in stock.
Product Application Scenarios
One key application of the TM3DQ16R is automated manufacturing lines. For example, it can control conveyor belts in automotive factories by activating relays to start or stop motors. Its fast response time (10ms ON/5ms OFF) ensures real-time adjustments, improving production efficiency. The module's high current capacity (2000mA per channel) allows it to handle heavy-duty equipment, making it ideal for industries like electronics assembly or packaging.
In process control systems, the TM3DQ16R excels in managing valves and pumps. For instance, in chemical plants, it can regulate the flow of liquids by switching solenoid valves based on sensor inputs. The module's wide voltage support (240V AC/30V DC) ensures compatibility with diverse industrial setups, while its optical isolation protects against electrical interference. This reliability is essential for maintaining safety and precision in processes like pharmaceutical production or water treatment.
Another use case is energy management. The TM3DQ16R can monitor and control circuit breakers in power distribution systems. By connecting to sensors, it detects faults and triggers alarms or shutdowns, reducing downtime. Its compact design (27.4mm width) saves space in control panels, making it suitable for smart grid projects or renewable energy facilities.
The TM3DQ16R also performs well in machinery equipment. In CNC machines or injection molding systems, it controls tool movements by activating relays that switch motors or hydraulic valves. The module's mechanical lifespan of 20 million operations ensures long-term durability, even in high-frequency applications. Additionally, its removable screw terminals simplify wiring and maintenance, minimizing downtime during repairs.
Products Description
| Minimum Load | 5V DC / 10mA |
| Power Supply Voltage | 24V DC ±15% |
| Dimensions | 27.4mm (Width) × 84.6mm (Depth) × 90mm (Height) |
| Mounting Method | 35mm DIN Rail (TH35-7.5) |
| Weight | 145g |
| International Certifications | CE, UL, cUL, IEC 61131-2 |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to +55°C |
Product features
The TM3DQ16R is a discrete output module designed for Modicon TM3 systems, including 16 relay outputs and operating at 24V DC. This module is compatible with Modicon controllers and is part of the Modicon TM3 series of I/O extension modules. It features sixteen normally open (N/O) relay outputs, each rated for 2 amps of current.
The TM3DQ16R includes a removable screw terminal block, making it easy to connect and mount on a 35 mm symmetrical DIN rail. It compliments the embedded I/O of the Modicon M221, M221 Book, M241, and M251 logic controllers.With an IP20 rating, the TM3DQ16R module protects against solid objects larger than 12mm but does not provide water resistance. Its measurements are 23.6mm wide, 70mm deep, and 90mm high, with a weight of 140g.
The Modicon TM3 series' modular construction enables flexible scalability. The TM3 bus allows you to daisy-chain up to 63 modules to form a 1008-point I/O system. EcoStruxure™ Machine Expert software integrates seamlessly, allowing engineers to complete configuration tasks in 30 minutes instead of an hour. This is especially useful for industrial automation projects like automotive assembly lines that require rapid iteration.
