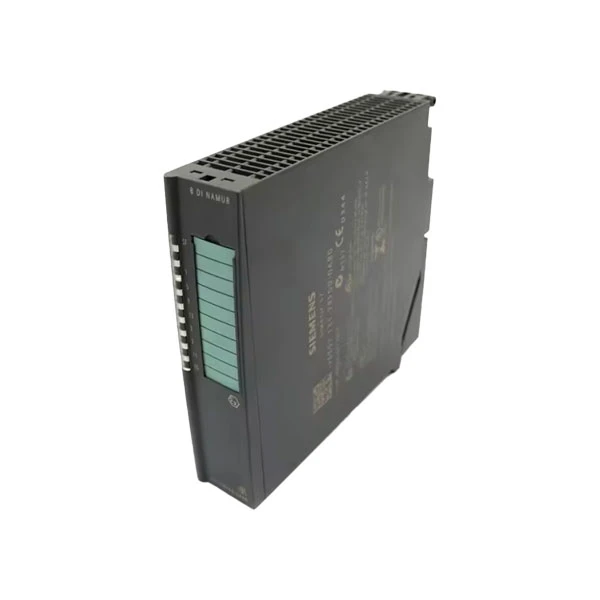

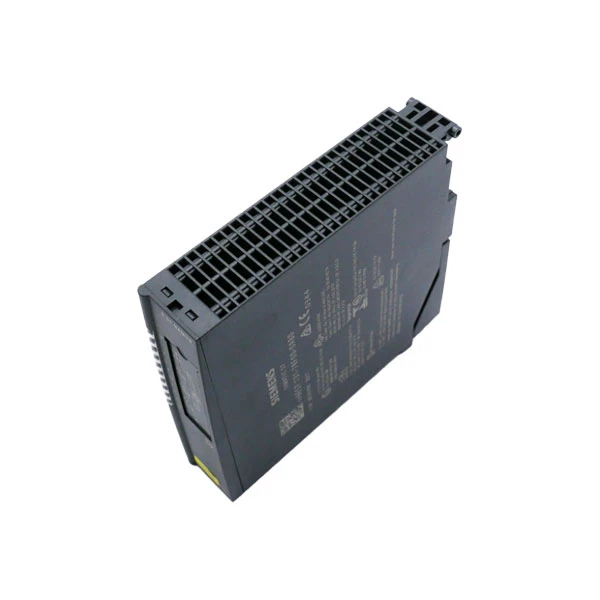

Siemens 6ES7131-7RF00-0AB0

Brand: Siemens
Model: 6ES7131-7RF00-0AB0

Inventory situation: Goods are available in stock.

Product features

The Siemens 6ES7131-7RF00-0AB0 is a reliable digital input module designed for the SIMATIC ET200iSP distributed I/O system, which is an important component of Siemens' industrial automation solutions. As an active product in Siemens' portfolio, it is designed to fulfill the rigorous needs of modern manufacturing, particularly in areas where safety and precision are paramount. This module is solely focused on input functions, with 8 independent NAMUR digital input channels that adhere to the DIN 19234 standard, making it ideal for connecting up to 8 NAMUR encoders or similar sensors found in industrial systems.

The Siemens 6ES7131-7RF00-0AB0 is a popular choice in many sectors due to its intrinsic safety design. It has several explosion-proof certifications, including Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb. These certifications indicate that it can operate safely in hazardous environments such as chemical factories, oil refineries, and pharmaceutical facilities where flammable gasses or dust may be present. For organizations operating in these high-risk areas, our module solves major safety problems while maintaining consistent performance.

The Siemens 6ES7131-7RF00-0AB0 is energy-efficient and runs on a 24V DC nominal supply (range from 20.4V to 28.8V DC), with a normal current demand of 80 mA and a maximum of 90 mA. It provides excellent isolation between its channels and the backplane bus, ensuring consistent signal transmission even in noisy industrial situations. The module features a short input latency of 2.8 to 3.5 milliseconds for both on and off signal shifts, allowing for quick reactions to sensor data-essential for effective process management. It also allows shielded cable lengths of up to 500 meters, making it suitable for large-scale automation configurations.

Specifications

Model	6ES7131-7RF00-0AB0
Module Type	8-Channel NAMUR Digital Input Module (DI 8xNAMUR)
Supply Voltage	24 V DC
Protection Rating	IP30
Mounting Method	Girth rail mounting (DIN rail 35 mm)
Communication Interface	PROFIBUS DP
Operating Temperature	-25°C to +60°C
Dimensions	139 mm × 163 mm × 43 mm (W × H × D)

Precautions

First, consider the power supply requirements of the Siemens 6ES7131-7RF00-0AB0. The module works with a DC power source ranging from 20.4V to 28.8V, with a rated voltage of 24V DC. Don't connect it to an AC or DC power supply outside of this range. Using an improper power supply will burn the internal components of the Siemens 6ES7131-7RF00-0AB0, rendering it inoperable. At the same time, ensure that the power supply is stable to avoid voltage fluctuations that damage the module's functionality.

Because the Siemens 6ES7131-7RF00-0AB0 has explosion-proof certification for hazardous places, you must inspect the working environment before use. It is appropriate for locations requiring Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, and Ex ib [ia] I Mb certificates. Do not use the Siemens 6ES7131-7RF00-0AB0 in hazardous regions beyond its certification scope, as this will violate safety laws and could result in major mishaps such as explosions or fires.

When connecting cables to the Siemens 6ES7131-7RF00-0AB0, utilize shielded cables and keep the cable length under 500 meters. Unshielded or too long wires will create signal interference, rendering the input data erroneous. Also, inspect the cables on a regular basis for damage or looseness-broken or loose cables can cause short circuits or signal loss, disrupting the proper operation of the Siemens 6ES7131-7RF00-0AB0 and the overall automation system.

FAQ

Q: What is the Siemens 6ES7131-7RF00-0AB0, and what is its primary function?

A: An electronic sub-module of the SIMATIC ET 200SP distributed I/O system is the Siemens 6ES7131-7RF00-0AB0. Its main purpose is to interface with NAMUR sensors, which are frequently used in process automation, as an 8 DI NAMUR digital input module. These modules are crucial for safety applications and for tracking signals from sensors in dangerous locations or those that meet NAMUR requirements.

Q: How do I integrate the 6ES7131-7RF00-0AB0 into a control system?

A: The SIMATIC ET 200SP distributed I/O system incorporates the 6ES7131-7RF00-0AB0 module. A central programmable logic controller (PLC), like a SIMATIC S7-1500 or S7-1200, is connected to this system via Profinet. The module is installed by snapping it onto a typical ET 200SP base unit and setting it up in the engineering software Siemens TIA Portal (Totally Integrated Automation Portal).

Q: Where can I find the official manual and documentation for the 6ES7131-7RF00-0AB0?

A: The best places to find the official Siemens 6ES7131-7RF00-0AB0 handbook and product documentation are the Siemens Support Website or the Siemens Industry Mall. These resources offer comprehensive details on technical specifications, certifications, wiring, safety, and installation.
