Siemens 6ES7144-6KD50-0AB0

Brand: Siemens
Model: 6ES7144-6KD50-0AB0

Inventory situation: Goods are available in stock.

Product features

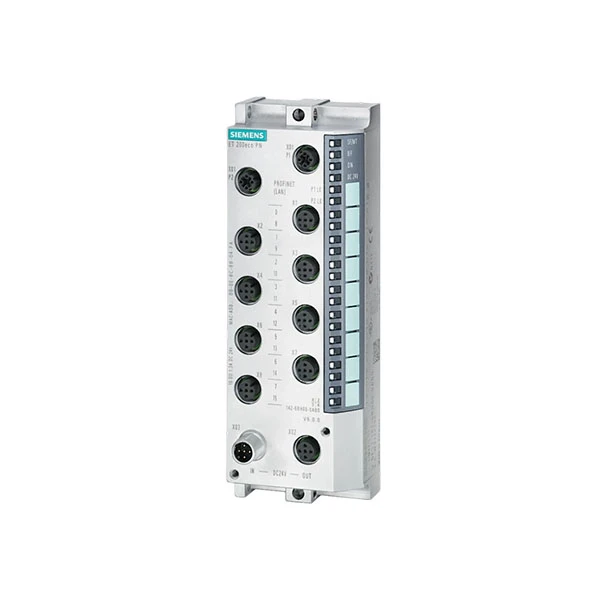

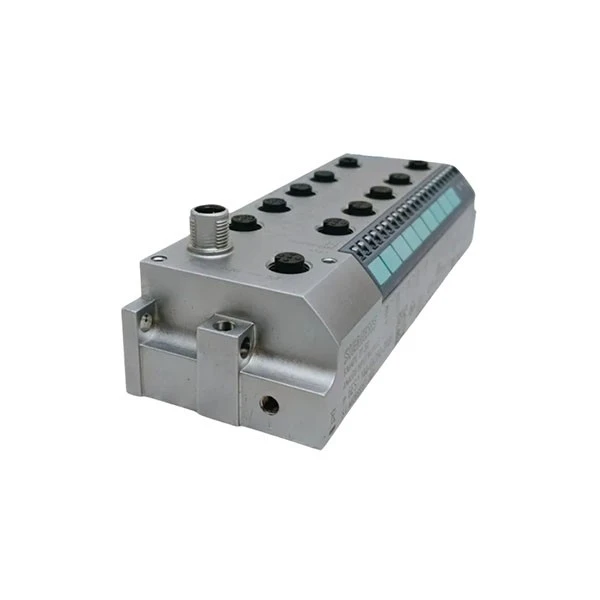

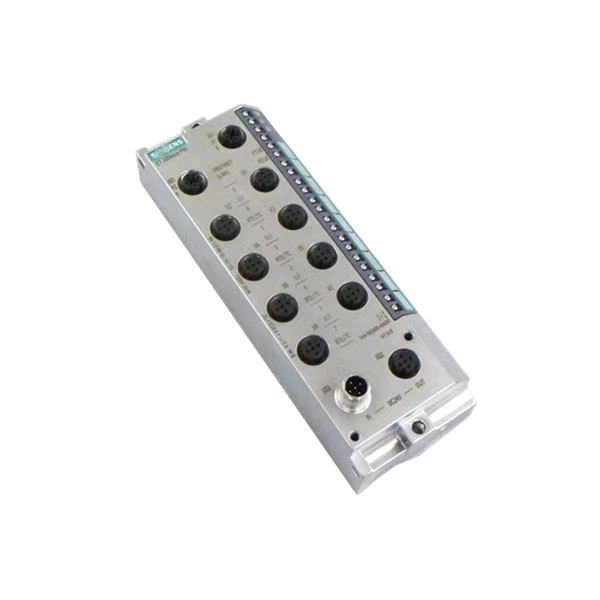

Siemens 6ES7144-6KD50-0AB0 is an 8-channel analog input module with 8 M12 connectors, making connections more convenient and secure. It operates on a 24 V DC power source and has an input voltage range of 20.4 to 28.8 V DC, which is safe and steady. Siemens 6ES7144-6KD50-0AB0 has a typical current usage of 110 mA and a power loss of roughly 2.8 W, making it both energy efficient and environmentally friendly. Furthermore, this module includes reverse polarity protection, which can prevent damage caused by faulty wiring, hence increasing its service life. The Siemens 6ES7144-6KD50-0AB0 ET 200ECO PN module includes 8 independent adjustable channels that may be modified based on varied use requirements, making it more adaptable in actual applications.

The Siemens 6ES7144-6KD50-0AB0 analog input module accepts a variety of signal types, including voltage, thermocouples (E, J, K, N), resistance thermometers (Ni 100/1000/120/200/500, Pt 100/1000/200/500), and resistors (0-150/300/600/3000 Ω). It supports 2-wire, 3-wire, and 4-wire connection techniques, allowing it to handle a variety of measuring requirements in industrial production. The Siemens 6ES7144-6KD50-0AB0 has a resolution of up to 16 bits, ensuring reliable measurement results. Its linear error is only ±0.01% relative to the input range, indicating high precision. This module also has good anti-interference performance, with crosstalk between channels of at least -85 dB, ensuring data transmission stability even in complicated industrial situations.

Siemens 6ES7144-6KD50-0AB0 has a PROFINET IO communication interface with an integrated switch and a transmission rate of up to 100 Mbit/s, allowing for fast and stable data interchange with other industrial equipment. It supports several protocols, including PROFINET IO, SNMP, DCP, LLDP, ping, and ARP, as well as the MRP media redundancy protocol, which increases the communication system's reliability. The Siemens 6ES7144-6KD50-0AB0 IP67 industrial module also includes a diagnostic function that may generate diagnostic alarms and allow users to access diagnostic information, making it easier to identify and fix problems quickly. The mechanical size is 60 mm × 175 mm × 49 mm, with a weight of around 930 g, making it compact and easy to install in restricted space.

Specifications

Model	6ES7144-6KD50-0AB0
Product Series	ET 200ECO PN
Product Type	8-channel Analog Input Module
Protection Class	IP65/67
Rated Supply Voltage	24 V DC
Reverse Polarity Protection	Yes (prevents damage)
Current Consumption (typical)	110 mA
Power Loss (typical)	2.8 W

Precautions

When utilizing Siemens 6ES7144-6KD50-0AB0, take these steps to maintain its safe and reliable functioning while also extending its service life. First and foremost, the power supply for Siemens 6ES7144-6KD50-0AB0 must be 24 V DC, with the input voltage range rigorously controlled between 20.4 V DC and 28.8 V DC. Do not connect it to a voltage that exceeds this range, since this will destroy the Siemens 6ES7144-6KD50-0AB0 analog input module. Although the Siemens 6ES7144-6KD50-0AB0 includes reverse polarity protection, you should still carefully verify the positive and negative poles of the power supply before cabling to avoid an improper connection.

Siemens 6ES7144-6KD50-0AB0 has an IP65/67 protection certification, making it appropriate for tough industrial settings. However, it cannot be utilized in areas with extreme temperatures, significant corrosion, or heavy vibration. The suggested working temperature range for Siemens 6ES7144-6KD50-0AB0 is -25°C to +60°C; if used outside of this range, performance will suffer, and internal components may be damaged. Furthermore, do not attempt to disassemble Siemens 6ES7144-6KD50-0AB0 while it is powered on, as this may result in an electric shock or module failure. Before performing any maintenance or disassembly, turn off the power and wait a few minutes to ensure safety.

To achieve a firm connection and good contact, wire Siemens 6ES7144-6KD50-0AB0 using the recommended 4/5-pin M12 circular connectors. Loose wiring will result in erroneous measurement data or a communication failure of Siemens 6ES7144-6KD50-0AB0. The maximum length of the shielded cable used for Siemens 6ES7144-6KD50-0AB0 is 30 meters; do not use cables longer than this length, since the signal will be interfered with, reducing measurement accuracy. When configuring Siemens 6ES7144-6KD50-0AB0's 8 independent channels, configure the signal type (such as RTD, TC, or voltage) according to your specific needs, rather than mixing multiple signal kinds at random without parameterization.

FAQ

Q: What is the Siemens 6ES7144-6KD50-0AB0 module, and what does it do?

A: The Siemens 6ES7144-6KD50-0AB0 is a compact, rugged analog input module for the SIMATIC ET 200ECO PN distributed I/O system. It functions as a field interface, collecting temperature data directly from sensors put on machinery. It has eight analog input channels that are meant to connect Resistance Temperature Detectors (RTDs) and Thermocouples (TCs).

Q: How does the IP67 protection rating benefit my automation system design?

A: The IP67 protection of the ET 200ECO PN module allows for a decentralized machine design. The I/O module can be installed immediately where the sensors are-on a moving machine part, in a dusty environment, or near water. This eliminates the need for long, expensive sensor wires that lead back to a central cabinet, simplifying wiring and boosting system reliability.
