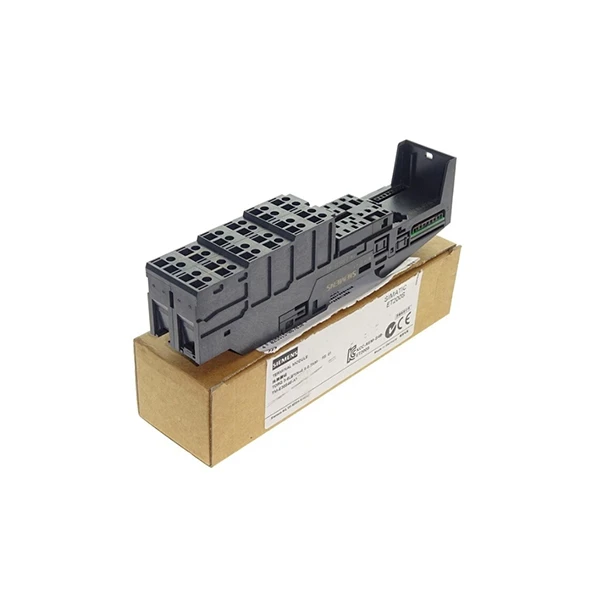

Siemens 6ES7193-4CF40-0AA0

Brand: Siemens
Model: 6ES7193-4CF40-0AA0

Inventory situation: Goods are available in stock.

Product features

Siemens 6ES7193-4CF40-0AA0 is a dependable SIMATIC DP terminal module developed by Siemens for industrial automation applications. Siemens 6ES7193-4CF40-0AA0 has a tiny design, measuring 30 mm in width, 157 mm in height, and 43 mm in depth, and weighs only roughly 158 grams. Its IP20 protection grade qualifies it for indoor industrial situations where it may operate effectively in tough conditions. The module operates within a voltage range of 5-24 V DC and has a maximum rated voltage of 250 V AC or 125 V DC, with a rated current of up to 10 A. It also offers remarkable temperature adaptation, operating efficiently between -25°C and +60°C and storing safely at -40°C to +70°C.

One of the important aspects of Siemens 6ES7193-4CF40-0AA0 is its 24 screw-type terminals, which are organized in four groups of six. These connectors work with wires ranging from 0.2 mm² to 1.5 mm² (AWG 24-16), allowing for secure and easy wiring. The module also provides access to AUX1 power via a continuous connection, making it more useful for many industrial applications.

Siemens 6ES7193-4CF40-0AA0 supports the PROFIBUS DP communication protocol, which allows rapid and dependable data exchange in automated systems. It is intended for standard rail attachment, making installation simple and easy. It also enables hot swapping, which allows users to replace the module while the system is still running without stopping it completely. The channel-by-channel diagnostic function increases its availability, allowing users to quickly find and resolve problems.

Specifications

Model	6ES7193-4CF40-0AA0
Product Name	SIMATIC DP, Terminal Module TM-E30S46-A1
Applicable System	ET 200S Distributed I/O System
Product Category	Terminal Modules for Power and Electronic Modules
Rated Voltage	≤ 250 V AC / 125 V DC
Rated Current	≤ 10 A
Operating Voltage	5-24 V DC
Terminal Type	Screw-type terminals

Precautions

First, pay great attention to the installation requirements. Siemens 6ES7193-4CF40-0AA0 is intended for standard rail attachment; ensure that the rail is robust and suitable for the module's 30 mm width. During installation, do not force or knock the module onto the rail, as this may cause damage to internal components. Because of its IP20 protection classification, the module is only suitable for indoor industrial situations; it should not be installed in damp, dusty, or corrosive regions, since moisture or debris can compromise its insulation and contact effectiveness.

Second, follow rigorous wiring requirements. For Siemens 6ES7193-4CF40-0AA0 screw terminals, utilize wires having a cross-sectional area of 0.2 mm² to 1.5 mm² (AWG 24-16). Wires outside this range may result in loose connections or poor signal transmission. Tighten terminal screws tightly but not excessively to prevent wire damage or terminal deformation. A contact resistance of more than 10 mΩ indicates a poor connection that requires prompt repair. To avoid overheating or module failure, never connect wires while the power is on and stay within the rated voltage (≤250 V AC / 125 V DC) and current (≤10 A).

FAQ

Q: What is the Siemens 6ES7193-4CF40-0AA0, and what is its primary function in an automation system?

A: The Siemens 6ES7193-4CF40-0AA0 is a SIMATIC ET 200SP BaseUnit (BU40-p type). Its major duty is to act as a mounting and wiring interface for ET 200 SP I/O modules. It includes the mechanical base, a 40-pin front connector for field wiring, and an internal bus connection to send data and power to the modules. Consider it the intelligent "backplane" or foundation into which various signal modules (digital/analog input or output modules) plug to construct a fully dispersed I/O station.

Q: Can I use the 6ES7193-4CF40-0AA0 for both digital and analog modules?

A: Yes, absolutely. The 6ES7193-4CF40-0AA0 BaseUnit is versatile and may accommodate any combination of two ET 200SP I/O modules, including digital input (DI), digital output (DQ), analog input (AI), analog output (AQ), and other technology modules. The key is to ensure that the modules are properly set up in the TIA Portal engineering software.

Q: What is a common alternative or consideration when selecting this BaseUnit?

A: One important question is whether to use potential-fed ("p") or energy-fed ("e") BaseUnits. The 6ES7193-4CF40-0AA0 is a "p" type that powers the electronics via the backplane bus. For modules that consume a lot of power on the terminal (for example, some digital outputs), you may need an energy-feed module in the station or a "e" type BaseUnit for that segment. Always evaluate the power budget for the complete ET 200SP configuration.
