Siemens 6GK1503-3CB00

Brand: Siemens
Model: 6GK1503-3CB00

Inventory situation: Goods are available in stock.

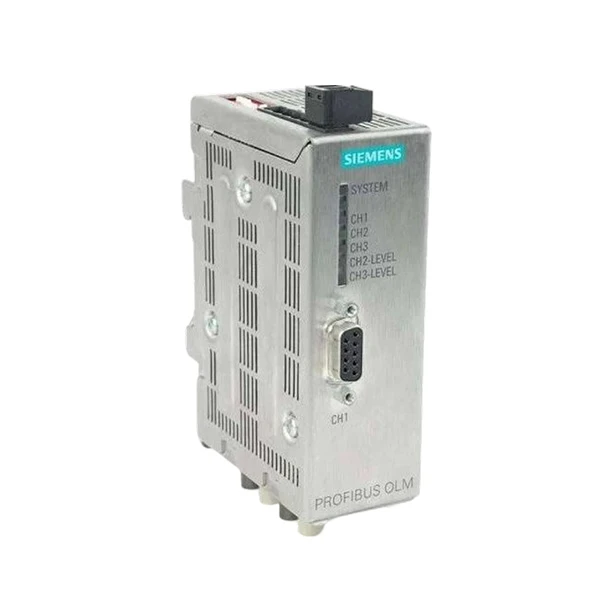

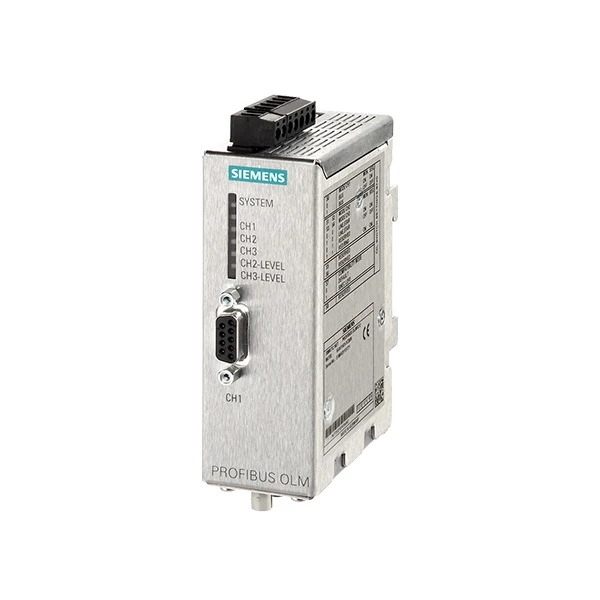

A dependable PROFIBUS OLM/G12 V4.0 optical link module made for industrial communication is the Siemens 6GK1503-3CB00. By transforming electrical signals into optical signals and vice versa, it plays a crucial role in joining various components of industrial networks and enabling long-distance data transfer in challenging industrial settings.

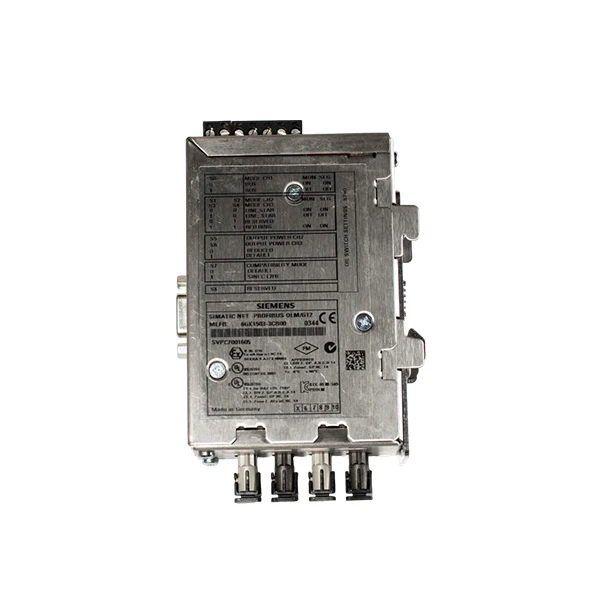

First, let's talk about its interfaces. For electrical connections, the Siemens 6GK1503-3CB00 features a single 9-pin Sub-D socket that supports the PROFIBUS-DP/PA protocol. This indicates that it can manage data transfer rates ranging from 9.6 kbit/s to 12 Mbit/s, which includes the 45.45 kbit/s required for PROFIBUS PA. It has four BFOC sockets (2 pairs) for optical connections, which are ideal for multimode glass fiber. It can transmit data over long distances using light with a wavelength of 860 nm, up to 2850 meters with 50/125 μm fiber and 3000 meters with 62.5/125 μm fiber. For expanding industrial networks, this makes the Siemens 6GK1503-3CB00 an excellent option.

The Siemens 6GK1503-3CB00 is simple to install. It weighs only 0.34 kg and measures only 39.5 mm in width, 74.5 mm in depth, and 112 mm in height. It can be mounted on a wall or a 35 mm DIN rail. Its metal casing aids in shielding, preventing shocks (50g, 11 ms) and vibrations (5-500 Hz, 3g), which is crucial in crowded industrial settings.

This module is designed to withstand industrial settings. It can be stored between -40°C and 70°C and performs best in temperatures between 0°C and 60°C. Additionally, it can withstand high humidity levels of up to 95% at 25°C without producing condensation. It is safe to use indoors in factories and plants because of its IP20 protection rating. Additionally, it satisfies stringent quality standards thanks to certifications like CE, UL, and RoHS.

To make sure the Siemens 6GK1503-3CB00 operates effectively and lasts a long time, there are a few key considerations to make. Let's begin with the installation. Make sure the Siemens 6GK1503-3CB00 is securely fastened, whether it is mounted on a wall or a 35 mm DIN rail. Its performance may be harmed by vibrations from loose mounting, particularly in crowded industrial spaces where there is a lot of machine movement.

Another important consideration is the power source. With a safe operating range of 18.8 V to 28.8 V DC, the Siemens 6GK1503-3CB00 operates on 24 V DC. The module may be harmed if the voltage is used outside of this range. Make sure both power sources are connected correctly if you're using the 5-pin terminal for the redundant power input. If the connections are correct, this redundancy helps keep the module operational in the event that one power source fails.

The Siemens 6GK1503-3CB00 is most effective when used with 50/125 μm or 62.5/125 μm multimode glass fiber for fiber optic connections. Signal loss or sluggish data transfer could result from using other kinds, such as inferior plastic fiber, longer than the advised 80 meters. Maintain the cleanliness of the BFOC fiber sockets as well. Before connecting, gently wipe the sockets with a dry, lint-free cloth to remove any dust or debris that might be obstructing the light signal. To prevent loose links, always use the appropriate fiber connectors (such as Siemens 6GK1900-0HB00-0AC0).
