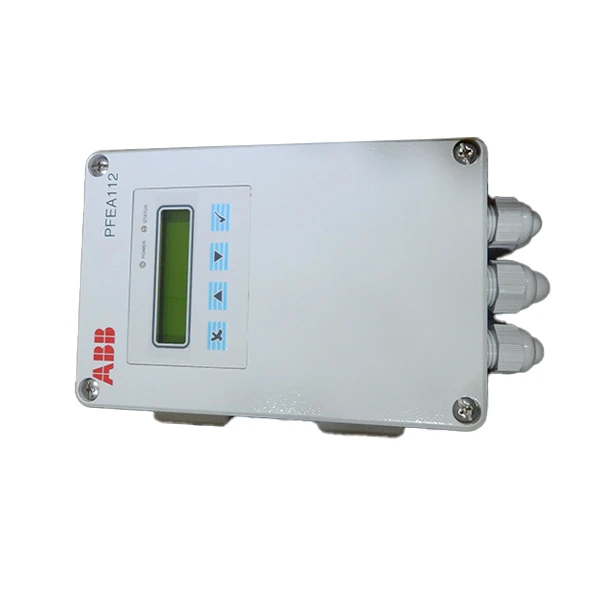

ABB PFEA112-65 3BSE050091R65(10)

Brand：ABB
Model：PFEA112-65 3BSE050091R65

Inventory situation: Goods are available in stock.

Product Description

3BSE050091R65 Tension Module;ABB Tension Controller PFEA112-65;40-Channel Tension Monitoring Module;Triple Redundant Tension Control System;0.75A Output Tension Control Module;IP65 Protected Tension Controller;ABB PFEA112-65 Tension Control Module

Specifications

IP20 voltage	24V DC (voltage range:18 - 36V)
Frequency	45 - 65 Hz
Power requirement	7.5 watts
Output voltage measurement range	0 to 60V DC
Output off-state resistance (effective leakage current)	33kΩ
Minimum on-state load current	25mA
Number of monitored outputs	40 channels
Independent power supply groups	5 for each of the 8 outputs

Product featuress

The PFEA112-65 3BSE050091R65 from ABB is a high-performance electrical component that is specifically designed to meet the demands of modern industrial applications.

The ABB PFEA112-65 3BSE050091R65 has 40-channel monitoring output, allowing for real-time monitoring and adjustment of numerous tension points. It also has a triple redundant circuit design, which allows regular operation even in the case of a partial system failure, considerably lowering the chance of production line downtime.

The ABB PFEA112-65 3BSE050091R65 features 2 load cells and a high-load arrangement with 5Ω cable resistance, making it appropriate for challenging industrial settings. Its programmable analog output (-5~+11V or 0-21mA) and 6 configurable filters (range from 15ms to 1500ms) can be coupled to meet various response needs.

FAQ

Q: What is the output shut-off state resistance (effective leakage current) of the ABB PFEA112-65 3BSE050091R65?

A: The output shut-off state resistance (effective leakage current) of the ABB PFEA112-65 3BSE050091R65 is specified as 33kΩ.

Q: What is the output leakage current of the ABB PFEA112-65 3BSE050091R65?

A: In the output shut-off state, when the operating output voltage is 60V, the leakage current is approximately 1.82mA.

Q: How does the triple redundant circuit achieve redundancy?

A: The ABB PFEA112-65 3BSE050091R65 circuit employs three identical core processing units to process the same input signal. For example, in tension measurement, three identical sensors simultaneously detect the tension, each transmitting the detected signal to their corresponding processing unit. This way, if one processing unit fails, the other two can continue to operate normally, providing accurate measurement information.
