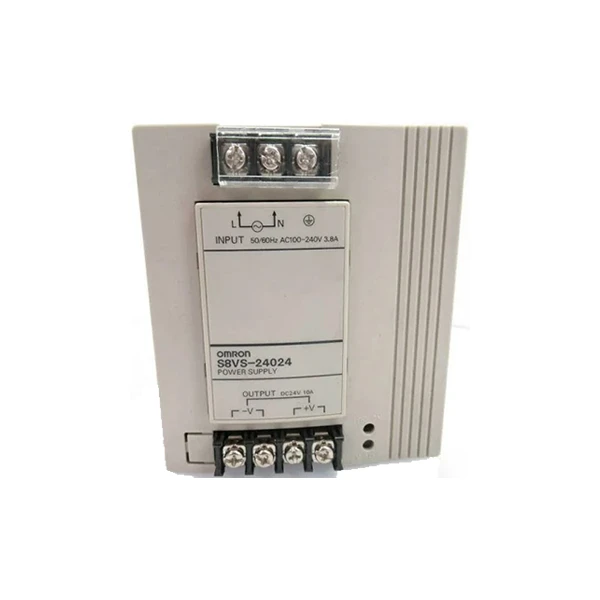

Omron S8VS-24024

Brand: Omron
Model: S8VS-24024

Inventory situation: Goods are available in stock.

Product Description

The Omron S8VS-24024 is a dependable AC/DC switch-mode power supply developed for industrial automation and control applications. With a power output of 240W, it provides 24V DC at 10A, making it perfect for applications that require a consistent and efficient power supply, such as factory machines, robotics, and industrial equipment. This power supply is designed to accept a wide input voltage range of 85-264V AC or 80-370V DC, ensuring compatibility with global power sources and reducing the need for various power solutions.

The S8VS-24024 features advanced protective functions such as overload protection (105%-160% of rated load), overvoltage protection, and automatic reset capabilities to protect connected devices from damage. Its built-in green LED indicator displays the output status, and the sinking alarm output allows for real-time monitoring of operational circumstances. The tiny DIN rail mounting configuration (120mm x 100mm x 125.6mm) saves space and simplifies installation in packed control panels.

The S8VS-24024 is designed for high efficiency, with up to 88% efficiency at 200V AC input, helping to reduce energy usage and operational expenses. It complies with international safety standards such as UL 508, CSA C22.2, and CE, ensuring consistent performance in a variety of industrial situations. The power supply performs dependably in temperatures ranging from -10°C to +60°C, making it ideal for use in severe environments such as manufacturing facilities, logistics centers, and processing industries.

This power supply is a versatile option for industrial automation, supplying reliable power to PLCs, sensors, motors, and other vital components. Its tough design and 5-year warranty demonstrate Omron's dedication to quality and long-term dependability. The Omron S8VS-24024, whether used in new installations or as a replacement for outdated systems, provides a cost-effective and efficient power solution for industrial applications requiring 24V DC output.

Product Specifications

Input Voltage Range	AC 100-240V
Output Voltage	DC 24V
Output Power	240W
Output Current	10A (maximum)
Efficiency	Approximately 90% (under rated load)
Operating Temperature Range	-10°C to +70°C
Over-Temperature Protection	Yes
Short-Circuit Protection	Yes
Mounting Options	Multiple mounting methods, including DIN rail and panel mounting
Dimensions (W x H x D)	100mm x 125mm x 120mm
Weight	Approximately 1.4 kg

Product Advantages

The Omron S8VS-24024 is a reliable switch-mode power supply built for industrial automation systems. It gives a steady 24V DC output with up to 10A current, delivering 240W power to run machines and control panels. This power supply works with a wide range of input voltages-from 85V to 264V AC-making it suitable for global use in factories and buildings with unstable power sources. It also accepts DC inputs from 80V to 370V DC for flexible setups in solar or battery-powered systems.

Safety is a top priority. The S8VS-24024 includes overload, short-circuit, and overheating protection to prevent damage during electrical faults. It meets strict global standards like UL 508, EN 60950-1, and EN 50178 (VDE 0160), ensuring safe operation in commercial buildings, hospitals, and labs. With an 80–85% energy efficiency rating and low electromagnetic interference (EMI), it runs cool and quietly without disrupting sensitive electronics nearby. Its long 135,000-hour lifespan and three-year warranty add peace of mind for industrial users.

This power supply is ideal for building automation controllers, motor drives, and safety systems in factories. Its rugged design handles temperatures from -10°C to +60°C and resists vibrations in busy industrial settings. Whether powering PLCs, sensors, or relays, the Omron S8VS-24024 delivers dependable 24V DC power for smooth, uninterrupted operations in any automation project.

FAQ

Q: What are the electrical specifications and efficiency ratings of the Omron S8VS-24024 power supply?

A: The Omron S8VS-24024 delivers an output of 24 VDC at 10 A, with a continuous power rating of 240 W. The rated input voltage is 100 to 240 VAC, with an allowable variable range of 85 to 264 VAC or 80 to 370 VDC. Efficiency performance registers at 85% typ. with 100 VAC input, and rises to 88% typ. with 200 VAC input. Rated input current reaches 3.8 A max. at 100 VAC input and 2.0 A max. at 200 VAC input. Power factor is 0.9 min., while leakage current is at 0.5 mA max. at 100 VAC input and 1.0 mA max. at 200 VAC input. Inrush current measures 17.5 A max. at 100 VAC input (cold start at 25℃), and 35 A max. at 200 VAC input. Insulation is rated at a dielectric strength of 3 kVAC for 1 min between input and output terminals, with detection current of 20 mA.

Q: Can the S8VS-24024 accept DC input voltage?

A: Yes, the S8VS-24024 can also accept DC input within 80 to 370 VDC38†L10-L11】. This flexibility enables operation in environments where AC power is inconsistent or where DC backup systems are required, such as battery-powered control panels in industrial automation and renewable energy applications. For CE compliance, note that DC input configurations may not fully adhere to EC Directive standards.

Q: What are the physical dimensions and weight of the Omron S8VS-24024?

A: The unit measures 125.3 mm (L) × 100 mm (W) × 115 mm (H) (4.93″ × 3.94″ × 4.53″). Net weight stands at 1.2 kg, with a shipping weight of 3.00 kg. These compact specifications make it particularly suitable for DIN rail mounting in space-constrained control cabinets and enclosures.

Q: Is the Omron S8VS-24024 suitable for series or parallel operation?

A: Series operation is permitted, allowing up to two units to be connected with external diodes, suitable for applications requiring higher voltages such as 48 VDC systems. Parallel operation is not supported for active load sharing, but backup operation is possible with the use of external diodes (maximum 2 units). When implementing series operation, ensure proper thermal management measures are in place to prevent diode-related power loss.
