Schneider Electric TM218LDA40DRN

Brand: Schneider
Model: TM218LDA40DRN

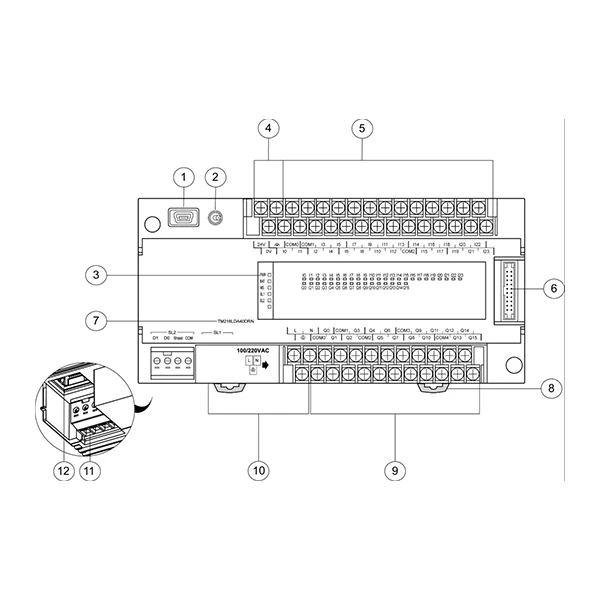

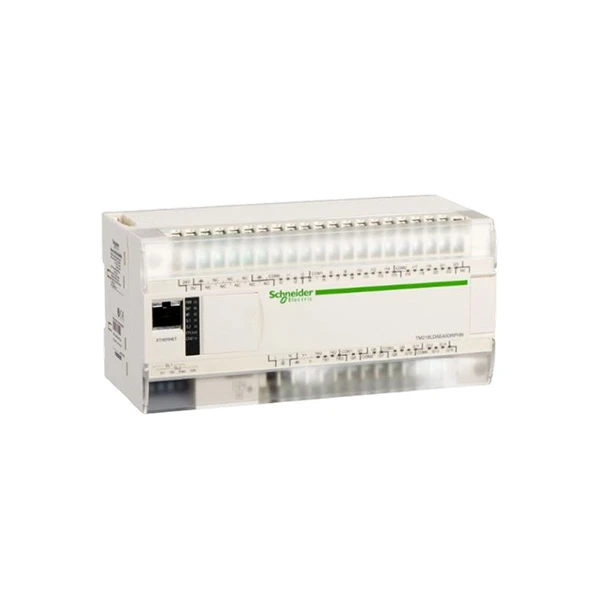

Schneider TM218LDA40DRN programmable controller

Inventory situation: Goods are available in stock.

Product features

The Schneider TM218LDA40DRN is a high-performance Programmable Logic Controller (PLC) intended for industrial automation applications. Schneider Electric, a global leader in energy management and automation solutions, developed this PLC to provide dependable control and flexibility for small- to medium-sized projects. With 24 digital inputs (22 ordinary + 2 fast inputs for high-speed counting) and 16 relay outputs, it can link a wide range of industrial equipment, such as sensors, motors, and actuators.

The Schneider TM218LDA40DRN PLC offers numerous communication protocols, including Modbus TCP and Ethernet/IP, allowing for seamless connection with other systems such as HMIs, SCADA, and cloud-based platforms. It uses a 100-240V AC power source, making it appropriate for a variety of power situations, and can survive extreme industrial circumstances with a temperature range of 0°C to 55°C. The TM218LDA40DRN has 1MB of RAM for program execution and 1MB of flash memory for data storage, which allows for fast handling of complicated control tasks.

Its compact form and user-friendly programming software (EcoStruxure Machine Expert) enable quick setup and efficient operation, lowering downtime and maintenance expenses. The controller supports IEC 61131-3 programming languages such as ladder diagram (LD), function block diagram (FBD), and structured text (ST), making it suitable for engineers of various skill levels. Additionally, the TM218LDA40DRN may be expanded with up to 7 modules for extra I/O or specialized functionality, allowing it to adapt to changing project requirements.

The TM218LDA40DRN combines modern technology with ease of use, making it ideal for applications such as manufacturing, water treatment, energy management, and building automation. Its strong architecture, versatile connection options, and scalability make it a popular choice among engineers worldwide. Whether you need to manage machines, monitor operations, or optimize energy use, this PLC provides dependable performance and long-term value.

Specifications

Product Model	TM218LDA40DRN
Series	Modicon M218 Compact Controller
Supply Voltage	100~240 V AC (50/60 Hz)
Surge Current	35 A (instantaneous)
Dimensions	114 mm (W) × 45 mm (D) × 90 mm (H)
Weight	0.38 kg
Installation Method	Standard DIN rail (TH35-15, compliant with IEC 60715)
Terminal Type	Removable spring terminal supports rapid wiring

Application Scenarios

The TM218LDA40DRN is used in food and beverage companies to manage conveyor belts and sealing machines. For example, its high-speed counters monitor product flow (e.g., 100 bottles per minute), and relay outputs activate pneumatic actuators to seal packaging. Its extendable design enables the addition of temperature sensors for heat-sealing quality control, assuring consistent performance even in 24-hour operations.

This PLC is used in municipal water systems to monitor water levels with float sensors. The TM218LDA40DRN's relay outputs turn on and off pumps to keep reservoir levels stable, eliminating dry running. In wastewater plants, it coordinates numerous pumps (for example, three pumps in cycle), lowering energy costs by 20% while assuring continuous supply.

The TM218LDA40DRN interacts with thermostats and dampers to provide smart HVAC control. Its digital inputs receive room temperature information, while relay outputs control fan speeds and valve positions. This saves 30% of energy in office towers by automating heating/cooling based on occupancy detected by motion sensors.

FAQ

Q: What is the Schneider TM218LDA40DRN used for?

A: The Schneider TM218LDA40DRN is a compact programmable logic controller (PLC) designed for industrial automation. It's ideal for packaging machines, textile equipment, and small water treatment systems where reliable control and flexibility are needed. With 40 built-in I/O points and expandable modules, it handles tasks like motor control, sensor monitoring, and data communication efficiently.

Q: How many I/O points does the TM218LDA40DRN have?

A: The TM218LDA40DRN features 24 digital inputs (including 2 high-speed inputs for fast counting) and 16 relay outputs (for switching high-power devices like motors or solenoids). This setup is perfect for applications requiring quick response times, such as conveyor belts or automated assembly lines.

Q: What power supply does the TM218LDA40DRN require?

A: The TM218LDA40DRN operates on 100–240V AC (50/60 Hz) with a maximum power consumption of 50 VA. Use a stable power source to prevent voltage fluctuations that could affect performance. A slow-blow 2A fuse is recommended for protection.
