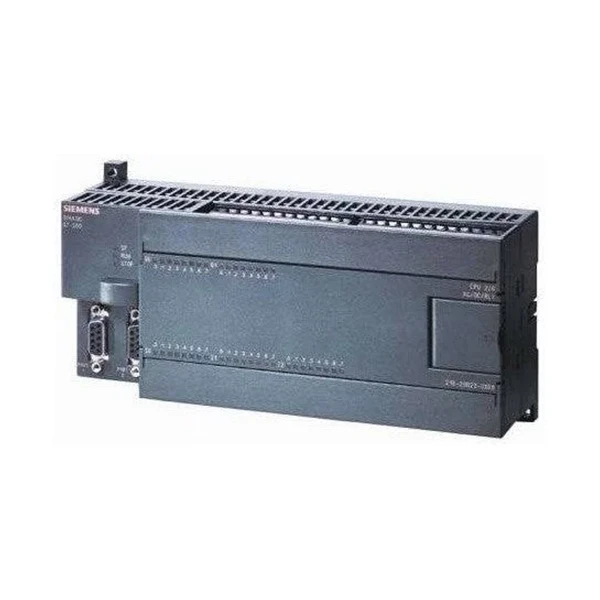

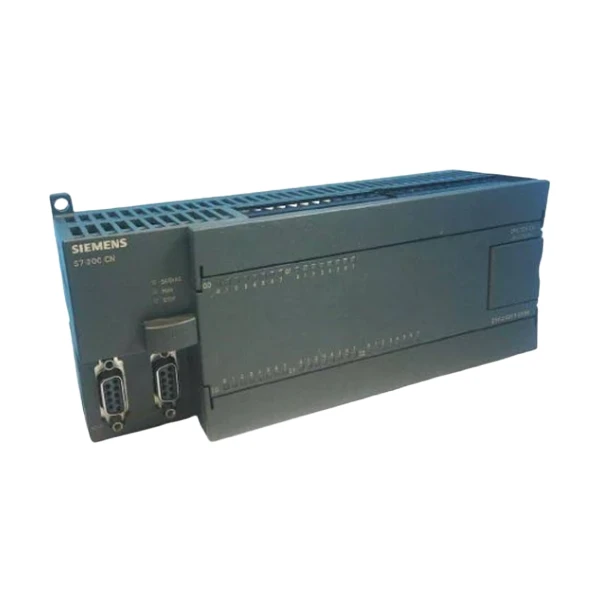

Siemens 6ES7216-2AD23-0XB8 CPU

Brand：Siemens
Model：6ES7216-2AD23-0XB8

Inventory situation: Goods are available in stock.

Product Application Scenarios

The 6ES7216-2AD23-0XB8 is used in the manufacturing of automobile parts to control conveyor belts, robotic arms, and quality inspection sensors. For example, it can collect data from proximity sensors to determine part placement and control robotic arms to correctly assemble components. The PLC's built-in PROFINET interface connects it smoothly to HMIs (human-machine interfaces) and other devices, allowing operators to monitor real-time production parameters such as cycle time and defect rates. The module's 1MB user memory may accommodate sophisticated logic programs, which are required for managing numerous manufacturing phases at the same time.

This PLC is used by food and beverage firms to control fast-moving packaging lines. It coordinates filling machines, labelers, and sealers by analyzing data from weight sensors and optical cameras. The 6ES7216-2AD23-0XB8 provides precise control of pneumatic valves and motors, altering packaging speeds to match product sizes. Its extendable design allows for the addition of analog modules (for example, temperature or pressure control), making it ideal for sophisticated machines that require both digital and analog data processing.

The 6ES7216-2AD23-0XB8 is designed for industrial energy monitoring, connecting to power meters and smart switches to track electricity usage across many manufacturing zones. It assesses real-time energy use, detects inefficient equipment, and sounds alerts for overloads. The Ethernet connector on the PLC allows you to transfer data to cloud platforms for long-term analysis, which helps with predictive maintenance and cost-cutting measures. Its built-in high-speed counters measure motor rotations, allowing it to optimize pump and fan operations in HVAC systems.

Related Products

Siemens S7-200	6ES7 216-2BD23-0XB0
	6ES7 216-2AD23-0XB0

Product features

As a high-cost-performance small PLC, the Siemens 6ES7216-2AD23-0XB8 module has 40 inbuilt I/O points and can be expanded with up to 7 additional modules, making it an excellent choice for operating packaging machines and assembly lines. It also has 30 kHz high-speed counting to properly capture equipment speeds, 20 kHz pulse output to directly drive stepper motors, and 8 PID control algorithms for exact temperature regulation. The SIMATIC S7-200 CN's two RS-485 interfaces support the Modbus RTU protocol, which enables smooth interaction with Siemens variable frequency drives and touchscreens.

The 6ES7216-2AD23-0XB8 performs well in common industrial environments thanks to its 24V DC power supply. Its small size (196 mm wide, 80 mm high, and 62 mm deep) makes it ideal for installation in control panels with limited space. The PLC has two built-in RS-485 communication ports that enable PPI, MPI, and FreePort protocols for connecting to HMIs, sensors, and other automation devices. This makes it ideal for applications that require real-time data interchange and remote monitoring.

The 6ES7216-2AD23-0XB8 has 16/24 KB of program memory and 10 KB of data memory, which is more than enough to store complicated control logic and operational data. It supports up to seven expansion modules, allowing customers to increase I/O capacity to 248 digital points or 35 analog points, making it scalable to meet growing automation requirements. The PLC also has sophisticated capabilities, including high-speed counters and pulse outputs, which are required for precise motion control in applications such as conveyor belt speed regulation and robotic arm positioning.

With CE certification, the 6ES7216-2AD23-0XB8 satisfies worldwide safety and quality standards, ensuring dependable performance even in tough industrial environments. STEP 7 Micro/WIN, its user-friendly programming software, makes it simple to set up PLCs even for those who are unfamiliar with them. The PLC is widely utilized in a variety of industries, including packing machines and water treatment systems, to improve operational efficiency and reduce downtime.

FAQ

Q: Does the 6ES7216-2AD23-0XB8 have a direct replacement model (such as the S7-200 SMART or S7-1200 series)?

A: The S7-200 SMART and S7-1200 series can serve as alternatives to the 6ES7216-2AD23-0XB8, but they are not strictly direct replacement models.

Q: Do the transistor outputs support high-frequency switching (such as controlling solenoid valves)? What is the maximum load current per point?

A: The Siemens 6ES7216-2AD23-0XB8 has transistor output types, and this module's transistor outputs support high-frequency switching applications, suitable for controlling devices like solenoid valves. The maximum load current per point is 0.75A.

Q: Can the pulse outputs of the 6ES7216-2AD23-0XB8 achieve mixed control of PTO (pulse train output) and PWM (pulse width modulation)?

A: In the Siemens S7-200 series PLCs, the pulse output functionality of the 6ES7216-2AD23-0XB8 module can achieve mixed control of PTO (pulse train output) and PWM (pulse width modulation).
