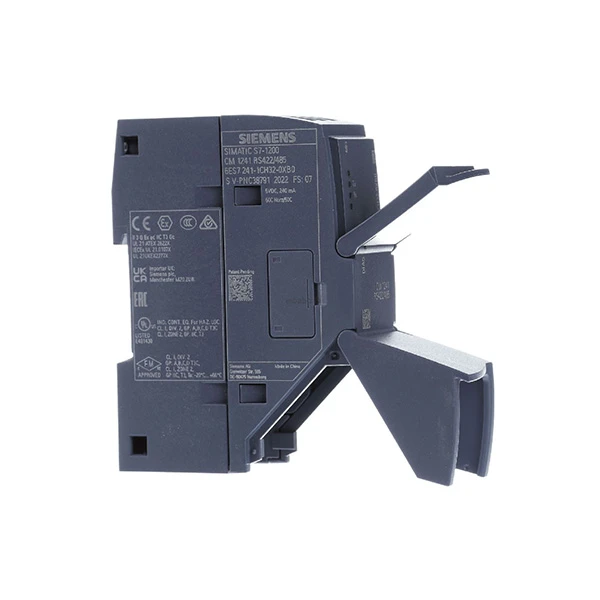

Siemens 6ES7241-1CH32-0XB0

Brand: Siemens
Model: 6ES7241-1CH32-0XB0

Inventory situation: Goods are available in stock.

Product features

The Siemens 6ES7241-1CH32-0XB0 is a communication module that works well with Siemens S7-1200 series PLCs (Programmable Logic Controllers). Siemens 6ES7241-1CH32-0XB0 makes it easy for PLCs to talk to other devices. PLCs are like "brains" for factory machines. This module has two RS485 communication ports. These ports let it connect to sensors, motors, and small control panels in a factory, among other things. For instance, if a factory uses temperature sensors to check how hot machines are, the Siemens 6ES7241-1CH32-0XB0 can send the data from the sensors to the S7-1200 PLC. This way, workers will know if the machine is too hot.

The Siemens 6ES7241-1CH32-0XB0 is made to be simple to use, even for people who aren't very tech-savvy. Workers can easily snap it into place on the S7-1200 PLC without needing any special tools. It also works well in normal factory settings, where temperatures range from 0°C to 60°C (which is where many factories work) and it doesn't break easily when machines nearby vibrate. This makes the Siemens 6ES7241-1CH32-0XB0 a good choice for long-term use.

Siemens 6ES7241-1CH32-0XB0 is a popular choice among factories because it works well with other Siemens S7-1200 parts. Siemens 6ES7241-1CH32-0XB0 is a good choice if you need a communication module for your S7-1200 PLC. It helps machines share information quickly, which speeds up production lines and cuts down on mistakes. Siemens 6ES7241-1CH32-0XB0 keeps all of your devices connected and working well, whether you're in charge of a line of packaging machines or keeping an eye on water pumps in a factory.

Specifications

Power consumption	Typical value 1.1 W
Protection rating	IP20 (front)
Operating temperature	-20°C to +60°C (horizontal mounting)
Storage temperature	-40°C to +70°C
Communication range	Up to 1000 meters
Supply voltage	24 V DC (tolerance range 20.4–28.8 V DC)
Certification standards	CE, CSA, UL, cULus, FM, RCM
Dimensions	30 mm (W) × 100 mm (H) × 75 mm (D)

Application scenarios

The Siemens 6ES7241-1CH32-0XB0 is frequently used in small manufacturing facilities. For instance, the S7-1200 PLC must manage equipment such as conveyor belts and part assemblers in a workshop that produces tiny electronic components. Additionally, it must gather information from sensors that verify that parts are manufactured correctly. The Siemens 6ES7241-1CH32-0XB0 module enables RS485 or RS232 communication between the PLC and these sensors and devices. This guarantees smooth data flow, allowing the PLC to swiftly gather data from sensors and issue control commands to machinery, ensuring the production line never stops.

Small-scale production lines for food and drink are another application for the Siemens 6ES7241-1CH32-0XB0. To prevent waste in these lines, machinery such as filling machines and mixers must precisely cooperate. This coordination is frequently handled by the S7-1200 PLC. The Siemens 6ES7241-1CH32-0XB0 facilitates the PLC's communication with the mixers' pressure gauges and temperature sensors. Through the module, these sensors provide the PLC with real-time information about the temperature and pressure of the mixture. In order to ensure that the food or beverage satisfies quality standards, the PLC then uses this data to modify the mixer's speed or heating. The module's durability allows it to withstand the mildly humid conditions frequently found in food production without degrading.

FAQ

Q: What is the Siemens 6ES7241-1CH32-0XB0?

A: The Siemens 6ES7241-1CH32-0XB0 is a serial communication module (CM) from the SIMATIC S7-1200 PLC family. Specifically, it is the CM 1241 RS422/485 module, providing a versatile 9-pin Sub-D interface for point-to-point serial data exchange in industrial automation systems.

Q: Which PLC systems is the CM 1241 module compatible with?

A: The 6ES7241-1CH32-0XB0 is designed exclusively for use with the SIMATIC S7-1200 programmable logic controller platform. It installs directly onto the DIN rail to the right of the S7-1200 CPU.

Q: What software is used to configure this communication module?

A: You configure the module using STEP 7 Basic (TIA Portal), which provides an integrated parameterization environment for setting up the protocols and communication parameters.

Q: What is the maximum communication distance for RS422/485 with this module?

A: Using RS422 or RS485, the maximum communication distance can extend up to 1000 meters with a shielded cable, although the actual reliable distance depends on the baud rate and whether terminal resistors are installed.
