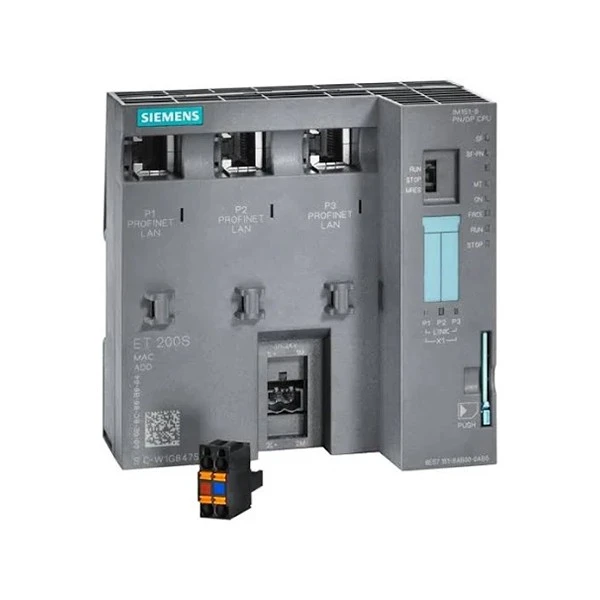

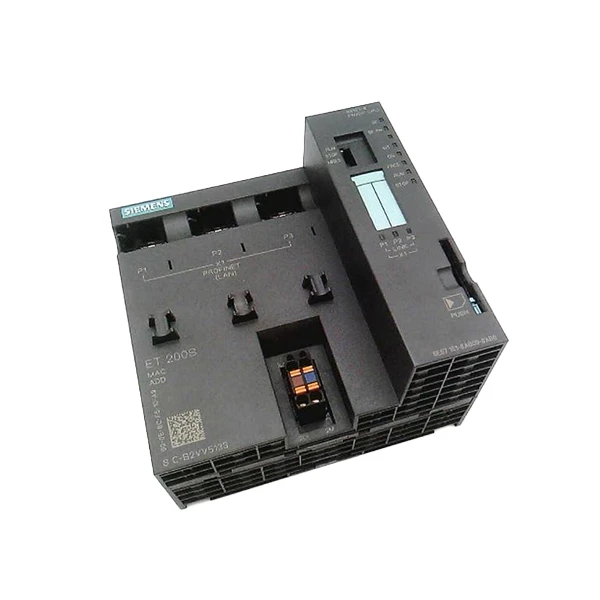

Siemens PLC 6ES7151-8AB01-0AB0(30)

Brand：Siemens
Model：6ES7151-8AB01-0AB0

Inventory situation: Goods are available in stock.

Product Description

Siemens 6ES7151-8AB01-0AB0;IM151-8 PN/DP CPU Module;Integrated PROFINET DP Controller;ET 200S Distributed I/O System;SIMATIC DP Master Station Module;Industrial Controller with IP20 Protection;PROFINET RT/IRT Real-time Control;PLC with 16-channel PID Controller;

Specifications

Product Type	CPU module of the ET 200S distributed I/O system
Number of Ports	2×RJ45
Electrical Isolation	1500V AC
Operating Temperature	-20℃ to +60℃
Working Memory	192KB (program memory) + 64KB (data memory)
Maximum Number of I/O Points	12,288 (digital) + 8,192 (analog)
Dimensions	120mm × 75mm × 119.5mm (Width × Height × Depth)
Weight	0.387kg (including integrated interfaces)

Product features

The Siemens 6ES7151-8AB01-0AB0 is an ET200S IM151-8 PN/DP CPU Interface Module intended for use with the SIMATIC S7 DP IM 151-8 PN/DP CPU Interface Module and the ET 200S Distributed I/O System. It has an integrated S7-CPU 314 and 192KB of memory for user applications and data, plus 64KB of retentive memory.

The Siemens 6ES7151-8AB01-0AB0 serves as the intelligent core of the ET 200S distributed system, integrating both PROFINET RT/IRT and PROFIBUS DP dual master functionalities. With 192KB of high-speed working memory and a bit operation speed of 0.05μs, it provides millisecond-level response for automotive welding lines and high-speed packaging machines. Its 4-axis pulse-positioning output (±1 pulse accuracy) directly drives servo motors, combined with 16 channels of PID closed-loop control for precise adjustments of temperature and pressure.

Compared to traditional PLCs, the Siemens 6ES7151-8AB01-0AB0 stands out with its dual network integration capabilities. PROFINET IRT enables multi-axis servo synchronization, while PROFIBUS DP is compatible with older slaves, saving renovation costs. Its 1500V electrical isolation and EN 61000 electromagnetic compatibility certification ensure zero signal loss in environments dense with variable frequency drives, with an MTBF exceeding 100,000 hours.

FAQ

Q: Does the Siemens 6ES7151-8AB01-0AB0 have a direct replacement model (such as in the S7-1500 series)?

A: Some CPU modules in the S7-1500 series, such as the CPU 1511-1 PN, can meet the functional and performance requirements for some applications that originally used the 6ES7151-8AB01-0AB0. The S7-1500 series represents Siemens' next generation of automation controllers, offering higher performance, stronger processing capabilities, and more features.

Q: Can the 6ES7151-8AB01-0AB0 be seamlessly integrated with existing ET 200S expansion modules (such as 6ES7138-4HA00-0AB0)?

A: The Siemens 6ES7151-8AB01-0AB0 is generally capable of working well with existing ET 200S expansion modules (like the 6ES7138-4HA00-0AB0), but the strict definition of "seamless integration" can be influenced by several factors.

Q: Is the accuracy and frequency of the 4-axis pulse output suitable for servo motors (such as the Siemens V90)?

A: The 4-axis pulse output of the Siemens 6ES7151-8AB01-0AB0 is typically compatible with the accuracy and frequency needed for Siemens V90 servo motors. However, there are specific considerations that need to be taken into account, and a detailed evaluation and tuning should be conducted based on the actual application conditions.
