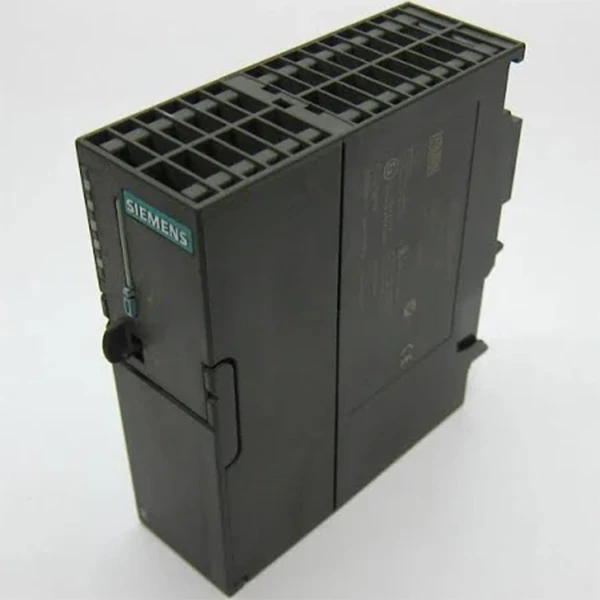

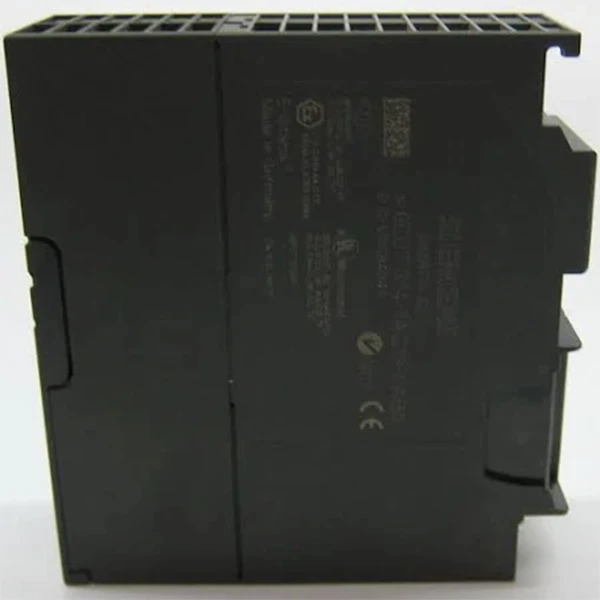

Simatic S7-300 CPU 314

Model: 6ES7314-1AG14-0AB0
Series: S7-300
CPU type: 314
Input/ output: supports a variety of I/O modules

Power supply: 24V DC
Working temperature: 0 ℃ ~60 ℃
Interface: Integrated RS485 interface, with MPI communication function

1. S7-300 series modules have good compatibility and scalability and can be upgraded and expanded according to system development and changes.
2. Open architecture can be integrated with other equipment and systems to meet different automation needs.
3. 6ES7314-1AG14-0AB0 CPU provides solid computing power and can efficiently handle complex control logic.
4. Large working memory, with 128KB of working memory, providing sufficient space for program running.
5. Equipped with 64KB non-volatile memory to reduce production interruptions and equipment failures caused by data loss
6. Use plug-in MMC as the loading memory, which can support a maximum capacity of 8MB, providing a broad space to store various programs, configuration files, etc.
7. Integrated RS485 interface, with powerful MIP communication function, capable of stable data exchange with other devices and realizing distributed I/O connection

To ensure best performance and reliability when using the Simatic S7-300 CPU 314, adhere to the following rules. For starters, this industrial controller requires specific environmental conditions. The Simatic S7-300 CPU 314 performs best at temperatures ranging from 0°C to 60°C and requires protection from dust, moisture, and vibration. Avoid exposing it to high humidity or intense sunshine, since these can cause hardware failure. Ensure that the installation location meets EMC (electromagnetic compatibility) standards by utilizing shielded connections and correct grounding to reduce interference that could interrupt the Simatic CPU 314's stable performance.

Precision installation is required to support the robust functionality of the Simatic S7-300 CPU 314. Secure the CPU to a DIN rail with M4 screws or equivalent, avoiding direct pressure on the module's front panel. The flush-mount architecture necessitates a stable mounting platform to prevent physical stress, which is critical for the CPU's longevity in industrial environments. Install the CPU 314 in a closed cabinet or enclosure with restricted access for safety reasons, as it is categorized as a "open component" that must be protected from inadvertent contact.

Power supply is another important consideration for the Simatic S7-300 CPU 314. To ensure consistent energy delivery, use a 24V DC power source (such as the Siemens PS307) with short-circuit protection. Verify the power module's capability, as the CPU provides 1.2A of 5V power to linked modules. Incorrect cabling, such as inverting the L+ and M wires, will break the internal fuse and prevent the Simatic S7-300 CPU 314 from functioning properly. Ensure that the power supply's PE (protected earth) connector is properly grounded to avoid electrical problems and improve system safety.

When using the Simatic S7-300 CPU 314, there may be software and hardware compatibility difficulties. To ensure complete support for the CPU's features, always program and configure using STEP 7 V5.5 or higher. Check for I/O address conflicts in the hardware setup, as undefined addresses can cause SF (system fault) issues that interrupt the CPU 314's performance. When adding modules, make sure they are mentioned in the S7-300 module compatibility matrix to avoid communication issues and ensure seamless integration.

By following these guidelines, customers can extend the life of the Simatic S7-300 CPU 314 and improve its efficiency and interoperability with industrial automation systems. Regular maintenance, proper installation methods, and proactive troubleshooting can help you prevent costly downtime and guarantee that the Simatic S7-300 CPU 314 runs smoothly in a variety of industrial situations.
