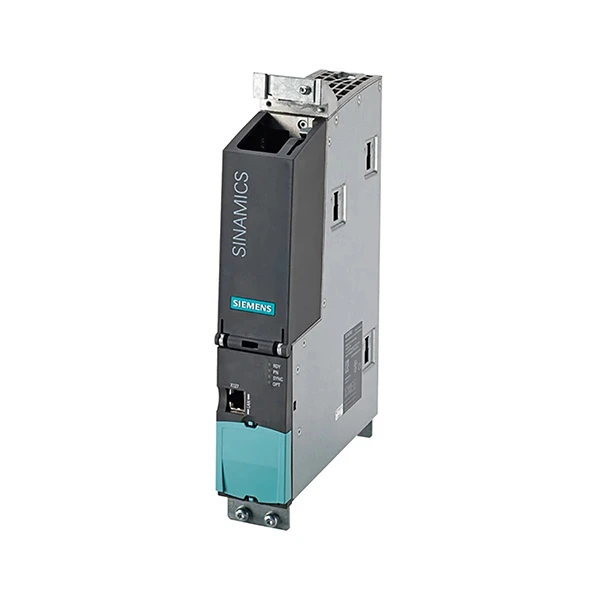

Siemens 6SL3040-1MA01-0AA0 SINAMICS S120(49)

Brand：Siemens
Model：6SL3040-1MA01-0AA0

Inventory situation: Goods are available in stock.

Product Description

Siemens 6SL3040-1MA01-0AA0;CU320-2 PN Control Unit;SINAMICS S120 Controller;Profinet Multi-axis Controller;Industrial Automation PLC Integrated Module;Drive-Cliq Expansion Controller;8-axis Linked Motion Controller;

Specifications

Operating Voltage	DC 24V (20.4 - 28.8V)
Maximum Power Consumption	1.0A
Power Consumption	3.5mA at 24V DC
Communication Interfaces	Profinet (2), Ethernet (1), Drive-Cliq (4)
Maximum Number of Axes	8 axes
Dimensions	226×300×50mm (Width × Depth × Height)
Operating Temperature	0-55℃
MTBF	≥150,000 hours

Product features

The Siemens SINAMICS control unit CU320-2 PN is identified by the code 6SL3040-1MA01-0AA0. The Siemens SINAMICS CU320-2 PN control unit has established itself as a benchmark product in multi-axis motion control due to its superior technological architecture and exceptional performance.

The 6SL3040-1MA01-0AA0, a major component of the SINAMICS S120 system, uses digital control algorithms and Flux Current Control (FCC) technology to provide dual optimization of motor dynamic response and stability. By continuously monitoring the motor's flux and current, the system can exactly match load needs, maintaining torque output while reducing energy usage by 10% to 20%.

The 6SL3040-1MA01-0AA0 has a programmable V/f curve feature, which allows users to adjust control parameters based on the characteristics of different loads, such as fans and pumps, thereby considerably increasing equipment operational efficiency. This control unit has a diverse collection of communication interfaces, including two Profinet, four Drive-Cliq, and one Ethernet interface, allowing for smooth integration of industrial Ethernet and fieldbus protocols.

The Siemens 6SL3040-1MA01-0AA0 also has built-in overload protection (150% load for 60 seconds) and fault diagnosis functions, which may swiftly detect and isolate abnormalities, decreasing downtime. This control unit is also compatible with third-party motors and devices, and it enables 8-axis coordinated control, making it suited for a variety of industry applications such as machinery manufacture, chemical processing, and energy.

FAQ

Q: Does the synchronization accuracy of ±0.01% depend on Siemens-specific motors or encoders?

A: The Siemens 6SL3040-1MA01-0AA0 control unit has a synchronization precision of ±0.01% but does not rely solely on Siemens-specific motors or encoders. However, utilizing Siemens own goods has several advantages.

Q: Is derating required in a 60°C high-temperature environment? What is the maximum number of axes after derating?

A: When used at 60°C, the Siemens SINAMICS CU320-2 PN control unit requires derating. It is recommended that servo axis control be limited to six axes and V/F control to ten axes. The number of axes should be determined based on cooling circumstances, load characteristics, and system stability.

Q: Is the CU320-2 PN series at risk of being discontinued?

A: The CU320-2 PN is not yet discontinued, however users should be mindful of prospective technological replacement hazards. It is recommended that users evaluate their upgrade path in stages based on business needs: if long-term technical leadership is desired, prioritize preparing the transition to the S210; if cost containment is critical, maintaining the current situation and stocking spare parts is recommended.
