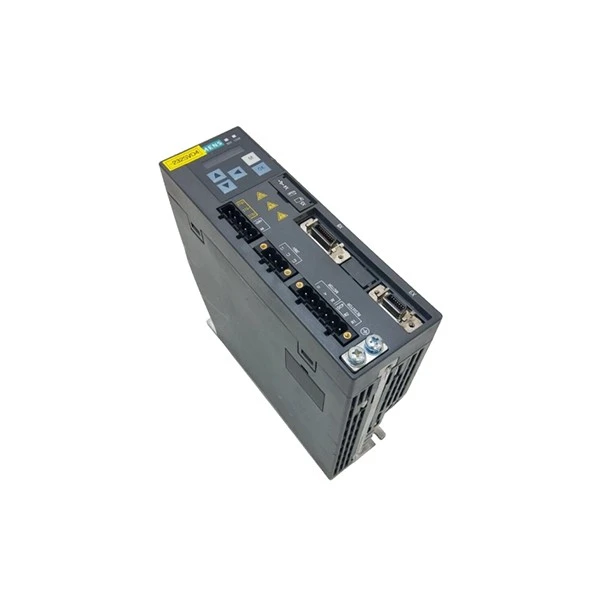

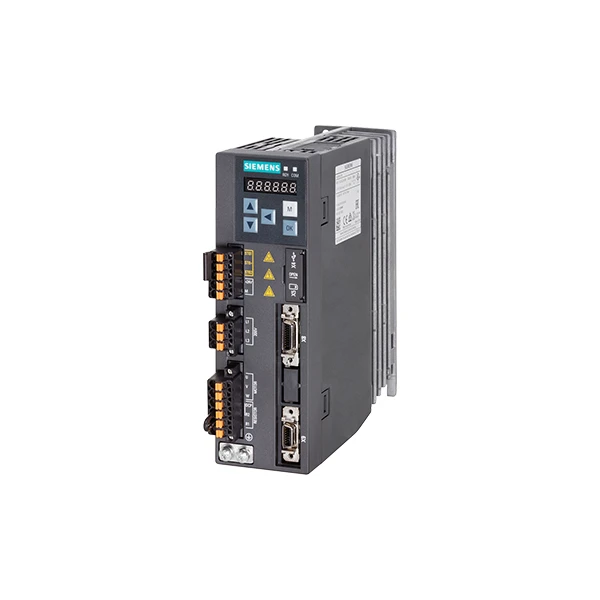

Siemens 6SL3210-5FB10-4UF1

Brand: Siemens
Model: 6SL3210-5FB10-4UF1

Inventory situation: Goods are available in stock.

Product features

Siemens 6SL3210-5FB10-4UF1 is a high-performance servo drive from Siemens' SINAMICS V90 series, designed for precise and dependable industrial motion control. It runs on a 200-240V AC input voltage and is compatible with both single-phase and three-phase power supply (with a voltage fluctuation range of -15% to +10%), making it suitable for a variety of electrical configurations. The input current is 5.0A for single-phase power and 3.0A for three-phase power, while the output provides a constant 2.6A current and an output frequency range of 0-330Hz, precisely matching 0.4kW servo motors for smooth operation.

One of Siemens 6SL3210-5FB10-4UF1's main advantages is its wide range of control modes, which include external pulse position control, internal setpoint position control, speed control, and torque control. This allows it to respond to a wide range of motion requirements, from simple positioning to complicated speed regulation. It also includes numerous communication interfaces (PROFINET, USS, Modbus RTU, and PTI) for smooth connection with PLCs, HMIs, and other industrial equipment, simplifying system integration.

This dependable Siemens servo drive prioritizes safety, with a built-in Safe Torque Off (STO) function that instantly cuts off motor torque in emergency situations to protect operators and machines. With a 300% overload capacity, it can withstand rapid load surges without sacrificing performance, assuring endurance in tough industrial settings. The high positioning accuracy is another characteristic, allowing 1MHz differential pulse input and an adjustable electronic gear ratio (1/50 < A/B < 200), meeting the precision needs of applications like small-part processing and packing line operations.

Specifications

Model	6SL3210-5FB10-4UF1
Product Series	SINAMICS V90 Servo Drive
Input Voltage	200-240V AC (Single-phase / Three-phase universal)
Input Current	Single-phase 5.0A / Three-phase 3.0A
Adapted Motor Power	0.4 kW
Power Frequency	45-66 Hz
Protection Class	IP20

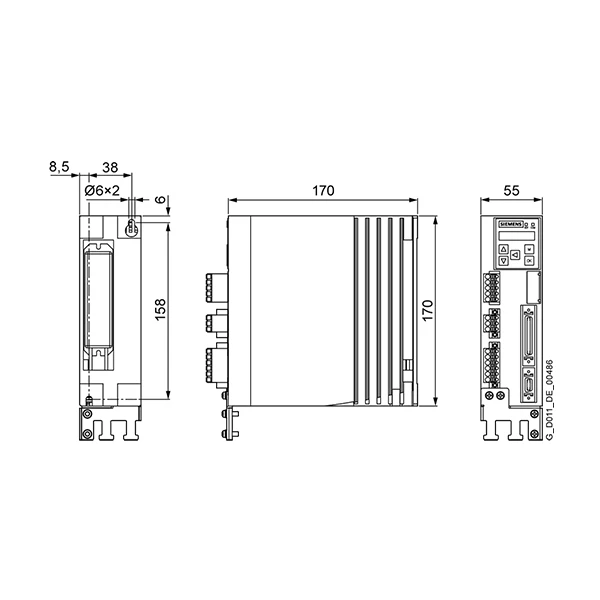

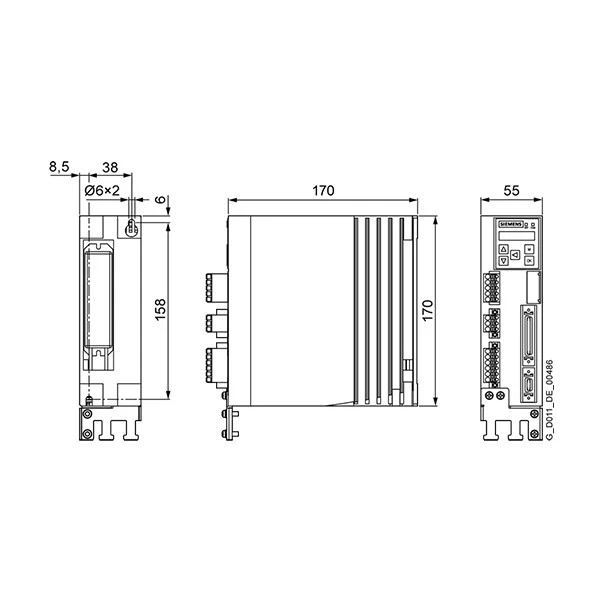

Dimensions	55mm (W) × 170mm (H) × 170mm (D)

Precautions

First, pay particular attention to the input voltage requirement: the drive operates on 200-240V AC power (single-phase or three-phase), and you must avoid connecting it to voltages beyond the -15%/+10% fluctuation range. Using incorrect voltage can damage the internal components of the Siemens 6SL3210-5FB10-4UF1 or cause unexpected shutdowns.

Second, the installation environment is critical for this 0.4 kW Siemens servo drive. It has an IP20 protection certification, making it dust-resistant but not waterproof, so never place it in moist, rainy, or water-splattered environments. Choose a well-ventilated environment with a temperature range of 0℃ to 45℃. Avoid direct sunshine, high-temperature heat sources, and dusty areas. The compact size (55mm×170mm×170mm) permits installation in tight areas, but keep enough clearance for heat dissipation to avoid overheating.

Third, electrical connection demands precise operation. Before wiring, shut off all power sources to avoid electric shock. When connecting the drive to servo motors, PLCs, or other devices, make sure the wiring is tight and proper; weak connections might cause communication failures or unstable motion control. To ensure seamless data transfer using communication interfaces such as PROFINET, USS, or Modbus RTU, utilize suitable connections and adhere to standard wiring rules. Never change the internal circuits of Siemens 6SL3210-5FB10-4UF1 without professional assistance, as this may void the warranty and pose a safety risk.

FAQ

Q: What is the Siemens 6SL3210-5FB10-4UF1, and what is it used for?

A: The Siemens 6SL3210-5FB10-4UF1 is a SINAMICS V90 servo drive. It is a small digital drive that controls synchronous servo motors, namely the SIMOTICS S-1FL6 series. It is designed for precise motion control jobs in automation, including tiny machines, packaging equipment, conveyor systems, and material handling applications.

Q: What motor should I pair with the 6SL3210-5FB10-4UF1 drive?

A: It is best combined with a SIMOTICS S-1FL6 servo motor in the appropriate power range. For example, a popular matched motor is the 1FL6034 series, which has a rated speed of 3000 rpm and a rated torque of 1.27 Nm. The system can handle motors with various encoders (e.g., incremental or absolute) to suit accuracy requirements.

Q: Which communication interfaces are integrated into Siemens 6SL3210-5FB10-4UF1?

A: Siemens 6SL3210-5FB10-4UF1 has several built-in communication interfaces, including PROFINET, USS, Modbus RTU, and PTI. These interfaces allow for smooth connection to PLCs, HMIs, and other industrial equipment, easing system integration for factory automation.
