ABB CP630 1SAP530100R0001

Brand: ABB
Model: CP630 1SAP530100R0001

Inventory situation: Goods are available in stock.

Product features

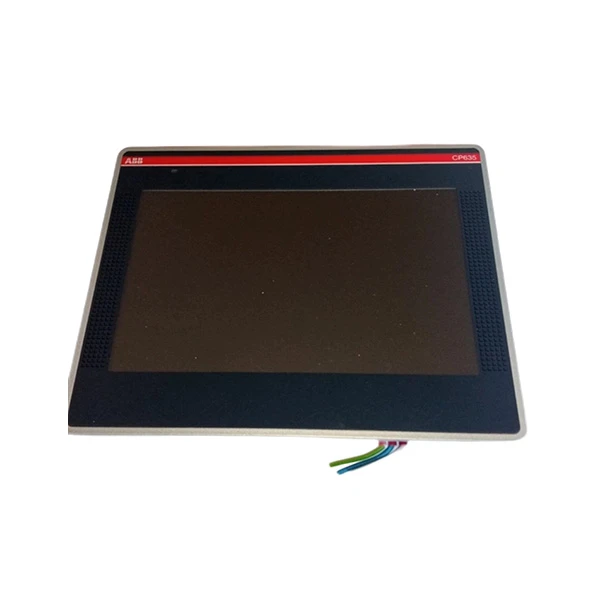

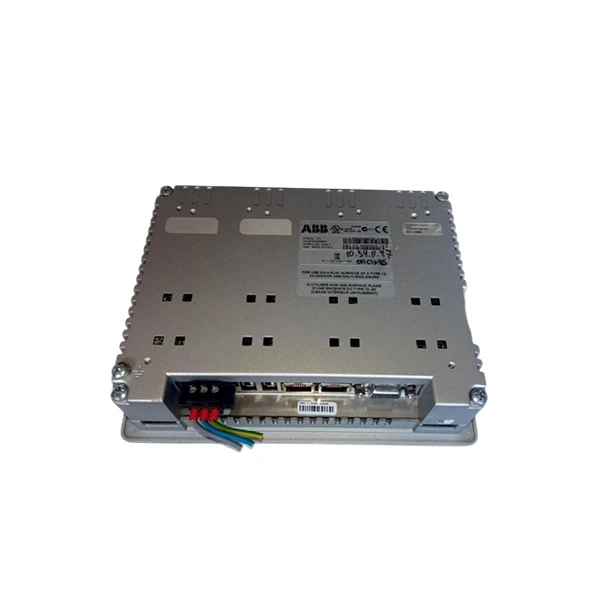

Designed for industrial automation systems, the ABB CP630 1SAP530100R0001 is a 5.7-inch TFT touchscreen HMI control panel. This small device, which was constructed by ABB, a world leader in power and automation technology, combines dependable performance with easy-to-use operation for use in the water treatment, energy, and manufacturing sectors.

The CP630's 320x240 pixel resolution and 64K color display provide vivid visualization of process data, machine status, and operator interfaces. Its front IP66-rated shell prevents dust and water penetration, making it ideal for demanding locations such as manufacturing floors or outdoor facilities. The unit supports several communication protocols, including Modbus TCP and EtherNet/IP (compatible with ABB drives and PLCs), allowing for simple integration with existing industrial networks.

The CP630 provides flexible communication to sensors, actuators, and host computer systems via two 100 Mbit Ethernet ports, one RS232/422/485 interface, and two USB 2.0 host slots. Its user-programmable memory and eight-level password protection provide security and adaptability for mission-critical operations. The module also has two expansion slots for future upgrades, such as wireless connectivity and extra I/O modules.

The CP630 is ideal for machine monitoring, process management, and remote diagnostics since it provides real-time data access, making complex workflows simpler. Its user-friendly interface and multilingual support shorten training time, while peer-to-peer communication capabilities improve system efficiency. Whether updating an existing setup or implementing a new automation line, the ABB CP630 1SAP530100R0001 provides cost-effective performance and long-term reliability in industrial HMI applications.

Specifications

Size	5.7 inches (4:3 aspect ratio)
Resolution	320×240 pixels
Display Colors	64K True Color
Protection Level	Front panel IP66 (dust and water resistant), Housing IP20 (solid foreign objects)
International Certification	CE, FCC, RoHS
Expansion Capabilities	2× expansion slots (supporting communication modules or function cards)
Storage Expansion	1× SD card slot
Operating Temperature	0°C to +50°C (no degradation)

Application Scenarios

Food and Beverage Processing

In food factories, the ABB CP630 1SAP530100R0001 manages packaging lines and pasteurization systems. Its IP66 front panel withstands daily washdowns with high-pressure water jets (up to 100 bar) and chemical cleaners, ensuring operation in wet, hygienic zones. The 5.7-inch 64K-color TFT screen displays critical parameters like temperature (accurate to ±0.5°C) and production rates (up to 1,200 units per hour), while its 256 MB RAM processes data 40% faster than basic HMIs, reducing downtime during recipe changes. The 8-level password protection secures access to sensitive settings, complying with FDA and GMP standards.

Chemical Manufacturing

Chemical plants use the ABB CP630 1SAP530100R0001 to monitor reactor vessels and mixing processes. It connects to PLCs via dual Ethernet, enabling real-time data exchange with 100 Mbps speed-cutting communication delays by 50% compared to single-port HMIs. The panel operates reliably in extreme temperatures (0°C to 50°C) and resists electromagnetic interference from nearby pumps and motors, maintaining data integrity during batch production of 500-liter chemical mixtures. The 40,000-hour LED backlight ensures continuous operation for 5 years without replacement.

FAQ

Q: What are the exact display specifications of the CP630?

A: The ABB CP630 features a 5.7-inch TFT color LCD with LED backlight and a 4:3 aspect ratio. Display resolution is 320 × 240 pixels with support for 64K (65,536) colors. The analog resistive touchscreen is covered by glass and plastic film, designed for reliable single-touch operation in glove-friendly industrial environments. The LED backlight has a typical service life of 40,000 hours at 25°C.

Q: What are the physical dimensions, weight, and housing materials?

A: The CP630 measures 187 mm (W) × 147 mm (H) × 51 mm (D) with a product net weight of 1.15 kg. The front frame is constructed from Zamak (zinc-aluminum alloy), while the reverse side uses aluminum, providing robust mechanical durability for industrial environments.

Q: What is the memory architecture of the CP630?

A: The unit features 256 MB of DDR RAM for program execution and 128 MB of flash disk for user data storage. This memory configuration supports HMI projects up to 30 MB total application memory.

Q: What are the power supply specifications?

A: The CP630 requires a nominal 24 V DC power supply with an input range of 18 to 30 V DC (tolerance: 18 to 32 V DC per IEC standards). Power consumption is 16.8 W maximum. The unit includes a rechargeable lithium battery (not user-replaceable) for real-time clock backup.

Q: What software is required for programming the CP630?

A: The CP630 requires PB610 Panel Builder 600 engineering software, which is fully compatible with the entire CP600 control panel platform. The runtime license is included with the CP630. Panel Builder 600 V4.5 is integrated into the ABB Ability™ Automation Builder engineering suite, which can be downloaded via the Automation Builder installer. For use with Panel Builder 600 V4.5, the CP600 requires BSP V1.3; if this version is not installed, it can be updated automatically via a FAT/FAT32 formatted USB stick
