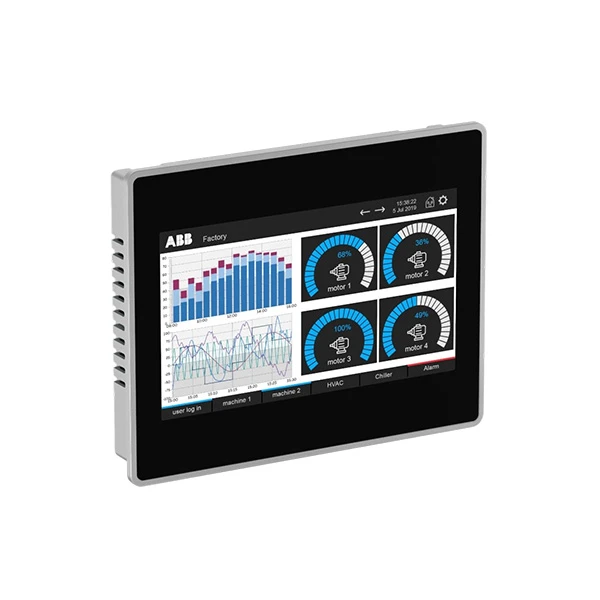

ABB CP6407 3ABD00038951

Brand: ABB
Model: CP630 1SAP530100R0001

Inventory situation: Goods are available in stock.

Product features

The ABB CP6407 3ABD00038951 is a high-performance industrial control panel intended for dependable operation in a variety of automation systems. This 7-inch TFT touch screen panel has a resolution of 800 x 480 pixels and can display 64,000 colors, allowing for crisp and detailed images when monitoring and regulating industrial processes. With two industrial Ethernet connections and two USB 2.0 interfaces, it allows for smooth interaction with other devices and systems, making it perfect for use in manufacturing, energy,

The CP6407 has a wide voltage range of 18-32 V DC and is designed to survive severe conditions, with an operating temperature range of -20°C to +60°C and an IP66 classification for dust and water resistance. Its small size (187 mm x 147 mm x 40 mm) and resistive touch technology allow for simple installation and user-friendly interaction even in harsh industrial environments. The panel also contains a Chromium browser, which allows users to access web-based apps and handle activities more quickly.

With 150,000 KB of memory and 50 levels of password protection, the ABB CP6407 3ABD00038951 provides secure data processing and supports up to 18 languages for global use. It is CE approved and backed by a one-year guarantee, ensuring quality and reliability. Whether employed in nuclear power plants, HVAC systems, or mining operations, this control panel provides precise performance and long-term durability, making it a reliable choice for industrial automation applications. For complete specs and installation instructions, consult the official ABB datasheet, or contact authorized suppliers for tailored solutions.

Specifications

Screen Size	7-inch TFT True Color Touch Screen
Resolution	800×480 pixels, supports 65,536 colors
Touch Technology	Resistive touch screen, supports single-point touch
Brightness	Typical value of 300 cd/m² (industry standard)
Power Supply Voltage	18-32V DC (wide voltage input, supports industrial voltage fluctuations)
Panel Dimensions	187 mm (W) × 147mm (H) × 40mm (D)
Weight	0.92 kg (including mounting bracket)
Operating Temperature Range	-20°C to +60°C

Application Scenarios

In factories, the CP6407 is used as a centralized human-machine interface for conveyor systems, robotic arms, and CNC machines. For example, it may display real-time production metrics (such as speed and downtime) on automotive assembly lines, letting operators to change parameters remotely using the Chromium browser. Its Modbus TCP and Ethernet/IP interoperability provides smooth connection with PLCs and sensors, which improves efficiency in food packaging and electronics manufacturing. The panel's operational temperature range of -20°C to +60°C makes it ideal for cold storage facilities and high-temperature situations such as steel mills.

In power plants and renewable energy systems, the CP6407 monitors essential equipment such as generators, inverters, and transformers. Its active web server capability allows remote access to performance data (such as voltage and energy production), lowering maintenance expenses. For example, in solar farms, operators can use the panel to diagnose inverter difficulties in real time. The wide input voltage range (18-32V DC) ensures reliable performance even under variable power supply conditions, making it ideal for off-grid applications.

The CP6407 helps business buildings improve HVAC systems by showing temperature/humidity data and altering fan speeds. It can also monitor security systems (such as motion sensors and access control) and work with lighting controls to save energy. For example, in office buildings, the panel's customized dashboards assist facilities managers in tracking energy usage patterns and scheduling maintenance.

FAQ

Q: What is the ABB CP6407, and what are its core features?

A: The ABB CP6407 is a high-performance 7-inch TFT touchscreen control panel designed for industrial automation and process control applications. As part of the CP600 series, it combines robust hardware with intuitive software to deliver seamless integration and reliable operation in harsh environments.

Q: Is the ABB CP6407 compatible with other ABB products?

A: Yes, the CP6407 integrates seamlessly with ABB's AC500 PLCs, Freelance DCS systems, and other industrial devices. It supports protocols like Modbus RTU (via RS-485) and Ethernet/IP for broader compatibility . However, it does not natively support Profinet or Profibus, requiring additional gateways for these networks.

For software compatibility, use Panel Builder 600 v4.5 or newer for configuration, and ensure the latest BSP firmware is installed.

Q: What certifications does the ABB CP6407 hold?

A: The ABB CP6407 is CE-certified for compliance with EU directives on electromagnetic compatibility (EMC) and low voltage . While it is not explicitly rated for ATEX or UL environments, its IP66 protection and wide temperature range make it suitable for many industrial settings. For specialized certifications, consult ABB's technical documentation or sales team.
