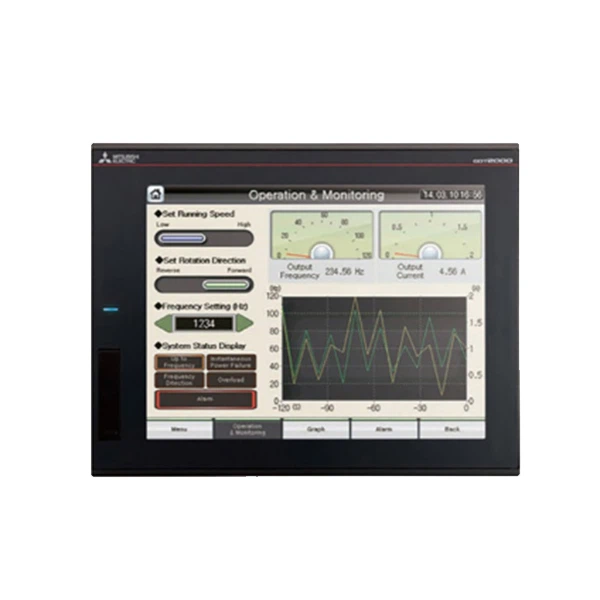

Mitsubishi GT2512-STBD HMI

Brand: Mitsubishi
Model: GT2512-STBD

Inventory situation: Goods are available in stock.

Product Description

The Mitsubishi GT2512-STBD is a high-performance human machine interface (HMI) intended for industrial automation systems. This 12.1-inch touchscreen controller is part of the GOT2000 series and combines modern technology with a user-friendly design, making it suitable for monitoring and regulating complicated industrial operations. The GT2512-STBD is widely utilized in industrial, power generation, and process control applications due to its rugged design and consistent performance.

The GT2512-STBD, which has a TFT color LCD display with 800x600 pixel resolution and 65,536 colors, provides clear graphics and smooth operation even in brightly lit conditions. The analog resistive touch panel can withstand up to 1 million touches, assuring long-term reliability for daily industrial use. Its tiny size (316 mm x 246 mm x 52 mm) and IP67F-rated protection make it ideal for severe industrial environments, withstanding dust, oil, and water impacts.

The GT2512-STBD easily connects to PLCs, sensors, and other industrial equipment thanks to its many communication interfaces, which include Ethernet, USB host/device, RS-232, and RS-422/485. It supports popular protocols such as CC-Link and Modbus, allowing for flexible interaction with both Mitsubishi and third-party systems. The built-in Ethernet connector enables remote access via the GOT Mobile function, which allows users to view real-time data and alter settings from smartphones or tablets.

The GT2512-STBD uses a 24V DC power source and has 80MB of RAM for smooth multitasking. It accepts SD memory cards for data logging and firmware updates, and the built-in real-time clock assures precise time stamps. Mitsubishi's GX Works3 software simplifies programming by providing drag-and-drop capability as well as comprehensive diagnostic capabilities. The HMI also has an FA Transparent capability, which allows direct PC access via the front USB port for quick debugging without opening the control cabinet.

Product Specifications

Width	316 mm
Height	246 mm
Depth	52 mm
Display Size	12.1 inches
Display Resolution	800 x 600 pixels
Installation Hole Dimensions	Width: 298 mm, Height: 218 mm
Weight	Approximately 2.5 kg

Application scenarios

In manufacturing, the Mitsubishi GT2512-STBD is widely used to optimize production lines. It displays real-time data from machines, tracks equipment status, and triggers alerts for maintenance or errors. For example, in automotive assembly plants, it controls robotic arms and conveyor belts, ensuring seamless coordination and reducing downtime. Its intuitive touch interface allows operators to adjust parameters instantly, while the built-in SD card slot stores production logs for quality analysis. This makes it a top choice for smart factories aiming to enhance efficiency and reliability.

Energy management is another key application. The GT2512-STBD monitors renewable energy systems like solar farms and wind turbines, displaying power output, temperature, and grid stability in real time. It integrates with smart grids to balance energy distribution, reducing waste and costs. In power plants, it controls generators and substations, providing operators with clear visuals of complex processes. Its PROFINET compatibility and fast data processing (80 MB RAM) enable seamless integration with PLCs and SCADA systems.

Transportation systems benefit from the GT2512-STBD's reliability and durability. It is used in railway control rooms to monitor train schedules, track maintenance, and manage freight logistics. For instance, it displays live maps of rail networks, alerts operators to delays, and ensures safe signal coordination. In automotive manufacturing, it controls assembly line robots and tracks vehicle production progress, ensuring precision and speed.

Payment And Transportation

Payment Information:
• Accepted Currency Types: Our company accepts payment in both US dollars and Chinese yuan.
• Payment Methods: We support various payment methods, including TT bank transfers, PayPal, and Alipay, to meet your diverse payment needs.

Shipping Methods:
• Express Service: We collaborate with well-known couriers such as DHL, FedEx, UPS, TNT, EMS, and Aramex to provide fast door-to-door shipping services, ensuring that your goods are delivered safely and on time.
• Bulk Shipping: For large shipments, air freight or sea freight can be selected as the most economical and efficient transportation solution.
• Customer Customization: Customers have the right to designate a freight forwarder or other transportation methods that meet their requirements, and we will fully cooperate to arrange the logistics.

FAQ

Q: What are the key display specifications of the Mitsubishi GT2512-STBD?

A: The GT2512-STBD features a 12.1-inch TFT color LCD with SVGA 800 × 600 pixel resolution and 246mm × 184.5mm display area. It supports 65,536 colors with 32-level brightness adjustment. The LED backlight has a lifespan of approximately 60,000 hours at 25°C ambient temperature with 50% display intensity, or 50,000 hours under typical operating conditions. The analog resistive touch panel supports a minimum key size of 2 × 2 dots and withstands 1 million touches with 0.98N operating force.

Q: What memory capacity and processing performance does the GT2512-STBD offer?

A: The GT2512-STBD is equipped with 32 MB ROM (storage memory) and 80 MB RAM (operation memory), with a flash memory write endurance of 100,000 cycles. The high-speed CPU enables responsive HMI operation even under high-load processes, including logging, script execution, alarm management, and device data transmission. The system supports up to 4,096 screens maximum, with a character display capacity of 50 characters × 37 lines for 16-dot standard fonts and 66 characters × 50 lines for 12-dot standard fonts.

Q: What communication interfaces and protocols does the GT2512-STBD support?

A: The GT2512-STBD includes 7 communication ports as standard: 1× Ethernet (RJ45, 10BASE-T/100BASE-TX), 1× RS-232 (D-sub 9-pin male), 1× RS-422/485 (D-sub 9-pin female), 2× USB Host (USB-A, USB 2.0 High-Speed 480 Mbps), 1× USB Device (USB Mini-B, 480 Mbps), and 1× SD card slot (SDHC compatible, max. 32 GB). Supported communication protocols include RS-232, RS-422, RS-485, Ethernet, and CC-Link. The RS-232 and RS-422/485 interfaces each support variable baud rates from 4,800 bps up to 115,200 bps.
