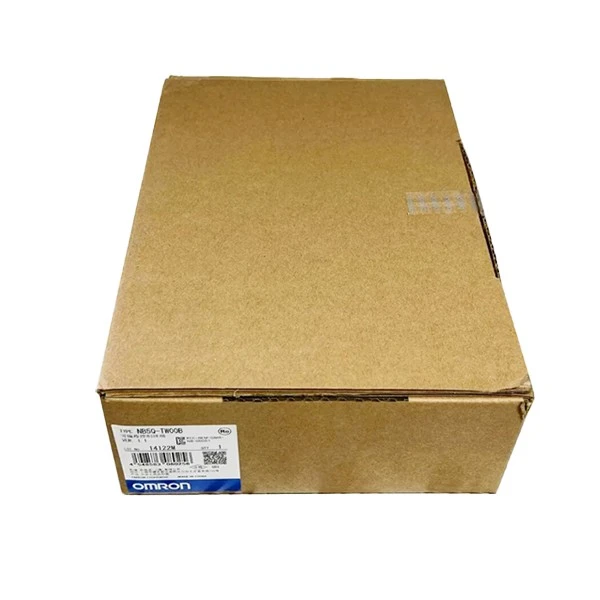

Omron NB5Q-TW00B
Brand：Omron
Model：NB5Q-TW00B
Inventory situation: Goods are available in stock.
Application scenarios
The NB5Q-TW00B monitors important processes on packaging lines, including lid sealing, filling, and labeling. In a bottling facility, for example, operators utilize the easy-touch interface to control conveyor speeds, monitor filling accuracy, and sound alerts when nozzles become blocked. The module's USB memory support facilitates recipe transfers across machines, cutting setup time by 30%. Its dynamic dashboards provide production indicators, such as output rate and downtime, allowing managers to detect bottlenecks rapidly.
The NB5Q-TW00B helps food processing companies maintain high cleanliness standards. In a bakery, the HMI communicates with dough mixers and ovens to track temperature profiles and ingredient ratios. Its password-protected access ensures that only authorized workers can change sanitization processes, and real-time trend graphs monitor microbiological levels in pasteurization systems. The device's IP65 classification means it can withstand water and dust, making it ideal for washdown situations.
The NB5Q-TW00B manages pressure, temperature, and cooling cycles on injection molding machines using an analog resistive touch panel. In a plastics facility, operators use its offline simulation feature to verify parameter changes without interrupting production, which reduces debugging time by 40%. The HMI also logs machine performance data to USB devices, allowing for proactive maintenance to avoid costly breakdowns.
Dimensions and Specifications
| Device Dimensions | 160 x 120 x 36 mm (W * H * D) |
| Weight | Approximately 0.6 kg |
| Power Supply Voltage | 24 V DC (±10%) |
| Power Consumption | Approximately 8 W |
| Operating Temperature Range | 0 to 50°C |
| Storage Temperature Range | -20 to 60 °C |
| Storage Humidity | 10 to 90 % |
Product features

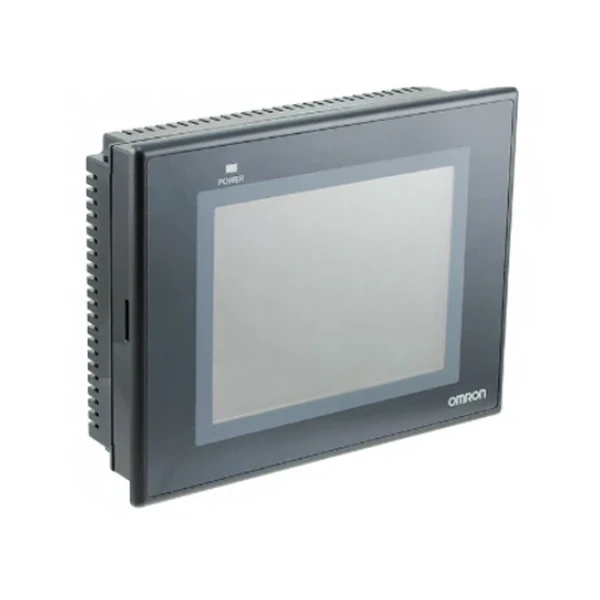

The Omron NB5Q-TW00B is a dependable and user-friendly industrial HMI (Human-Machine Interface) intended for a variety of automation applications. With a 5.6-inch TFT LCD display and a resolution of 320x234 pixels, this programmable terminal provides vivid graphics and simple operation for factory and production line operators. The resistive touch screen enables seamless contact, even while wearing gloves or using industrial tools, ensuring durability and long-term use.

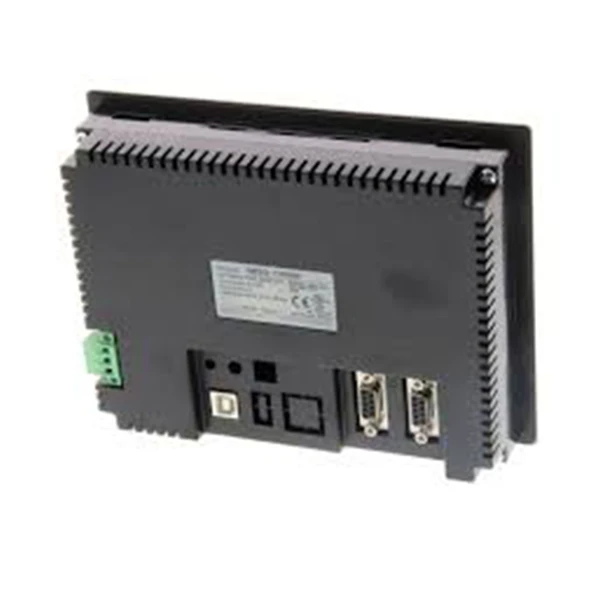

The NB5Q-TW00B has an IP65-rated front panel that protects against dust and water splashes, making it ideal for severe industrial environments. It supports several communication protocols, including RS-232, RS-422, and RS-485, allowing for seamless integration with Omron PLCs (such as the CP1, CJ2, and NX series) and other automation devices. The built-in USB connector facilitates data transmission and project upgrades, increasing maintenance and programming efficiency.
The NB5Q-TW00B also stands out for its long-lasting LED lighting (50,000 hours) and 5-year battery life for real-time clock backup, which lowers maintenance expenses. It provides multilingual interfaces, making it excellent for global operations. This HMI is a cost-effective solution for industrial automation, allowing you to visualize production data, create alarms, and improve processes.
