Omron NB5Q-TW01B

Brand: Omron
Model: NB5Q-TW01B

Inventory situation: Goods are available in stock.

Product features

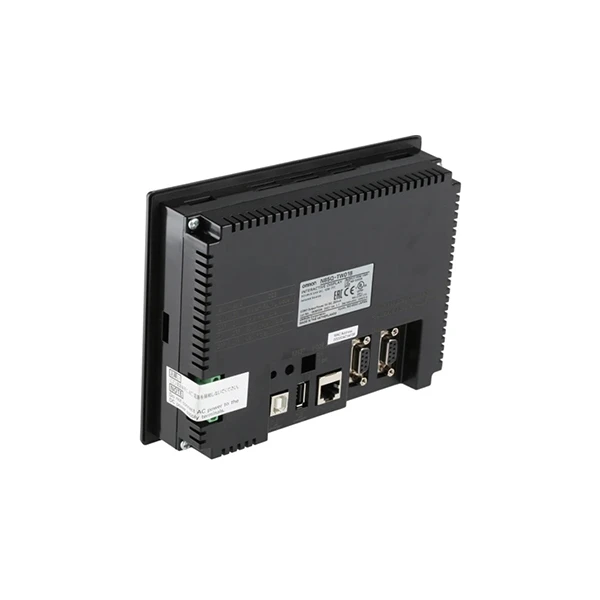

A dependable industrial human-machine interface (HMI) made for automation control systems, the Omron NB5Q-TW01B improves factory operations' efficiency and convenience. The 5.6-inch TFT LCD screen of the Omron NB5Q-TW01B has a resolution of 320 x 234 pixels and 65,536 colors, making data and images readable and clear. With a long service life of roughly 50,000 hours, its LED backlight ensures steady use during extended industrial work. The analog resistive touchscreen can withstand repeated operations in busy factories because it is robust and can withstand over a million touches.

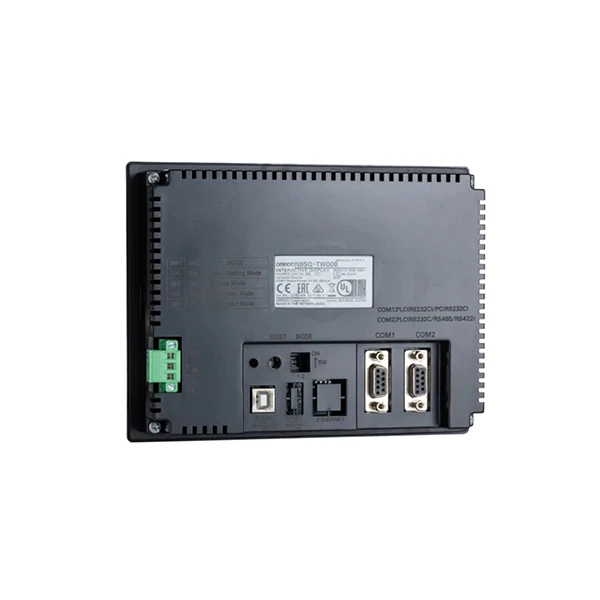

The Omron NB5Q-TW01B has several interfaces to suit various industrial requirements for connectivity. It features two USB ports-one USB Host for connecting printers or storage devices, and one USB Slave for programming-as well as an Ethernet port for quick data transfer with PLCs, PCs, and other devices. Additionally, there is a serial port (RS-232C/422A/485) that facilitates communication with a variety of industrial equipment by supporting widely used protocols like Modbus RTU.

The Omron NB5Q-TW01B is designed to survive demanding industrial settings. Because of its IP65 protection rating, its front panel is shielded from water and dust. It can be stored in conditions ranging from -20°C to 60°C and performs well in temperatures between 0°C and 50°C, accommodating the majority of factory conditions. It is small and simple to install, with a panel cutout size of 172×131 mm and dimensions of 184×142×46 mm and a weight of about 627g.

Specifications

Model	NB5Q-TW01B
Module Type	Industrial Human-Machine Interface (HMI)
Resolution	320 × 234 pixels (QVGA level)
Screen Size	5.6 inches TFT LCD
Color Depth	65,536 colors
Touch Screen	Analog resistive
Internal Memory	128 MB
Input Voltage	DC 24V

Precautions

The Omron NB5Q-TW01B industrial HMI operates safely, has a long service life, and performs steadily when important precautions are taken. The Omron NB5Q-TW01B requires a panel cutout size of 172×131 mm, so be sure to measure precisely before installing it to prevent any gaps that might jeopardize the front panel's IP65 dust and water resistance. Make sure the installation surface is level and stable, and avoid using too much force on the screen or casing when mounting, as this could harm the touchscreen or internal parts.

Use a steady power source and steer clear of voltage swings or ripple that are greater than 10% because the Omron NB5Q-TW01B runs on DC 24V (with an acceptable range of 20.4–27.6V DC). The HMI will be permanently damaged if it is ever connected to an AC power source or the wrong voltage. Furthermore, make sure that the Ethernet, USB, and serial ports (RS-232C/422A/485) are wired correctly; shoddy connections may result in data loss or poor communication.

For the Omron NB5Q-TW01B to be reliable, environmental factors are crucial. Because moisture can corrode circuits, the HMI should not be used or stored in temperatures outside of the recommended range (0–50°C for operation, -20–60°C for storage). To avoid performance issues or shortened component life, keep the device away from corrosive gases, heavy dust, and strong electromagnetic interference (like big motors or power tools).

FAQ

Q: What is the Omron NB5Q-TW01B?

A: A 5.6-inch color HMI (Human Machine Interface) touchscreen from Omron's NB Series is the NB5Q-TW01B. It functions as a programmable terminal that lets users monitor and control machinery by acting as an interactive operator interface for industrial automation systems.

Q: What software is used to program the NB5Q-TW01B HMI?

A: The HMI screens are designed and programmed using Omron's NB-Designer software. This program provides an integrated simulation environment to test your projects without the need for physical hardware and supports a number of Windows operating systems.

Q: Which PLCs can the Omron NB5Q-TW01B connect to?

A: Using specialized cables, the NB5Q-TW01B is made to integrate seamlessly with Omron PLCs (such as the CP, CJ, and CS series). With the right cables or adapters, it also provides connectivity options for PLCs made by other manufacturers, like Mitsubishi.

Q: What are the main features of the NB5Q-TW01B?

A: This HMI is renowned for being a cost-effective and feature-rich solution. Compact design, a storage card interface for data logging, a built-in ladder monitor for debugging PLC programs straight from the screen, and multilingual system information support are some of its key features.

Hot Tags: omron nb5q-tw01b, China omron nb5q-tw01b suppliers, NS8 TV01B V2 Omron, omron hmi, NB10W TW01B Omron, NB7W TW01B Omron NB Series Touch Screen HMI
