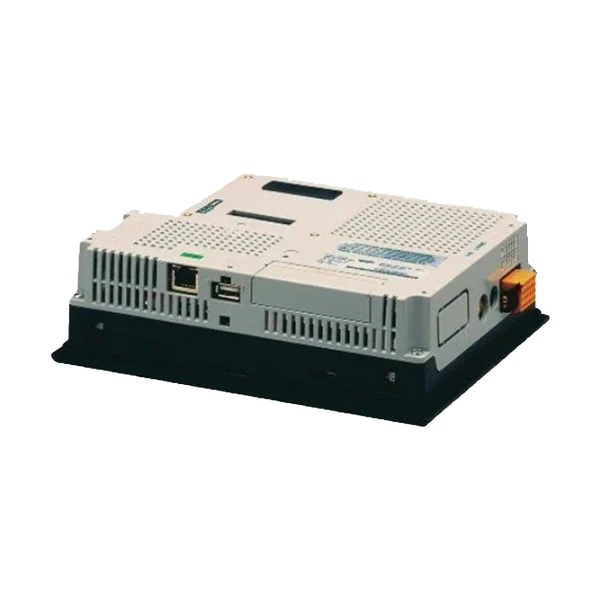

XBTGT4230 Schneider Electric

Brand: Schneider
Model: XBTGT4230

Inventory situation: Goods are available in stock.

Product Description

The Schneider XBTGT4230 is a high-performance industrial HMI (Human-Machine Interface) terminal engineered by Schneider Electric for seamless integration into automation systems. Designed to enhance operator control and monitoring, this robust touchscreen panel features a 10.1-inch WVGA color display with 800 x 480 resolution, delivering clear visuals for process data, alarms, and system status. Its intuitive interface simplifies complex operations, making it ideal for industrial machinery, manufacturing lines, and building automation applications.

Key features of the XBTGT4230 include a resistive touchscreen that ensures responsive operation even with gloved hands, and an IP65-rated front panel that protects against dust and water ingress, ensuring reliability in harsh environments. The terminal supports multiple communication protocols, including Modbus TCP/IP, Ethernet, and serial interfaces, enabling seamless connectivity with Schneider PLCs (e.g., Modicon M340, M580) and third-party devices. This versatility allows real-time data exchange and centralized control of industrial processes.

The XBTGT4230, which is powered by Vijeo Designer software, allows you to drag and drop to create bespoke interfaces with dynamic objects, trend charts, and alarm management. The software's straightforward tools make project creation easier, lowering programming time and expenses. The panel also allows remote access via Ethernet, allowing technicians to monitor or change settings from anywhere, improving maintenance efficiency and reducing downtimes.

The Schneider XBTGT4230 is built to last, with a small design that saves space on control panels. Its energy-efficient operation and wide temperature range (-10°C to 55°C) assure consistent performance in a variety of industrial applications. Whether employed in standalone devices or large-scale automation networks, this HMI terminal provides consistent and user-friendly control. For more information or technical assistance, consult the official Schneider Electric documentation or contact their customer service team. Trust the XBTGT4230 to improve your industrial processes with easy visualization and control.

Product Specifications

Display Resolution	800 x 600 pixels
Dimensions	Width: 330 mm Height: 245 mm Depth: 62 mm
Weight	Approximately 3.2 kg
Power Supply Voltage	24 V DC
Power Consumption	Maximum 30 W
Operating Temperature Range	0 to 50 °C
Storage Temperature Range	-20 to 60 °C
Protection Rating	IP65
Interfaces	Multiple communication interfaces, including USB and Ethernet, supporting various industrial protocols.

Product Application Scenarios

1. Smart Manufacturing in Packaging Machinery

The Schneider XBTGT4230 serves as the central control hub of a high-speed consumer goods packaging machine. Operators use the 10.1-inch WVGA touchscreen to track real-time parameters such as package speed (200+ units/min), film tension, and seal quality. The HMI's IP65-rated front panel can withstand dust from cardboard manufacturing and occasional water sprays during machine cleaning, assuring dependable performance in demanding environments. The XBTGT4230 connects to a Modicon M580 PLC via Modbus TCP/IP, allowing for simple parameter adjustments-such as switching between bottle and box packaging formats-through intuitive drag-and-drop interfaces included into Vijeo Designer software. This arrangement decreases downtime by 15% while increasing changeover efficiency, making it an excellent alternative for packaging machine automation solutions.

2. Process Control in Food and Beverage Production

A mid-sized brewery uses the XBTGT4230 to handle its fermentation and bottling processes. The HMI displays essential data such as tank temperature (regulated within ±0.5°C), pressure levels, and batch progress to help operators comply with food safety requirements. Its resistive touchscreen works flawlessly with gloved hands, making it ideal for hygiene-sensitive applications, while remote access via Ethernet allows personnel to troubleshoot pump failures or alter recipes from the control room. The module's compatibility with serial interfaces (RS-485) allows it to connect to existing sensors and valves, making it an affordable upgrade for retrofitting legacy food processing equipment.

FAQ

Q: What is the anti-interference capability of Schneider HMI?

A: Schneider HMI is designed with strong anti-interference capabilities and complies with various electromagnetic compatibility (EMC) standards, effectively resisting electromagnetic interference (EMI). This design ensures that the device operates stably in environments with noise and interference. Schneider HMI is also equipped with leakage protection and overload protection features, which can effectively prevent damage to the device from static electricity and other forms of interference.

Q: What systems can Schneider HMI integrate with?

A: Schneider HMI can integrate with a variety of automation systems and devices, including various PLCs, sensors, actuators, and SCADA systems, providing users with a complete monitoring and control solution.

Q: What is the Schneider Electric Magelis XBTGT4230?

A: The Schneider Magelis XBTGT4230 is a 4.3-inch color TFT HMI (Human-Machine Interface) terminal in the Magelis GTU series. Designed for industrial automation, it allows operators to visualize, operate, and monitor connected PLCs and machinery via an easy touchscreen interface. It has a resistive touch screen and an IP65 front-panel rating for use in severe situations.

Q: What software is used to program the XBTGT4230?

A: The XBTGT4230 is programmed with Schneider Electric's Vijeo Designer software (also known as Vijeo Designer Lite for basic models). This software enables users to build HMI applications, establish communication drivers, design screens, set alarms, and configure data logging. Project files are downloaded to the terminal using the USB connector.

Hot Tags: xbtgt4230 schneider electric, China xbtgt4230 schneider electric suppliers, HMIDT752 Schneider Electric, HMISTU855 Schneider Electric Touch Panel, schneider hmi
