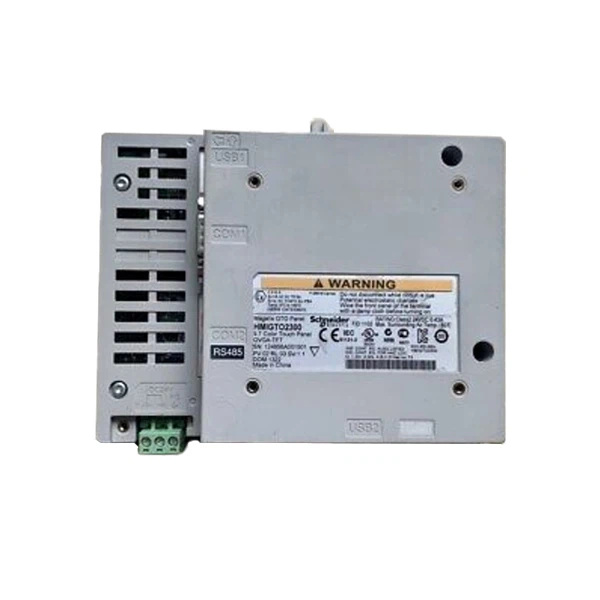

Schneider Electric HMI GTO2300

Brand：Schneider
Model：GTO2300

Inventory situation: Goods are available in stock.

Application scenarios

The GTO2300 handles important processes in packaging lines, such as lid sealing, filling, and labeling. In a bottling facility, for example, operators utilize the easy touch interface to control conveyor speeds, monitor filling accuracy, and sound alerts when nozzles become blocked. The module's USB memory support facilitates recipe transfers across machines, cutting setup time by 30%. Managers can swiftly spot bottlenecks with the aid of its graphical dashboards, which display production parameters like output rate and downtime. The GTO2300's IP65 classification provides consistent performance in dusty or humid situations, and its real-time data logging capability allows for traceability for quality control.

Food processing businesses rely on the GTO2300 to maintain stringent cleanliness requirements. In a bakery, the HMI communicates with dough mixers and ovens to track temperature profiles and ingredient ratios. Its password-protected access ensures that only authorized workers can change sanitization processes, and real-time trend graphs monitor microbiological levels in pasteurization systems. The device's stainless steel front panel (optional) is corrosion resistant and FDA compliant, making it appropriate for washdown situations. The GTO2300 enables predictive maintenance by interfacing with Schneider's EcoStruxure platform, which can reduce unplanned downtime by up to 15%.

The GTO2300 for injection molding machines uses an analog resistive touch panel to manage pressure, temperature, and cooling cycles. In a plastics facility, operators use its offline simulation feature to verify parameter changes without interrupting production, which reduces debugging time by 40%. The HMI also logs machine performance data to USB devices, allowing for proactive maintenance to avoid costly breakdowns. Its wide voltage input range (100-240V AC) allows for stable operation in areas with voltage variations.

Dimensions and Specifications

Device Dimensions	169.5x137x59.5 mm (W * H * D)
Weight	Approximately 0.8 kg
Power Supply Voltage	24V DC (±10%)
Power Consumption	Approximately 20 W
Operating Temperature Range	-10 to 60 °C
Storage Temperature Range	-20 to 70 °C
Storage Humidity	5 to 95%
Input Current	Approximately 1A
Protection Level	Generally IP65.

Product Features

The Schneider GTO2300 (model HMIGTO2300) is a dependable and user-friendly industrial HMI (Human-Machine Interface) developed for automation systems in a variety of industries. This 5.7-inch TFT LCD touch screen is part of the Magelis GTO series and has a vivid 320x240 QVGA resolution, making it suitable for monitoring and controlling machinery in factories, food processing plants, and pharmaceutical facilities. Its resistive touch panel can withstand up to 1,000,000 cycles of operation, ensuring endurance even in tough conditions with gloves or industrial tools.

The GTO2300 has an IP65-rated front panel and is resistant to dust and water splashes, making it suitable for use in harsh industrial environments. It supports numerous communication protocols, including RS-232, RS-485, and USB, allowing for seamless connection with Schneider PLCs (e.g., Modicon M221) and third-party devices such as Siemens or Rockwell systems. The built-in USB ports provide data transfer and firmware updates, hence easing maintenance and programming activities.

Vijeo Designer software (version ≥ 6.1) allows users to develop intuitive interfaces without extensive coding, making it suited for both new and experienced engineers. The HMI offers multi-language displays (Chinese, Korean, Japanese, etc.), allowing for global operations. Its small footprint (169.5x137x59.5 mm) and light weight (0.8 kg) make it easy to put in control panels, saving space while providing powerful performance.

The GTO2300 performs well in applications such as packing machinery, material handling systems, and beverage production lines. It can, for example, evaluate filling accuracy in food manufacturers or change the settings on plastic injection molding machines. Its long-lasting LED backlight (50,000 hours) and 10-year battery-backed real-time clock decrease maintenance costs while maintaining consistent operation over time.

FAQ

Q: What is the Schneider GTO2300?

A: The Schneider GTO2300 is a high-performance thyristor switch designed for industrial motor control and power switching applications. Known for its robustness and reliability, it is widely used in automation systems requiring efficient high-voltage switching.

Q: What are the main features of the Schneider GTO2300?

A: The Schneider GTO2300 features high current handling capacity, fast switching speeds, and excellent surge withstand capabilities. It includes advanced gate control technology, ensuring precise control over large electrical loads. Its rugged construction makes it suitable for harsh industrial environments.

Q: How does the Schneider GTO2300 improve power control in industrial automation?

A: This GTO (Gate Turn-Off Thyristor) enables efficient power switching and motor control, reducing energy consumption and improving system stability. It allows for swift and reliable switching of high-voltage loads, essential for modern automation and motor drive applications.

Q: What are typical applications of the Schneider GTO2300?

A: The Schneider GTO2300 is ideal for use in high-power converter equipment, motor drives, industrial automation systems, and large motor control applications. It is suitable for controlling heavy machinery, induction motors, and in setups requiring rapid switching and high current capacity.

Q: How do I install and operate the Schneider GTO2300?

A: Installation should be performed by qualified personnel, following Schneider Electric's technical guidelines. Proper gate drive circuitry and adequate cooling are crucial for optimal operation. The GTO2300 can be integrated with control systems for precise switching commands.
