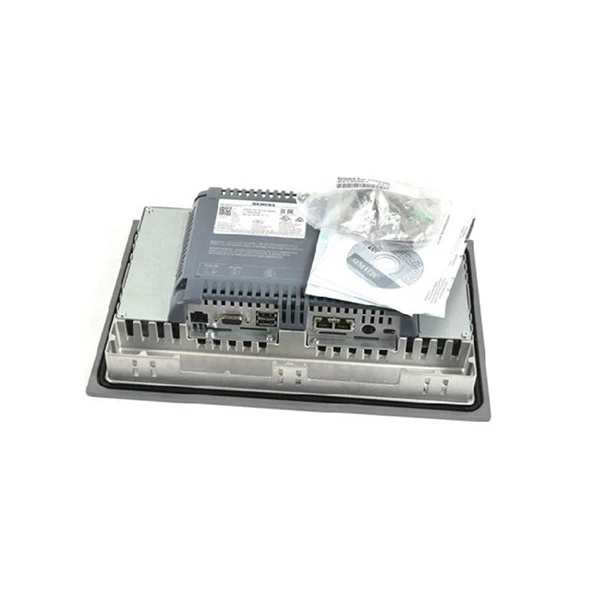

Siemens 6AV2124-1MC01-0AX0

Brand: Siemens
Model: 6AV2124-1MC01-0AX0

Inventory situation: Goods are available in stock.

Product features

The Siemens 6AV2124-1MC01-0AX0's 12.1-inch wide-screen TFT LCD display with LED backlight is one of its most remarkable features. This display can clearly display industrial parameters, graphics, and status information even in bright industrial environments because it supports up to 16,777,216 colors. With a resolution of 1280 x 800 pixels, the operation interface's details are all easily readable. This model uses a 34-key membrane keyboard design, which is different from touch-screen panels. Each function key has an LED indicator that enables users to quickly determine the working status and prevent errors, making it ideal for situations requiring precise key input.

The Siemens 6AV2124-1MC01-0AX0 is very competitive in terms of communication capability. It has two PROFINET RJ45 ports that facilitate fast data transfer, making it easy to connect to Siemens PLCs like the S7-1200 and S7-1500. It also has two USB ports (one host port and one service port), two SD card slots, and one MPI/PROFIBUS DP interface. The efficiency of industrial system integration is significantly increased by these rich interfaces, which make it simple to implement tasks like project transmission, data storage, and equipment debugging.

The Siemens 6AV2124-1MC01-0AX0 is designed to endure challenging industrial settings. It is ideal for use in workshops with dust and water splashes because it has an IP65 protection rating on the front, making it dust-tight and resistant to low-pressure water jets. For long-term stable operation, the IP20 protection rating on the panel's back necessitates installation in a control cabinet. It can adapt to the changing environmental conditions of most factories by operating normally in a temperature range of 0°C to 50°C (when installed vertically) and a relative humidity range of 5% to 95% (non-condensing).

Specifications

Model	6AV2124-1MC01-0AX0
Product Name	SIMATIC HMI KP1200 Comfort
Product Series	SIMATIC HMI Comfort Panel Standard Devices
Number of Colors	16,777,216 colors (16 million colors)
Screen Size	12.1 inches (diagonal)
Resolution	1280 × 800 pixels (WXGA)
Rated Current	0.85 A
Supply Voltage	DC 24 V

Precautions

To install the Siemens 6AV2124-1MC01-0AX0, first confirm that the control cabinet opening size satisfies the panel's requirements (width 289 mm × height 194.7 mm). Improper opening sizes will make installation difficult or harm the panel. Second, keep in mind that the front of the panel is IP65 rated, whilst the rear is IP20. As a result, the back must be housed within a sealed control cabinet to keep dust, water vapor, and other contaminants from entering and destroying internal components. To prevent screen cracking or keyboard failure, do not apply too much force to the 12.1-inch TFT LCD display and 34-key membrane keyboard during installation.

In terms of functioning, avoid pressing the Siemens 6AV2124-1MC01-0AX0 keys with sharp objects (such as screwdrivers or nails). The membrane keyboard is intended for manual operation, and sharp objects will scratch or damage the keyboard film, reducing key sensitivity. When viewing the display screen, avoid direct sunlight for an extended period of time; even if the screen is viewable in bright light, long-term exposure to direct sunlight will limit the service life of the LED backlight. In addition, check the LED indicators on the function keys on a regular basis to ensure they work properly so that you can detect faulty operation conditions in a timely manner.

FAQ

Q: What exactly is the Siemens 6AV2124-1MC01-0AX0?

A: Siemens 6AV2124-1MC01-0AX0 is the item number for the SIMATIC HMI KTP700 Basic panel. It is a 7-inch keyboard-touch-panel (KTP) from Siemens' Basic Panels family, intended for machine-level visualization and control. This HMI (Human-Machine Interface) device communicates smoothly with Siemens PLCs such as the S7-1200 and S7-1500 series via PROFINET, making it an essential component for creating efficient industrial automation systems.

Q: How do I program the Siemens 6AV2124-1MC01-0AX0 KTP700 Basic panel?

A: You only program it via the Siemens TIA Portal (Totally Integrated Automation Portal) architecture. You can use the WinCC Basic (included with STEP 7 Basic) or WinCC Comfort engineering software to create visualization panels, specify alarms, set up tags that link to Siemens PLC variables, and arrange communication. The project is then downloaded straight to the HMI panel using Ethernet/PROFINET.

Q: Can I connect the 6AV2124-1MC01-0AX0 to non-Siemens PLCs?

A: While its original and most optimized integration is with Siemens S7 PLCs via PROFINET, it can interface with other controllers via TIA Portal WinCC's driver/channel choices, such as Modbus TCP/IP. Configuration, on the other hand, may be more involved, and combining it with a Siemens programmable logic controller is advised for best ease of use in Siemens environments.
