SIMATIC HMI KTP400 Basic

Brand: Siemens
Model: 6AV2123-2DB03-0AX0

Inventory situation: Goods are available in stock.

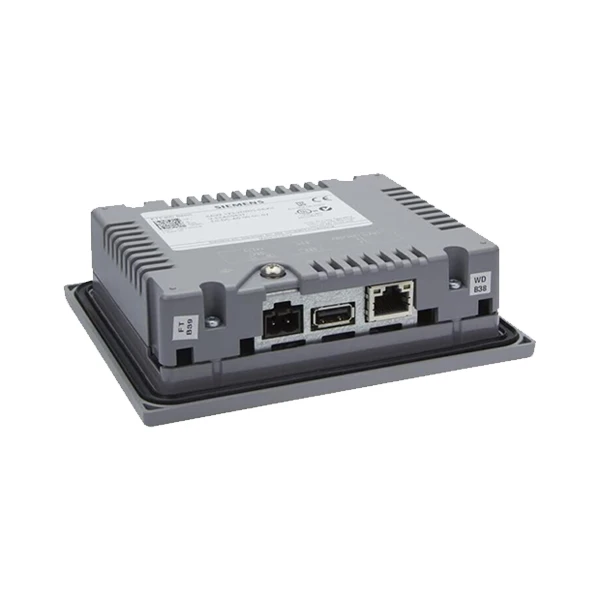

The SIMATIC HMI KTP400 Basic is a compact and dependable industrial touchscreen panel intended for effective machine monitoring and control in the manufacturing, automation, and process sectors. This 4.3-inch device, part of Siemens' reputable SIMATIC HMI Basic Panel line, combines touch and button operation with modern connectivity, making it ideal for small to medium-sized applications that require simplicity and reliability.

The KTP400 Basic features a TFT widescreen display with 480 x 272 pixel resolution and 65,536 colors, ensuring clear visuals for real-time data monitoring. Its resistive touchscreen and 4 physical function keys enable intuitive operation, while the IP65-rated front panel protects against dust and water splashes, even in harsh industrial environments. The device runs on 24V DC power with low power consumption (3W), ensuring energy efficiency during continuous operation.

Equipped with a PROFINET interface, the KTP400 Basic seamlessly integrates with Siemens PLCs like the SIMATIC S7 series, supporting fast data exchange for real-time control. It also includes a USB port for easy data transfer, firmware updates, or connecting peripherals like barcode scanners or keyboards. For legacy systems, optional RS422/485 connectivity allows compatibility with non-Siemens PLCs via converters.

The panel enables multilingual capability (10 web languages, 32 project languages), making it ideal for global operations. Its built-in Web browser allows remote access to process data, while recipe management and alarm logging make production changeovers and troubleshooting easier. Configuration is done in the TIA Portal using WinCC Basic V13 or higher, which provides drag-and-drop capabilities for establishing bespoke interfaces without requiring complicated programming.

The KTP400 Basic excels in machine-level automation, such as conveyor systems, packaging machines, and assembly lines. Its real-time clock and data archiving capabilities help track production metrics and ensure compliance with quality standards. With marine certifications (GL, ABS, DNV), it's also suitable for offshore and shipboard applications.

• Choose Installation Location: Select a dry and appropriately temperature-controlled environment, ensuring it is protected from direct sunlight, dust, and moisture.
• Panel Opening: Based on the device's dimensions, cut an opening in the installation panel to allow for the device to be embedded. Be sure to leave enough space for cable connections.
• Install the Device: Carefully remove the device from its packaging and insert it into the panel opening. Use accessories (such as mounting brackets, screws, etc.) to secure the device to the panel, ensuring it is stable and will not fall out.
• Power Connection: Ensure you use a power supply that meets the device specifications (typically 24V DC). Connect the power cable and ensure a secure connection to avoid poor contact.
• Communication Connection: Ensure that communication cables (such as Ethernet, serial, etc.) are properly connected to the device. Depending on the design, use the appropriate communication cables.
