PowerFlex 40 Replacement Guide: How to Choose the Right Upgrade

Aug 20, 2026

Leave a message

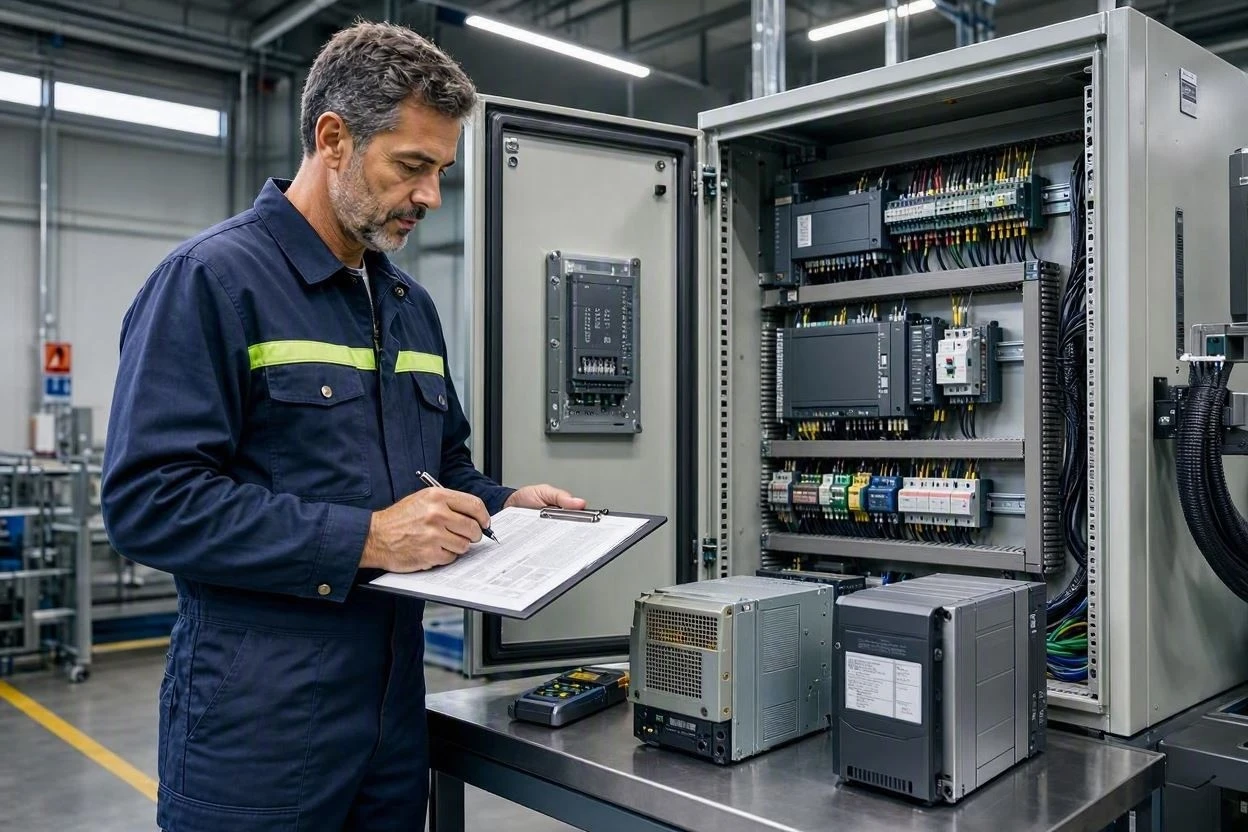

Electrical engineer comparing an older VFD with a replacement drive beside an industrial control cabinet

If you are replacing an Allen-Bradley PowerFlex 40, matching the old drive by horsepower alone is not enough. A replacement must also match the motor current, supply voltage, control method, communication architecture, safety requirements, and physical installation.



For many PowerFlex 40 catalog numbers, a PowerFlex 525 is the main engineering replacement direction. However, that does not mean every PowerFlex 525 is a direct drop-in replacement.



The practical question is therefore not simply, "Which drive is newer?" It is, "Which drive will perform the same job in my machine, and what has to change during the migration?"



This guide focuses on that decision. It explains what to identify before ordering, how to compare PowerFlex 523 and 525 for a replacement project, what normally changes during a PowerFlex 40 to 525 migration, and what information a supplier needs before confirming a replacement.



What Is the Current Lifecycle Status of PowerFlex 4 and PowerFlex 40 Drives?

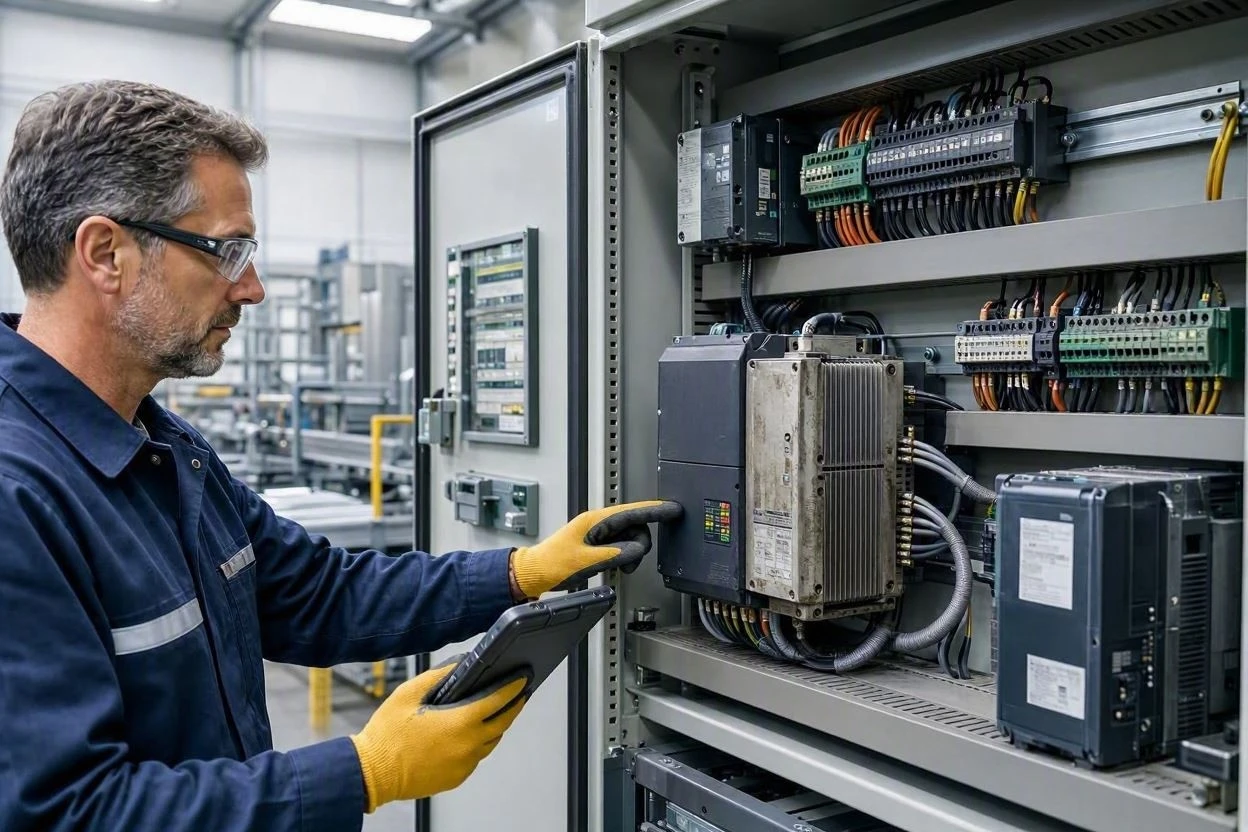

Maintenance engineer inspecting an older VFD in a factory control cabinet while planning a future replacement

PowerFlex 4 class drives have been widely installed in conveyors, pumps, fans, packaging equipment, and general machinery. As these platforms move out of normal production, replacement planning becomes a maintenance issue rather than a simple purchasing choice.



For example, Rockwell Automation lists the PowerFlex 40 catalog number 22B-D4P0N104 as discontinued as of June 30, 2025, and identifies 25B-D4P0N104 as its engineering replacement. This provides a clear example of the migration direction from the older 22B family toward the 25B PowerFlex 525 platform.



Discontinued does not mean an installed drive must be removed immediately. A healthy unit can remain in service. The more important question is whether the plant has a workable spare and migration strategy.



A critical drive with no tested spare and no prepared replacement plan creates a very different level of risk from a noncritical drive that can be changed during a planned shutdown.



A practical approach is to classify each installed legacy drive according to:

  • Full catalog number
  • Machine criticality
  • Available spare unit
  • Condition of the installed drive
  • Planned shutdown window
  • Replacement engineering status



This gives maintenance teams time to prepare the replacement instead of making wiring, mounting, and control decisions after a failure.



Before Choosing a Replacement, Identify Your Existing Drive

The most useful replacement request is not:



"PowerFlex 40, 2 HP."



It is a complete technical description of the installed drive, motor, and control system.



Find the Full Catalog Number

Start with the complete drive catalog number from the nameplate.



A number such as 22B-D4P0N104 contains much more useful information than a general description such as "PowerFlex 40, 1.5 kW."



The catalog number helps identify the drive family, voltage class, output rating, enclosure or configuration, and other characteristics that can affect the replacement.



Copy the entire catalog number exactly. A missing letter or digit can point to a different voltage, rating, or configuration.



If you need to identify an Allen-Bradley part before requesting a replacement, you can also check the ChenTuo Allen-Bradley Model Library.



Record the Motor and Supply Data

Next, record the actual electrical requirements of the application.



Item to Record

Why It Matters

Input voltage and phase

The replacement must match the available supply

Motor voltage

Confirms the motor and drive voltage relationship

Motor full-load current

A key value for drive current sizing

Motor HP or kW

Useful for initial screening, but not sufficient by itself

Motor frequency

Important for 50 Hz and 60 Hz applications

Duty and load type

Affects overload and drive sizing requirements

Braking requirement

May affect drive and external component selection



Motor full-load current deserves special attention.



Two drives may carry similar horsepower labels while having different continuous current or overload capabilities. For this reason, start with the motor and application requirements, then confirm that the selected drive power rating is also appropriate.



This is particularly important for applications such as conveyors, mixers, hoists, and other loads that may require significant starting torque or overload capability.



Document the Existing Control Architecture

A PowerFlex replacement is part of a control system, not an isolated component.

Before selecting a new drive, document how the old unit receives its commands.



Check:

  • Where start and stop signals come from
  • How speed is referenced
  • How drive faults are reported
  • Whether control is hardwired or network based
  • Which communication adapter is installed
  • Which PLC controls the machine
  • Whether the existing safety circuit interacts with the drive



A simple system sketch is often enough:

PLC or control circuit → communication or hardwired I/O → VFD → motor



This step prevents a common purchasing problem: the new drive matches the motor but does not match the existing control architecture.



Is PowerFlex 525 a Direct Replacement for PowerFlex 40?

Not automatically.

PowerFlex 525 is a common engineering replacement direction for PowerFlex 40, but compatibility should be checked in five areas before ordering.



Electrical Compatibility

First confirm:

  • Supply voltage
  • Phase
  • Continuous output current
  • Motor full-load current
  • Duty
  • Overload requirements
  • Braking requirements, if applicable



Do not assume that the same horsepower guarantees a correct replacement.



A conveyor that starts under load can place very different demands on a drive than a lightly loaded fan with the same motor power.



The replacement should therefore be selected according to the real motor and load conditions, rather than by copying the HP or kW value from the old VFD.



Mechanical Compatibility

Next, compare the dimensional drawings for the exact old and new catalog numbers.



Check:

  • Overall dimensions
  • Frame size
  • Mounting pattern
  • Cabinet clearance
  • Ventilation
  • Enclosure type
  • Cable entry and cable reach



A replacement can be electrically correct and still create additional shutdown work if the backplate needs drilling, cables no longer reach, or ventilation clearances change.



For a planned retrofit, these points should be confirmed before the shutdown window begins.



Wiring and I/O Compatibility

Never transfer wiring by terminal number alone.



The new drive may use a different terminal arrangement even when the functions appear similar.



Review:

  • Power terminals
  • Digital inputs
  • Analog inputs and speed references
  • Relay outputs
  • Common terminals
  • Control power requirements
  • Communication connections



A safer migration method is:

  1. Mark the function of each existing connection.
  2. Review the new drive wiring diagram.
  3. Map each function to the appropriate new terminal.
  4. Verify the wiring before applying power.
  5. Update the electrical drawing after installation.



This is more reliable than assuming that an old terminal number has the same meaning on the new platform.



Communication Compatibility

Communication architecture is another important difference between generations.



Rockwell identifies built-in EtherNet/IP as a standard PowerFlex 525 capability. The PowerFlex 523 instead supports networking through optional communication modules, while both platforms provide a built-in DSI port.



If the existing PowerFlex 40 uses an external communication adapter, do not assume that the old hardware can simply be moved to the replacement drive.



For a networked machine, verify:

  • Existing communication protocol
  • Adapter requirements
  • IP address or node configuration
  • PLC configuration
  • Drive command and status data
  • HMI references
  • Alarm and fault handling



This can be as important as matching the motor rating.



Safety Compatibility

PowerFlex 525 also includes hardwired Safe Torque Off.

Rockwell specifies its STO function for safety applications up to SIL 2 and PLd Category 3 under the applicable conditions described in its technical documentation.



STO can therefore be an important selection requirement when the machine safety architecture calls for it.



However, STO availability alone does not make a drive suitable for an application. The complete safety circuit and required machine safety performance still need to be evaluated and validated.



PowerFlex 523 vs PowerFlex 525: Which Fits the Replacement Project?

PowerFlex 523 and 525 overlap in many basic motor control applications, but their roles in a PowerFlex 40 replacement project are not identical.



For many PowerFlex 40 catalog numbers, the 525 is the more natural migration direction.



PowerFlex 523 can still be considered when the application is relatively simple and the project is being re-engineered around its actual requirements rather than following a catalog level replacement mapping.



Consider PowerFlex 523 When the Application Is Simple

PowerFlex 523 is worth evaluating when:



  • The machine needs basic motor speed control
  • Communication requirements are limited
  • The architecture is relatively simple
  • Embedded EtherNet/IP is not required
  • Integrated STO is not a design requirement
  • Cost and configuration simplicity are important



Rockwell positions the PowerFlex 523 as a cost-effective platform with USB configuration, a built-in DSI port, and optional communication modules.



This can suit standalone machines and relatively straightforward applications.



The important point is that selecting a PowerFlex 523 should be an application decision. It should not be presented as a universal PowerFlex 40 successor.



Consider PowerFlex 525 When Integration Requirements Are Higher

PowerFlex 525 becomes more attractive when the machine requires:



  • Embedded EtherNet/IP
  • Hardwired Safe Torque Off
  • Logix integration
  • More flexible motor control
  • Network based command and monitoring
  • A catalog level engineering replacement identified by Rockwell



Rockwell lists built-in EtherNet/IP, Safe Torque Off, volts per hertz control, sensorless vector control, and closed loop velocity vector control among the PowerFlex 525 capabilities.



This also aligns with the engineering replacement direction Rockwell provides for specific PowerFlex 40 catalog numbers.



For currently listed 22B and 25B series products on our website, see the ChenTuo Allen-Bradley VFD category.



When Neither PowerFlex 523 nor 525 Is Enough

Some projects should stop comparing 523 and 525.



If the application requires substantially higher power, more demanding feedback, regenerative operation, more complex process control, or modular option capability, evaluate a higher PowerFlex family instead of forcing a 520 series drive into the application.



At that point, the selection problem has changed.



The correct question is no longer:

"PowerFlex 523 or PowerFlex 525?"



It becomes:

"Which drive architecture meets the new machine requirements?"



A Practical PowerFlex Replacement Decision Process

Use the following sequence before confirming a replacement.



1. Match Voltage and Motor Current

If the supply class or current requirement does not match, stop and reselect.

Do this before comparing communication or advanced features.



2. Check the Control Requirement

Determine what the machine actually needs:

  • Basic speed control
  • Higher starting torque
  • Sensorless vector control
  • Feedback
  • Closed loop control
  • More demanding process control



3. Check Communication Requirements

Identify whether the existing system uses:

  • Hardwired control
  • Legacy serial communication
  • PLC networking
  • EtherNet/IP



Communication requirements can change which PowerFlex family makes sense.



4. Check Safety Requirements

Determine whether STO or another drive related machine safety requirement is part of the design.



5. Check the Physical Installation

Compare:

  • Footprint
  • Cabinet space
  • Ventilation
  • Enclosure
  • Mounting
  • Cable routing



Panel modification is part of migration cost, even if the drive purchase price is attractive.



6. Select the Family, Then Verify the Catalog Number

The series narrows the choice.



The exact catalog number completes the selection.



This order matters. Starting with a preferred model and then trying to make the application fit it creates unnecessary retrofit risk.



What Changes During a PowerFlex 40 to 525 Migration?

Once PowerFlex 525 has been identified as the appropriate direction, the project moves from product selection to migration planning.



Recheck Drive Sizing

Confirm:

  • Supply voltage
  • Motor full-load current
  • Load type
  • Duty
  • Overload requirement
  • Ambient conditions
  • Applicable derating



Do not size the replacement only from the old drive label.



The previous unit may have been oversized, undersized, or selected for a duty that is no longer obvious from the machine documentation.



Plan Panel and Mounting Work

Obtain dimensional drawings for both catalog numbers before the shutdown.



Measure the available panel space, check mounting holes, verify ventilation clearance, and confirm cable reach.



If the new drive needs a different mounting pattern or additional panel work, preparing this work before production stops can significantly simplify the retrofit.



Review Terminals and Wiring by Function

Use the existing electrical drawing as a reference, but verify every connection against the new drive documentation.



Map functions rather than terminal numbers.



Start, stop, speed reference, fault relay, analog signals, communication connections, and safety related signals should all be reviewed independently.



After commissioning, update the machine drawing. This reduces troubleshooting time for the next technician who works on the panel.



Rebuild Parameters Around the Required Functions

Do not assume that a PowerFlex 40 parameter set can simply be imported into a PowerFlex 525.



Create a functional parameter list that covers:

  • Motor nameplate data
  • Minimum and maximum speed
  • Acceleration and deceleration
  • Start source
  • Speed reference
  • Control mode
  • Relay behavior
  • Fault handling
  • Communication settings

This article intentionally does not repeat a full PowerFlex 525 startup parameter table.



For detailed startup parameters, broader PowerFlex family selection, lifecycle information, and sourcing considerations, refer to our Allen-Bradley PowerFlex VFD Selection, Replacement and Sourcing Guide (2026).



That existing guide already contains a PowerFlex migration map and a PowerFlex 525 startup parameter reference, so the two articles serve different search intents instead of duplicating the same information.



Check PLC and Network Configuration

A hardwired PowerFlex 40 replacement may require little or no PLC program change.



A networked machine can require more work.



Depending on the existing architecture, review:

  • Device identity
  • IP address or node settings
  • Drive profile
  • Controller tags
  • Command and status structures
  • Fault handling
  • HMI references

The exact workload depends on how the old drive is integrated.



Avoid assuming that every migration requires a PLC rewrite. At the same time, do not treat a networked replacement as a purely electrical task.



Commission the Machine, Not Just the Drive

Powering up the new VFD is not the end of the migration.



Verify:

  • Motor direction
  • Minimum and maximum speed
  • Acceleration
  • Deceleration
  • Start command source
  • Speed command source
  • Interlocks
  • Fault response
  • Safety functions
  • Operation under normal production load



A practical commissioning procedure should finish with a machine test under the real load.



The replacement is complete when the machine functions correctly, not when the VFD keypad lights up.



Common Mistakes When Replacing a PowerFlex 40

Several mistakes repeatedly increase retrofit cost.

Matching Horsepower Only

Confirm motor full-load current, load type, duty, and overload requirements. Matching HP or kW is only an initial screening step.



Ignoring Dimensional Drawings

An electrically correct replacement may still require mounting or panel modification. Check drawings before the drive arrives.



Assuming Terminal Numbers Transfer

Map wiring according to function and update the electrical drawing after installation.



Forgetting Communication Hardware

Check whether the old communication adapter, protocol, and PLC architecture are compatible with the proposed replacement.



Copying Parameters Without Verification

Preserve the required machine function, not the old parameter number.



Ordering Before Confirming the Full Catalog Number

A complete old part number is much more useful than a message such as:"Need PowerFlex 525, 5.5 kW."



These checks are inexpensive before the order. They become expensive when discovered during a shutdown.



Three Typical PowerFlex Replacement Scenarios

Scenario 1: Small Conveyor With Basic Speed Control

Consider a small conveyor using simple hardwired start and stop signals with no complex networking or feedback requirement.



A PowerFlex 523 may be worth evaluating if its electrical ratings and control capability meet the application.



This should be treated as a fresh application selection, not as a claim that every PowerFlex 40 catalog number maps directly to a PowerFlex 523.



Scenario 2: PLC Networked Conveyor Requiring EtherNet/IP

Consider a conveyor controlled by a Rockwell PLC where drive commands, operating status, and faults are integrated through EtherNet/IP.



PowerFlex 525 is the stronger candidate because its architecture fits the built-in EtherNet/IP and Logix integration requirements.



The engineer still needs to verify motor current, physical installation, wiring, safety design, and controller configuration before ordering.



Scenario 3: Higher Power or More Demanding Control

Suppose the old installation is being redesigned and the application now requires higher power, advanced feedback, regenerative capability, or more complex motor control.



Do not force the project into a PowerFlex 523 or 525 selection.



Move the evaluation to the appropriate higher PowerFlex family and size the new drive according to the current machine requirements.



What Should You Send for a PowerFlex Replacement Quote?

A supplier can respond much more accurately when the first inquiry contains both technical and commercial information.



Engineer preparing drive nameplate motor data and application details for a replacement quotation



Existing Equipment

  • Full existing drive catalog number
  • Clear drive nameplate photo



Motor and Electrical Data

  • Motor nameplate photo
  • Supply voltage and phase
  • Motor HP or kW
  • Motor full-load current



Application Information

  • Load type, such as conveyor, pump, fan, mixer, or machine tool
  • Start, stop, and speed control method
  • Communication protocol
  • PLC model, if applicable



Commercial Information

  • Required quantity
  • Destination country
  • Required delivery date



Shenzhen Chentuo Technology supplies Allen-Bradley VFDs, PLCs, HMIs, and other industrial automation products for international customers. Our website also provides Allen-Bradley product categories and model references for buyers who already have a specific part number.



If you already have the old PowerFlex catalog number and motor information, send them through our Request a Quote page.



The objective is to confirm the replacement at catalog level before an order is placed.



Final Recommendation

For many PowerFlex 40 installations, PowerFlex 525 is the first replacement platform to evaluate, particularly when Rockwell identifies a 25B engineering replacement for the exact 22B catalog number.



That still does not make the migration automatic.



Confirm the motor current and supply first. Then check control requirements, communications, safety, dimensions, wiring, and commissioning work.



Consider PowerFlex 523 when the application is simple and is being re-engineered according to current requirements.



Move to a higher PowerFlex family when the application exceeds the practical scope of the 520 series.



The most useful next step is simple: provide the complete existing PowerFlex catalog number, the motor nameplate, and a short description of the application.



That information gives an engineer or supplier a meaningful starting point for replacement verification.



FAQ





PowerFlex 40 Replacement Guide: How to Choose the Right Upgrade

Is the PowerFlex 40 discontinued?

Many PowerFlex 40 catalog numbers are discontinued. For example, Rockwell lists 22B-D4P0N104 as discontinued as of June 30, 2025. Always confirm lifecycle status using the exact catalog number because lifecycle information is maintained at product level.

What is the replacement for a PowerFlex 40?

PowerFlex 525 is a common engineering replacement direction for PowerFlex 40. Rockwell identifies specific 25B replacement products for individual 22B catalog numbers. The exact replacement should still be verified before ordering.

Can I replace a PowerFlex 40 with a PowerFlex 525?

Often yes, but do not treat it as an automatic drop-in swap. Confirm electrical ratings, dimensions, mounting, wiring, communications, safety requirements, and parameter requirements for the exact old and new catalog numbers.

What is the difference between PowerFlex 523 and PowerFlex 525 for a replacement project?

PowerFlex 523 is suited to simpler applications where optional networking may be sufficient. PowerFlex 525 provides built-in EtherNet/IP, hardwired STO, and closer integration with Logix architectures, which often makes it the more natural candidate for networked PowerFlex 40 migrations.

Do I need to change wiring when replacing a PowerFlex 40?

Possibly. Terminal arrangements and functions can differ between drive generations. Review the wiring documentation for the exact models and map each connection by function instead of assuming terminal numbers are identical.

Can PowerFlex 40 parameters be transferred directly to a PowerFlex 525?

Do not assume so. Rebuild the required machine functions using the new drive parameter structure, then verify motor data, command sources, speed limits, acceleration, deceleration, I/O behavior, communication settings, and machine operation during commissioning.



Free consultation

Send Inquiry
