In the world of industrial automation, Siemens PLCs (Programmable Logic Controllers) are widely used for various control and monitoring tasks. One important component within the Siemens S7 - 300 PLC system is the 6ES7392 - 1AM00 - 0AA0 front connector module. This blog post will serve as an ultimate guide to help you understand everything about this essential module.
What is the Siemens 6ES7392 - 1AM00 - 0AA0?

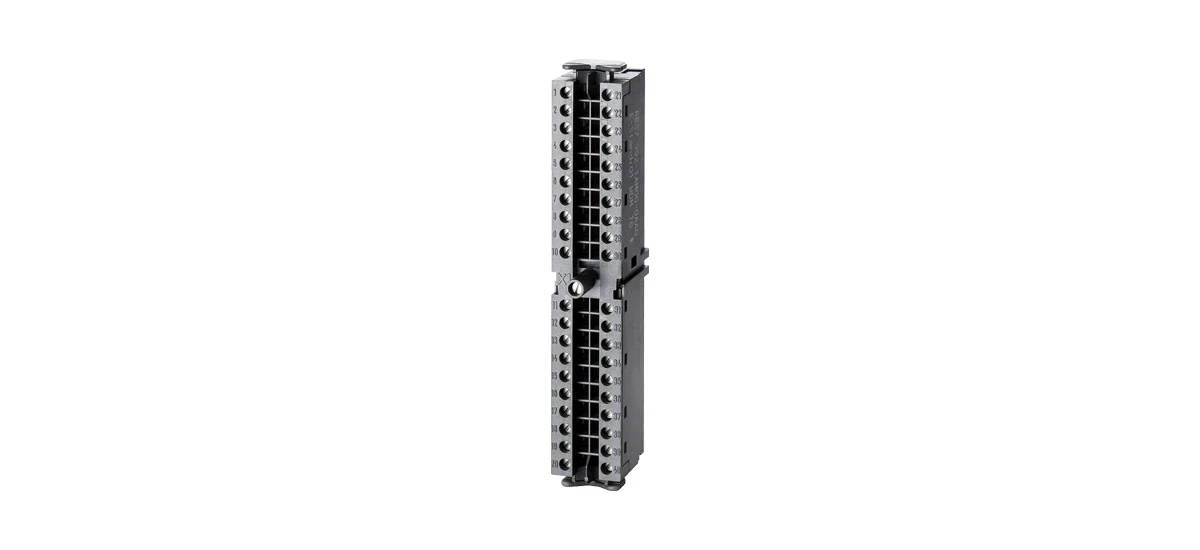

The Siemens 6ES7392 - 1AM00 - 0AA0 is a front connector module specifically designed for the S7 - 300 PLCs. It plays a crucial role in connecting the on - site actuators and sensor signals to the module within the PLC system. With a 40 - pin configuration, it offers a reliable way to transfer data and power between the field devices and the PLC.
This front connector features screw - type terminal blocks, which provide a secure connection for the cables. The screw - type design ensures that the cables are firmly held in place, reducing the risk of loose connections that could lead to signal interference or system malfunctions. Additionally, it comes with a cable clamp to further secure the cables and prevent any accidental disconnection.
There is also a release button on the connector, which makes it easier to disconnect the cables when needed. This is especially useful during maintenance or when replacing components in the system.
Function and Importance in the S7 - 300 PLC System
In an S7 - 300 PLC system, the 6ES7392 - 1AM00 - 0AA0 front connector module is like a bridge between the real - world devices and the control system. The sensors in the industrial environment, such as temperature sensors, pressure sensors, and proximity sensors, send signals that need to be received by the PLC. These sensors detect various physical quantities in the process and convert them into electrical signals. The 6ES7392 - 1AM00 - 0AA0 front connector module then takes these signals from the sensors and routes them to the appropriate input modules within the PLC.
On the other hand, the PLC sends control signals to the actuators, like motors, valves, and solenoids, to control the industrial process. The front connector module is responsible for transmitting these control signals from the output modules of the PLC to the actuators in the field. Without a reliable front connector module like the 6ES7392 - 1AM00 - 0AA0, the accurate transfer of these signals would be at risk, which could lead to incorrect control of the industrial process and potentially costly errors.
Permanent Wiring Feature
One of the great advantages of the Siemens 6ES7392 - 1AM00 - 0AA0 is its "permanent wiring" feature. When it comes to replacing a module within the S7 - 300 PLC system, this feature really shines. Instead of having to rewire all the connections every time a module is replaced, you can simply remove the front connector with all the existing wiring intact.
This not only saves a significant amount of time during maintenance and module replacement but also reduces the chances of wiring errors. In a complex industrial environment with numerous wires and connections, any wiring mistake can cause the system to malfunction. By using the 6ES7392 - 1AM00 - 0AA0 front connector module, the wiring remains in place, and the new module can be quickly installed by reconnecting the front connector.
Mechanical Coding for Error Prevention
To avoid errors when replacing modules, the 6ES7392 - 1AM00 - 0AA0 is equipped with mechanical coding. The module has a coding element socket and comes with two coding elements. When inserting the front connector into the module, the coding elements ensure that the connector is correctly aligned and inserted into the appropriate module.
This mechanical coding acts as a safeguard against incorrect module installations. In a large PLC system with multiple modules of different types, it's easy to accidentally insert a connector into the wrong module. The mechanical coding on the 6ES7392 - 1AM00 - 0AA0 front connector module helps prevent such mistakes, ensuring that the system operates smoothly and without errors caused by incorrect module connections.
Applications of the Siemens 6ES7392 - 1AM00 - 0AA0
The Siemens 6ES7392 - 1AM00 - 0AA0 front connector module can be found in a wide range of industrial applications where Siemens S7 - 300 PLCs are used.
Manufacturing Industry
In manufacturing plants, there are countless sensors and actuators involved in the production process. For example, in an assembly line, sensors are used to detect the presence of parts, and actuators are used to move and assemble these parts. The 6ES7392 - 1AM00 - 0AA0 front connector module is used to connect these sensors and actuators to the S7 - 300 PLCs, allowing for precise control of the assembly line. It helps in ensuring that each part is correctly assembled, reducing production errors and increasing overall productivity.
Power Generation
In power generation facilities, whether it's a coal - fired power plant, a hydroelectric power station, or a solar power farm, there are numerous control systems in place. The S7 - 300 PLCs, along with the 6ES7392 - 1AM00 - 0AA0 front connector module, are used to monitor and control various parameters such as temperature, pressure, and voltage. Sensors detect these parameters, and the front connector module transmits the data to the PLC. The PLC then sends control signals through the same front connector to actuators that adjust the operation of equipment like turbines, generators, and valves, ensuring the efficient and safe generation of power.
Chemical and Petrochemical Industry
In the chemical and petrochemical industry, safety and precision are of utmost importance. The 6ES7392 - 1AM00 - 0AA0 front connector module is used to connect sensors and actuators in processes such as chemical reactions, distillation, and transportation of chemicals. For example, sensors monitor the level of chemicals in storage tanks, and actuators control the valves that regulate the flow of chemicals. The reliable connection provided by the front connector module is crucial in this industry to prevent any leaks or accidents that could be dangerous due to the nature of the chemicals involved.
Installation and Maintenance Tips
When installing the Siemens 6ES7392 - 1AM00 - 0AA0 front connector module, it's important to follow the manufacturer's instructions carefully. First, make sure that the power to the PLC system is turned off to avoid any electrical hazards. Then, align the coding elements of the front connector with the coding element socket on the module and insert it firmly. Tighten the screw - type terminal blocks to secure the cables, but be careful not to overtighten as this could damage the cables or the connector.
For maintenance, regularly check the connections to ensure that they are still secure. Look for any signs of wear or corrosion on the connector or the cables. If a module needs to be replaced, use the release button on the front connector to disconnect it easily. After replacing the module, reconnect the front connector, making sure that the coding elements are correctly aligned.
Frequently Asked Questions
Here are answers to some of the most commonly asked questions about the Siemens 6ES7392-1AM00-0AA0 front connector module.
What is the difference between the 6ES7392-1AM00-0AA0 and 6ES7392-1BM01-0AA0?
The main difference is the type of terminals: the 6ES7392-1AM00-0AA0 uses screw-type terminals, while the 6ES7392-1BM01-0AA0 uses spring-type terminals. The screw-type terminals offer greater vibration resistance and are better suited for applications where wires may need to be frequently disconnected and reconnected. The spring-type terminals offer faster installation and removal .
Can I use the 6ES7392-1AM00-0AA0 with S7-1200 or S7-1500 PLCs?
While the 6ES7392-1AM00-0AA0 is designed specifically for S7-300 PLCs, there are compatible modules available for S7-1200 and S7-1500 systems. For example, the Siemens 6ES7 193-6BP00-0DA0 is a front connector module designed for S7-1200. It's important to use modules specifically designed for your PLC series to ensure proper fit and functionality .
What is the maximum wire size that can be used with the 6ES7392-1AM00-0AA0?
The 6ES7392-1AM00-0AA0 is designed to accommodate wires from 0.2mm² to 2.5mm² in size. This range covers most standard industrial wiring applications. Using wires outside this recommended range may result in poor connections or even damage to the module .
Are there any safety considerations when working with these modules?
Yes, safety is crucial when working with any electrical components. Always power off the PLC system before installing or servicing the front connector modules. Use proper tools and techniques to avoid damaging the terminals or wires. If you're unsure about any aspect of the installation or maintenance, consult a qualified electrician or refer to the official Siemens documentation .
How often should I inspect my 6ES7392-1AM00-0AA0 modules?
The frequency of inspections depends on your specific application and operating conditions. In general, a visual inspection should be performed daily, with more thorough inspections on a monthly or quarterly basis. In high-vibration or harsh environments, more frequent inspections may be necessary. Look for signs of corrosion, overheating, or loose connections during each inspection .
Can I repair a damaged 6ES7392-1AM00-0AA0 module?
While minor issues like loose connections can often be repaired, more significant damage to the module typically requires replacement. The terminals and internal connections are not designed to be serviced or repaired. If you suspect your module is damaged, the best course of action is to replace it with a new one. Keep in mind that due to its phase-out status, replacement modules may be harder to find .
Conclusion
The Siemens 6ES7392 - 1AM00 - 0AA0 front connector module is an essential part of the S7 - 300 PLC system. Its ability to connect sensors and actuators reliably, along with features like permanent wiring and mechanical coding, makes it a valuable component in various industrial applications. Whether you are involved in manufacturing, power generation, or the chemical industry, understanding how this module works and how to use it effectively can help you optimize the performance of your Siemens S7 - 300 PLC - based control systems. By following the installation and maintenance tips, you can ensure that the 6ES7392 - 1AM00 - 0AA0 front connector module continues to function properly and contributes to the smooth operation of your industrial processes.
