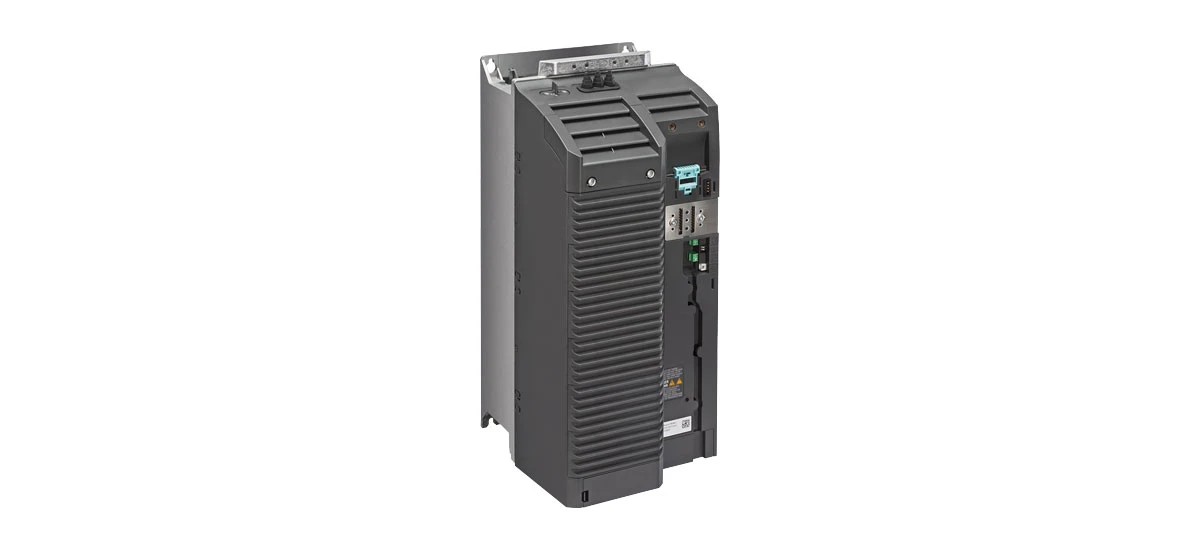

The Siemens 6SL3210-1PE23-8UL0 is a key part of the Siemens G120 drive family, widely used in mold shops to control motors for various machines. For mold shop technicians, knowing how to troubleshoot common faults of the Siemens 6SL3210-1PE23-8UL0 is crucial to keep production running smoothly. This blog will guide you through common issues, their solutions, and helpful tips.
Common Faults of Siemens 6SL3210-1PE23-8UL0 and Their Solutions
Error Code F0001: Overcurrent
One of the most common issues with the Siemens 6SL3210-1PE23-8UL0 is the F0001 error code, which indicates an overcurrent problem. This usually happens when the motor is drawing more current than the Siemens 6SL3210-1PE23-8UL0 can handle.
Possible causes include a short circuit in the motor windings, a mechanical blockage in the mold machine, or incorrect parameter settings. To fix it, first, turn off the power to the Siemens 6SL3210-1PE23-8UL0. Check the motor cables for damage or loose connections. If the cables are fine, inspect the motor for any mechanical issues that might be causing it to stall. You can also check the current limits in the Siemens G120 parameters and adjust them if necessary, but make sure they match the motor's specifications.
Error Code F0002: Overvoltage
Overvoltage, shown by error code F0002 on the Siemens 6SL3210-1PE23-8UL0, often occurs when there's a sudden increase in the input voltage. This can happen due to power grid fluctuations or when the motor is decelerating too quickly, causing regenerative energy to build up.
To solve this, first check the mains voltage to ensure it's within the rated range of the Siemens 6SL3210-1PE23-8UL0. If the voltage is unstable, consider using a voltage stabilizer. For regenerative energy issues, adjust the deceleration time in the Siemens G120 settings. A longer deceleration time allows the energy to dissipate more gradually. In some cases, adding a braking resistor to the Siemens 6SL3210-1PE23-8UL0 can help absorb excess regenerative energy.
Motor Not Starting
If the motor connected to the Siemens 6SL3210-1PE23-8UL0 doesn't start, there are a few things to check. First, ensure the Siemens 6SL3210-1PE23-8UL0 is receiving power. Check the main switch, fuses, and power cables for any breaks or loose connections.
Next, look at the control signals. The Siemens G120 drive, including the 6SL3210-1PE23-8UL0, relies on proper control signals to start the motor. Check if the start signal is reaching the drive-this could be from a PLC, a button, or another control device. If there's no start signal, inspect the control wiring for faults. Also, check if there are any active error codes on the Siemens 6SL3210-1PE23-8UL0 display; sometimes, a hidden fault prevents the motor from starting until the issue is resolved.
Unusual Noise from the Drive
Unusual noises, like humming or rattling, coming from the Siemens 6SL3210-1PE23-8UL0 can be a sign of trouble. This might be due to loose internal components, a faulty cooling fan, or issues with the motor bearings.
First, turn off the Siemens 6SL3210-1PE23-8UL0 and check for loose screws or parts inside the drive. Tighten any that are loose, but be careful not to touch any electrical components without proper insulation. If the noise is from the cooling fan, check if it's clogged with dust or debris. Clean the fan or replace it if it's damaged. If the noise is coming from the motor, it might be a bearing issue-inspect the motor and replace the bearings if needed.
Step-by-Step Troubleshooting for Siemens 6SL3210-1PE23-8UL0
Step 1: Check the Display
The first thing to do when the Siemens 6SL3210-1PE23-8UL0 has a problem is to look at its display. It will show an error code that points to the specific issue. Write down the error code-this is your biggest clue. You can find the meaning of each error code in the Siemens G120 manual, which is available online or with your equipment.
Step 2: Power Cycle the Drive
Sometimes, a simple power cycle can fix minor issues with the Siemens 6SL3210-1PE23-8UL0. Turn off the power to the drive, wait for 30 seconds, then turn it back on. Check if the problem persists. This works because it resets any temporary glitches in the system.
Step 3: Inspect Connections
Loose or damaged connections are a common cause of faults in the Siemens 6SL3210-1PE23-8UL0. Check all power cables, control wires, and motor connections. Make sure they are tight and free from corrosion. If you find any damaged wires, replace them immediately. Poor connections can cause erratic behavior or even damage the drive.
Step 4: Verify Parameters
Incorrect parameter settings in the Siemens G120 can lead to problems with the Siemens 6SL3210-1PE23-8UL0. Compare the current parameters with the recommended settings for your motor and application. Pay special attention to parameters related to motor type, voltage, current, and speed. If you're not sure about the correct settings, refer to the Siemens G120 manual or contact technical support.
Preventive Measures to Keep Siemens 6SL3210-1PE23-8UL0 Running Smoothly
Regular Cleaning
Dust and debris accumulation inside the Siemens 6SL3210-1PE23-8UL0 can cause overheating and other issues. Clean the drive regularly: use a soft brush or compressed air (with a pressure not exceeding 0.5 MPa) to remove dust from the heat sink, fan, and internal gaps. Ensure the power is turned off before cleaning to prevent electric shock. Additionally, keep the area around the Siemens 6SL3210-1PE23-8UL0 clean and unobstructed to maintain proper airflow and heat dissipation efficiency.
Scheduled Maintenance
Establish a maintenance schedule for the Siemens 6SL3210-1PE23-8UL0. Conduct weekly inspections: check the drive's operating temperature (should not exceed 40°C under normal load), the tightness of connections, and the status of cooling fans. Perform monthly maintenance: verify key parameters against standard settings, test the functionality of protection devices (such as overcurrent and overvoltage protection), and inspect cable insulation with a megohmmeter (insulation resistance should be ≥10MΩ). Regular maintenance can identify small problems before they escalate, saving time and costs in the long run.
Training for Technicians
Ensure that all mold shop technicians working with the Siemens 6SL3210-1PE23-8UL0 receive basic training on its operation and troubleshooting. They should master skills such as reading error codes, performing safe power-off inspections, and using basic testing tools (multimeters, oscilloscopes). Training should also emphasize safety procedures, such as wearing insulated gloves when handling live components and following lockout-tagout protocols during maintenance. Proper training reduces the risk of operational errors that could damage the drive or cause production downtime.
Conclusion
The Siemens 6SL3210-1PE23-8UL0 is a reliable component of the Siemens G120 series, but like any equipment, it can experience faults. By understanding common issues such as error codes F0001 and F0002, motor starting problems, and unusual noises, and following the step-by-step troubleshooting procedures, mold shop technicians can resolve most issues efficiently. Implementing regular maintenance and ensuring proper technician training are key to keeping the Siemens 6SL3210-1PE23-8UL0 running smoothly, thus ensuring the productivity of the mold shop. Remember, if you are ever unsure about a fault, refer to the Siemens G120 manual or consult a qualified technician for assistance.
