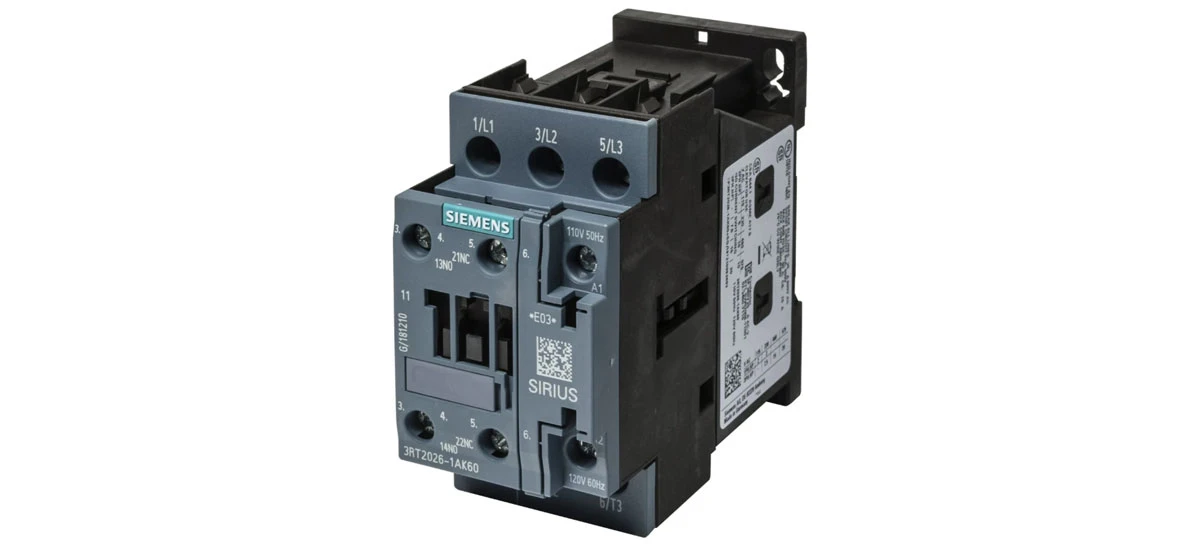

If you work with industrial electrical equipment-like motors in factories or production lines-you've probably used the Siemens 3RT2026-1AK60. This contactor is popular because it's tough and reliable, but when it stops working, it can slow down your work or even stop production. Common problems like the Siemens 3RT2026-1AK60 not turning on, overheating, or making weird noises can be frustrating, especially if you don't know how to fix them quickly.
This blog is made for anyone who uses the Siemens 3RT2026-1AK60-whether you're a new technician or someone who's used the contactor for years. We'll use simple steps, easy-to-understand language, and safe practices to help you troubleshoot these issues. You won't need fancy tools (just basic ones like a multimeter) and we'll focus on fixes that work. By the end, you'll not only know how to solve current problems with your Siemens 3RT2026-1AK60 but also how to keep it running well for longer. Let's get started!
Siemens 3RT2026-1AK60 Not Turning On: Causes and Fixes
One of the most frustrating issues with the Siemens 3RT2026-1AK60 is when it won't turn on at all. If you're facing this, you need to find the root cause quickly. Below are the main reasons and how to fix them-this will help you with How to fix Siemens 3RT2026-1AK60 not turning on.
Cause 1: Power Supply Problems
The Siemens 3RT2026-1AK60 needs a steady power supply to work. If there's no power reaching the contactor, it won't turn on. First, check if the main power switch is on. Then, use a multimeter to test the voltage at the power input terminals of the Siemens 3RT2026-1AK60. The correct voltage for the Siemens 3RT2026-1AK60 is usually 230V AC (check your device's label to confirm). If the voltage is too low or zero, the problem is with the power source-fix the power line or replace the fuse before trying the Siemens 3RT2026-1AK60 again.
Cause 2: Loose or Damaged Wiring
Loose or broken wires can also stop the Siemens 3RT2026-1AK60 from turning on. Turn off the power first (for safety!) and then check all wiring connections on the Siemens 3RT2026-1AK60. Look for wires that are not tightly screwed into the terminals or wires with damaged insulation (the plastic cover). If you find a loose wire, tighten the terminal screw gently. If a wire is damaged, replace it with a new one that matches the recommended wire size for the Siemens 3RT2026-1AK60 (usually 1.5-2.5 mm² for power connections).
Cause 3: Faulty Coil
The coil inside the Siemens 3RT2026-1AK60 is what activates the contactor. If the coil is broken, the Siemens 3RT2026-1AK60 won't turn on. To test the coil, use a multimeter set to "ohms" (resistance mode). Disconnect the coil wires from the power supply, then touch the multimeter probes to the coil's two terminals. The normal resistance for the Siemens 3RT2026-1AK60 coil is around 800-1000 ohms (check Siemens' official datasheet for exact values). If the resistance is 0 ohms (short circuit) or infinity (open circuit), the coil is faulty. You'll need to replace the coil with a genuine Siemens part to keep the Siemens 3RT2026-1AK60 working properly.
Siemens 3RT2026-1AK60 Overheating: What You Need to Do
Overheating is another common issue with the Siemens 3RT2026-1AK60. If the contactor feels too hot (more than 60°C to the touch), it can damage internal parts and lead to failure. Let's troubleshoot this problem-this section will help with Siemens 3RT2026-1AK60 overheating troubleshooting.
Cause 1: Overloaded Electrical Load
The Siemens 3RT2026-1AK60 is designed to handle a specific maximum current (its rated current is 12A for AC-3 loads, per Siemens specs). If you connect a device (like a motor) that draws more current than this, the Siemens 3RT2026-1AK60 will overheat. To check, use a clamp meter to measure the current flowing through the contactor's output terminals when it's working. If the current is higher than 12A, you're overloading the Siemens 3RT2026-1AK60. Fix this by reducing the load (e.g., using a smaller motor) or replacing the Siemens 3RT2026-1AK60 with a higher-rated model if needed.
Cause 2: Poor Ventilation
The Siemens 3RT2026-1AK60 needs space to cool down. If it's installed in a tight cabinet with no air flow, or if the cabinet is full of other hot components, the contactor will overheat. First, check the installation area: make sure there's at least 5cm of space around the Siemens 3RT2026-1AK60. If it's in a cabinet, ensure the cabinet has vents or a small fan to circulate air. Clean any dust or dirt from the Siemens 3RT2026-1AK60's surface-dust acts like insulation and traps heat.
Cause 3: Worn-Out Contacts
The metal contacts inside the Siemens 3RT2026-1AK60 can wear down over time. When contacts are worn, they create more resistance, which generates heat. To check the contacts, turn off the power and open the contactor's cover (follow Siemens' safety guidelines). Look for contacts that are blackened, pitted, or bent. If the contacts are only slightly worn, you can clean them gently with fine sandpaper. If they're severely damaged, replace the contact block with a genuine Siemens part for the Siemens 3RT2026-1AK60. Never use non-genuine parts-they can cause more overheating and damage.
Unusual Noises from Siemens 3RT2026-1AK60: Troubleshooting Steps
Strange noises (like buzzing, clicking, or grinding) from the Siemens 3RT2026-1AK60 are a sign something is wrong. Ignoring these noises can lead to bigger problems. Let's find out why they happen-this will answer Why does Siemens 3RT2026-1AK60 make unusual noises.
Cause 1: Loose Iron Core
The Siemens 3RT2026-1AK60 has an iron core that pulls the contacts closed when the coil is activated. If the core is loose (from vibration or a broken spring), it will buzz. To fix this, turn off the power and open the contactor. Check the core for loose screws or broken parts. Tighten any loose screws gently-don't over-tighten, as this can damage the core. If the spring is broken, replace it with a Siemens-approved spring.
Cause 2: Foreign Objects Inside the Contactor
Dust, small pieces of metal, or other debris can get inside the Siemens 3RT2026-1AK60 and cause noises. For example, a piece of dust between the core and the contactor body can make a clicking sound. To fix this, turn off the power, open the contactor, and use a soft brush (like a paintbrush) to clean out any debris. Never use water or liquid cleaners-they can damage the electrical parts of the Siemens 3RT2026-1AK60.
Cause 3: Low Coil Voltage
If the voltage reaching the Siemens 3RT2026-1AK60's coil is too low, the coil won't pull the core fully closed. This causes the core to vibrate and make a buzzing noise. Use a multimeter to test the voltage at the coil terminals (while the contactor is supposed to be on). The voltage should match the coil's rated voltage (usually 230V AC for the Siemens 3RT2026-1AK60). If it's too low, check the power supply-there may be a loose wire or a faulty transformer. Fix the power issue to stop the noise.
Siemens 3RT2026-1AK60 Wiring Errors: How to Identify and Correct
Wiring mistakes are a common cause of problems with the Siemens 3RT2026-1AK60. Even small errors can make the contactor work incorrectly or not at all. Let's learn how to spot and fix these errors-this section covers Siemens 3RT2026-1AK60 wiring error solutions.
Cause 1: Swapped Power and Load Wires
The Siemens 3RT2026-1AK60 has two sets of terminals: one for power input (usually labeled "L1, L2, L3") and one for load output (usually labeled "T1, T2, T3"). If you connect the power wire to the load terminals and the load wire to the power terminals, the Siemens 3RT2026-1AK60 won't control the load correctly. To check, turn off the power and compare your wiring to the Siemens 3RT2026-1AK60's wiring diagram (found in the user manual). If the wires are swapped, disconnect them and rewire correctly-power to L1/L2/L3 and load to T1/T2/T3.
Cause 2: Loose Terminal Connections
Loose wiring terminals can cause the Siemens 3RT2026-1AK60 to flicker, overheat, or stop working. Over time, vibration can loosen the terminal screws. To fix this, turn off the power and use a screwdriver to tighten each terminal screw. Use the right size screwdriver-too small, and you'll damage the screw; too big, and you'll damage the terminal. After tightening, gently pull each wire to make sure it doesn't come loose.
Cause 3: Wrong Wire Size
Using wires that are too small for the Siemens 3RT2026-1AK60 can cause overheating and wiring failures. The Siemens 3RT2026-1AK60 requires wires of a specific size: for power connections, use 1.5-2.5 mm² copper wire (check the user manual for exact specs). If you're using smaller wires, replace them with the correct size. Using larger wires than recommended is okay, but they may be hard to fit into the terminals-so stick to the recommended range.
Preventive Maintenance for Siemens 3RT2026-1AK60 to Avoid Future Issues
The best way to avoid troubleshooting the Siemens 3RT2026-1AK60 is to do regular preventive maintenance. This keeps the contactor working well and stops small issues from becoming big ones. Below are key maintenance steps-they'll also help with Troubleshooting Siemens 3RT2026-1AK60 contactor failure by preventing failures in the first place.
Step 1: Monthly Visual Checks
Every month, turn off the power and look at the Siemens 3RT2026-1AK60. Check for:
- Cracked or damaged plastic parts
- Blackened or burnt contacts (a sign of overheating)
- Loose wires or terminals
- Dust or debris on the surface
If you see any of these, fix them right away (e.g., clean dust, tighten wires) to prevent further damage.
Step 2: Quarterly Cleaning
Every 3 months, give the Siemens 3RT2026-1AK60 a thorough clean. Turn off the power, open the contactor (if needed), and use a soft brush or compressed air (low pressure) to remove dust. Avoid using vacuum cleaners-they can create static electricity that damages the contactor. Wipe the outside of the Siemens 3RT2026-1AK60 with a dry cloth.
Step 3: Semi-Annual Electrical Tests
Every 6 months, test the electrical parts of the Siemens 3RT2026-1AK60 to make sure they're working:
- Coil Resistance Test: Use a multimeter to check the coil's resistance (as we did earlier). It should still be around 800-1000 ohms.
- Voltage Test: Turn on the power and test the voltage at the power and coil terminals. Ensure it's within the Siemens 3RT2026-1AK60's rated range.
- Current Test: Use a clamp meter to check the load current. It should not exceed the 12A AC-3 rating.
Step 4: Annual Part Inspections
Once a year, check for worn parts in the Siemens 3RT2026-1AK60. This includes:
- Contacts: Look for wear or pitting-replace if needed.
- Springs: Check if they're still flexible (broken springs cause loose cores).
- Wires: Look for damage or aging insulation-replace if needed.
Always use genuine Siemens parts for replacements-non-genuine parts can reduce the Siemens 3RT2026-1AK60's lifespan and cause safety risks.
Conclusion
The Siemens 3RT2026-1AK60 is a reliable contactor, but it can face common issues like not turning on, overheating, or making noises. By following the troubleshooting steps in this blog, you can fix these problems quickly and safely. Remember to use trusted tools (like multimeters) and genuine Siemens parts to keep the Siemens 3RT2026-1AK60 working well. Regular preventive maintenance is also key-it stops issues before they start and extends the life of your Siemens 3RT2026-1AK60. If you're ever unsure about a problem, refer to the Siemens 3RT2026-1AK60 user manual or contact Siemens customer support for help.
