In today's industrial world, machines and equipment rely heavily on drives to function properly. Legacy drives, which are older types of drives, have been used for many years. However, as technology advances, they are becoming less efficient and more difficult to maintain. Parts for these old drives are often hard to find, and when they break down, production lines can stop for days. This is where Sinamics V90 comes in. Upgrading to Sinamics V90 from legacy drives can bring a lot of benefits, and in this blog, we will explore the migration framework and cost analysis of this upgrade.
Why Upgrade to Sinamics V90?

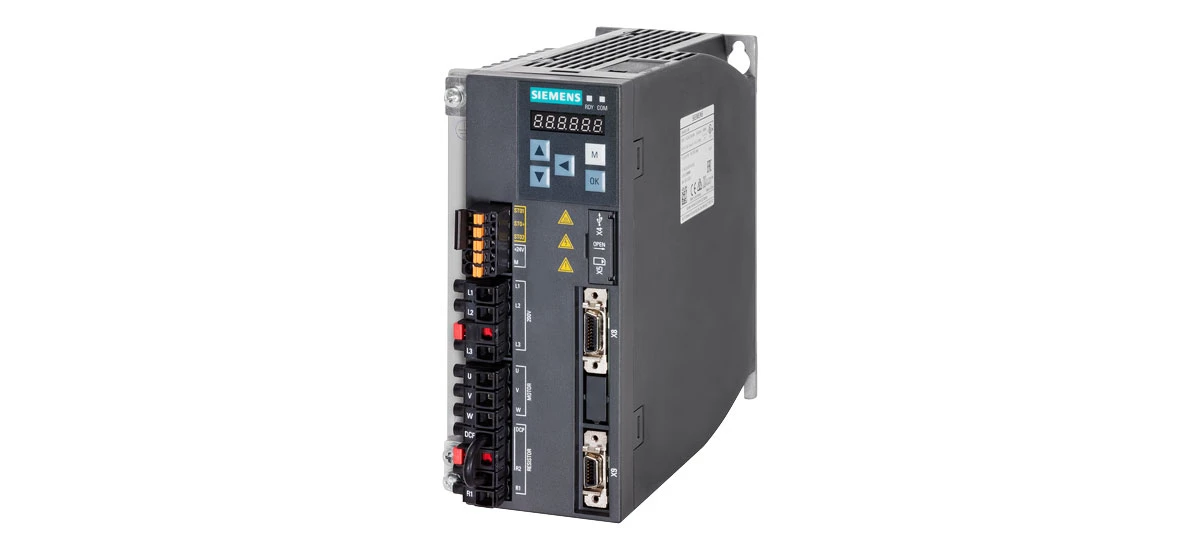

Legacy drives often have issues such as high energy consumption, frequent breakdowns, and limited compatibility with new technologies. For example, an old drive might use 20% more electricity than a modern one while running the same machine. They may also lack the advanced features that modern production requires, like precise speed control or remote monitoring. Sinamics V90, on the other hand, is a state-of-the-art drive system that offers better performance, higher efficiency, and improved reliability. It works well with new software and sensors, making it easier to connect to factory management systems. It is designed to meet the needs of today's industrial applications, making it a great choice for those looking to upgrade their drives.
Migration Framework for Upgrading to Sinamics V90
Assessment of Current System
The first step in the migration process is to assess the current system. This involves looking at the existing legacy drives, their specifications, and how they are integrated into the overall machinery. You need to check factors such as the motor type (AC or DC), power requirements (in kW or HP), and control signals (analog or digital). For instance, if your legacy drive uses a 3-phase AC motor with 5.5 kW power, you need to find a Sinamics V90 model that matches this. This assessment helps determine if Sinamics V90 is compatible with the current setup and what modifications may be needed, such as changing wiring or updating control panels.
Selection of Sinamics V90 Model
Based on the assessment, you can then select the appropriate Sinamics V90 model. Sinamics V90 comes in different models with varying power ratings (from 0.12 kW to 7.5 kW) and features. Some models support pulse train control, while others work with PROFINET communication. It is important to choose a model that matches the requirements of your application. For example, if you need a drive for a high-speed packaging machine that runs at 3000 RPM, you would select a model that can handle the required speed. Sinamics V90 migration steps include carefully matching the model to your specific needs to avoid performance issues.
Planning the Installation
Once the model is selected, the next step is to plan the installation. This includes determining the location where the Sinamics V90 will be installed, ensuring there is enough space (at least 10 cm of clearance around the drive for cooling) and proper ventilation. You also need to plan the wiring and connections, making sure they are compatible with the existing system. For example, if the legacy drive used a 24V control signal, the new Sinamics V90 should be wired to accept the same signal. The Sinamics V90 installation guide can be a useful resource here, providing step-by-step instructions on how to install the drive correctly.
Installation and Commissioning
The actual installation involves removing the legacy drives and replacing them with Sinamics V90. During this process, it is important to follow the installation guide to ensure safety-for example, disconnecting the power supply before starting work. After installation, commissioning is done to set up the drive parameters, such as maximum speed and acceleration time, using the built-in keypad or software tools like SINAMICS Startdrive. This includes checking the speed, torque, and other functions to make sure they meet the desired specifications. For example, testing if the drive can slow down smoothly when the machine needs to stop.
Testing and Validation
After commissioning, thorough testing and validation are necessary. This involves running the machinery with the new Sinamics V90 drives for several hours to ensure they work smoothly. You need to check for any errors or issues, such as unusual noises or error codes on the drive display, and make adjustments as needed. This step is crucial to ensure the system operates reliably in a production environment, especially during peak production times.
Cost Analysis of Upgrading to Sinamics V90
Initial Purchase Cost
The initial cost of Sinamics V90 may be higher than that of legacy drives. For example, a 2.2 kW Sinamics V90 might cost around $500, while a used legacy drive of the same power could be $200. However, when considering the long-term benefits, this investment is often worthwhile. The price of Sinamics V90 varies depending on the model and specifications, but it is important to look at the overall value it provides.
Maintenance Costs
Legacy drives often require frequent maintenance, which can be costly in terms of parts and labor. For example, an old drive might need a new capacitor every 6 months, costing $100 each time, plus $150 in technician fees. Sinamics V90 is designed to be more reliable, with a mean time between failures (MTBF) of over 100,000 hours. This reduces the need for frequent maintenance, leading to significant savings in maintenance costs over time. The improved durability of Sinamics V90 means fewer breakdowns and less downtime, which is crucial for keeping production running smoothly.
Energy Savings
One of the major advantages of Sinamics V90 is its high energy efficiency. Legacy drives tend to consume more energy-for example, a 5.5 kW legacy drive might use 6 kWh per hour, while a Sinamics V90 of the same power uses only 5 kWh. With electricity costs at $0.15 per kWh, this adds up to $547.5 in savings per year for a drive running 24/7. By upgrading to Sinamics V90, you can reduce energy consumption, leading to lower energy costs. Over time, these energy savings can add up and offset the initial purchase cost. Upgrading to Sinamics V90 benefits include these significant energy savings.
Productivity Improvements
Sinamics V90 offers better performance and faster response times compared to legacy drives. For example, a conveyor belt using a legacy drive might take 2 seconds to reach full speed, while with Sinamics V90, it takes only 1 second. This can lead to improved productivity in production processes. Machines can run more efficiently, reducing cycle times and increasing output-perhaps producing 10 more products per hour. The increased productivity can result in higher profits, making the upgrade to Sinamics V90 a smart business decision.
Sinamics V90 vs Legacy Drives
When comparing Sinamics V90 vs legacy drives, it is clear that Sinamics V90 has many advantages. It offers better efficiency-using up to 30% less energy in some cases-reliability, and performance. It also has advanced features such as built-in safety functions (like STO, Safe Torque Off) that prevent unexpected startup and easy integration with other automation systems like PLCs. Legacy drives, on the other hand, are outdated and cannot keep up with the demands of modern industry. They lack these safety features and often require manual adjustments, which are time-consuming and error-prone.
In conclusion, upgrading to Sinamics V90 from legacy drives is a wise choice for industrial businesses. The migration framework provides a clear path to ensure a smooth transition, and the cost analysis shows that the long-term benefits-lower maintenance, reduced energy bills, and higher productivity-outweigh the initial investment. With its superior performance, energy efficiency, and reliability, Sinamics V90 can help businesses improve productivity and reduce costs. So, if you are still using legacy drives, it's time to consider upgrading to Sinamics V90.
