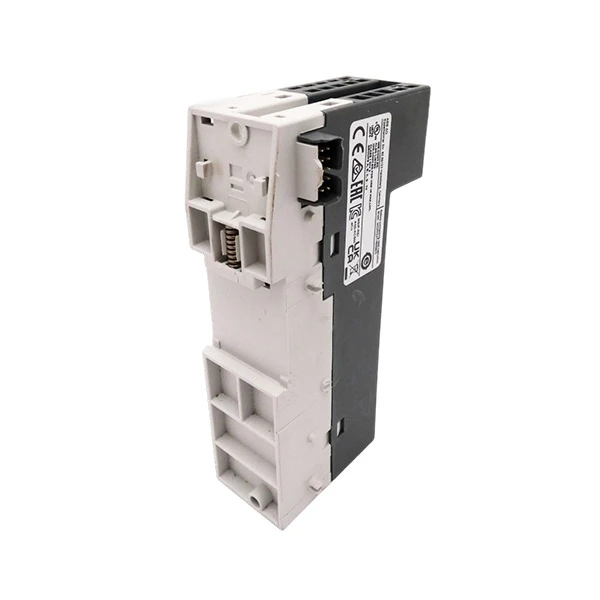

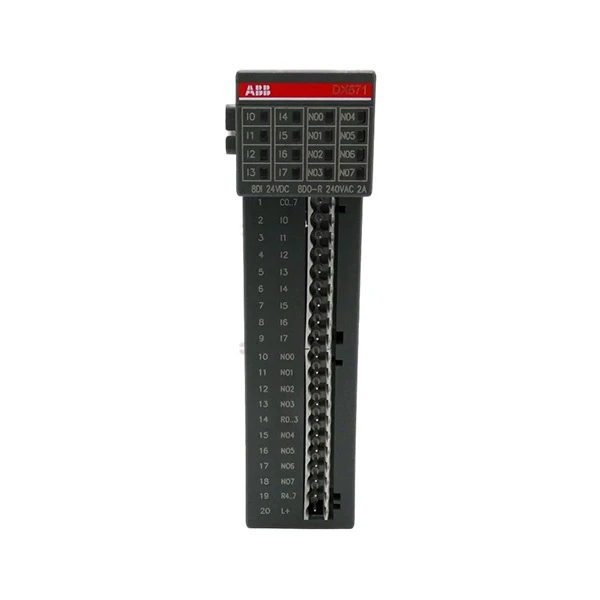

ABB DX571 1TNE968902R2302

Brand: ABB
Model: DX571 1TNE968902R2302

Inventory situation: Goods are available in stock.

Product features

The ABB DX571 1TNE968902R2302 is a dependable digital input/output (I/O) module intended for industrial automation systems. It is part of the ABB AC500-eCo family, which is well-known for its outstanding performance and durability in a variety of industrial applications. This module is well-suited for applications that need accurate control and monitoring of digital data, making it a popular choice in manufacturing facilities, power distribution systems, and process control environments.

The DX571 1TNE968902R2302 supports a wide range of signals thanks to its 8 digital inputs (DI) and 8 digital outputs (DO). The inputs accept 24V DC electricity and are compatible with both sink and source configurations, providing for versatile connections to sensors, switches, and other devices. The outputs are fitted with relays capable of switching up to 2A of current at 120/240V AC, making them ideal for controlling motors, solenoids, and other high-power equipment. This combination of inputs and outputs provides smooth integration with a variety of industrial gear and systems.

The compact design of the ABB DX571 1TNE968902R2302 is one of its most significant advantages. Its dimensions are 34mm (W) × 74mm (H) × 135mm (D) making it ideal for control panels with limited space. Despite its compact size, the module provides robust performance over a wide working temperature range of 0°C to +60°C, ensuring dependable operation in tough industrial conditions. It also has an IP20 rating, which protects against dust and ensures restricted contact with solid objects.

The ABB DX571 1TNE968902R2302 is intended for easy installation and maintenance. It can be placed on a conventional 35mm DIN rail in accordance with the IEC 60715 standard, allowing for easy setup and replacement. The module connects using pluggable terminals, which simplifies wiring and reduces downtime during repairs. It also supports a variety of communication protocols, including Profinet, Profibus, and CANopen, which allows for smooth interaction with other automation network components.

Specifications

Input Configuration	8-channel digital input (DI)
Output Configuration	8-channel digital output (DO)
Signal Type	Input as switch signal, output as relay contact signal
Input Voltage Range	0-30V DC (typical value 24V DC)
Output Voltage Range	24-230V AC/DC, maximum withstand voltage 276V
Output Load Capacity	2A (resistive load)
Operating Temperature	0°C to +60°C
Dimensions	34mm (W) × 74mm (H) × 135mm (D)

Application Scenarios

The ABB DX571 1TNE968902R2302 is a critical component in factory automation. It connects PLCs to devices such as proximity switches, buttons, and solenoid valves to ensure that manufacturing stages go smoothly. It may, for example, monitor conveyor belt movements, control robotic arms, and handle packing machines, all of which reduce manual labor and increase efficiency. Its pluggable connections and user-configurable I/O system enable quick setup and modification, making it appropriate for both small-scale projects and large-scale smart factories.

In factories, the ABB DX571 1TNE968902R2302 is used to automate manufacturing lines. It connects PLCs to devices such as proximity switches, buttons, and solenoid valves, ensuring that all stages of manufacturing run smoothly. It can, for example, monitor conveyor belt movements, control robotic arms, or handle packing machines, all of which reduce manual labor and increase efficiency. Its pluggable connections and user-configurable I/O system allow for rapid setup and customization, making it ideal for both small-scale projects and large-scale smart factories.

FAQ

Q: What is the ABB DX571 1TNE968902R2302 digital I/O module?

A: The ABB DX571 (1TNE968902R2302) is a digital input/output module in the ABB S500-eCo I/O family. A highlight of when it was first introduced in 2010, the DX571 combines digital inputs and relay outputs into a single compact module-making it particularly suited for cost-saving application solutions where both sensing and actuation are required in the same footprint. When the AC500-eCo system is expanded with DX571 modules, the total current consumption on the L+/UP terminals increases by 5 mA per additional DX571 module.

Q: What are the key technical specifications of the ABB DX571 module?

A: The DX571 delivers a fixed I/O configuration: 8 digital input channels and 8 relay output channels. The digital inputs are sink/source type with an input voltage range of 24V DC and draw 5 mA per channel. The relay outputs are rated for 120–240V AC at a maximum switching current of 2A per channel. The module features a 1-wire communication interface. The enclosure is rated IP20, and the PCB of the module is conformally coated to provide protection against humidity and dust.

Q: What are the exact dimensions and weight of the DX571 1TNE968902R2302?

A: The ABB DX571 measures 34mm (W) × 74mm (H) × 135mm (D). The product net weight is 0.14 kg (approximately 140 g), with a gross weight of 0.242 kg when packaged. The module is designed for standard DIN rail mounting and can be installed in either horizontal or vertical orientation with natural convection cooling. The slot width required for the AC500-eCo mounting rail is 30mm, and the depth from the front edge of the mounting rail is 109mm.

Q: What is the maximum cable length supported by the DX571 for inputs and outputs?

A: For digital inputs, the maximum cable length is 500 meters when shielded and 300 meters when unshielded. For digital outputs, the maximum cable length is 500 meters when shielded and 150 meters when unshielded.

Q: What are the operating temperature and environmental conditions for the ABB DX571?

A: The module operates within an ambient air temperature range of 0°C to +60°C in horizontal mounting orientation. When mounted vertically, the output load must be reduced to 50% and the operating temperature range decreases to 0°C to +40°C. Storage temperature spans from -40°C to +70°C. The module accepts a supply voltage of 20.4V DC to 28.8V DC, with a maximum ripple of 5%. Operating humidity is rated at up to 95%, non-condensing.
