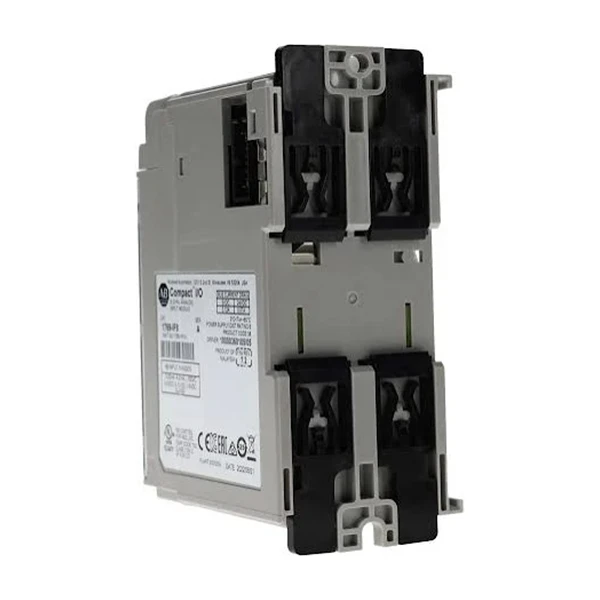

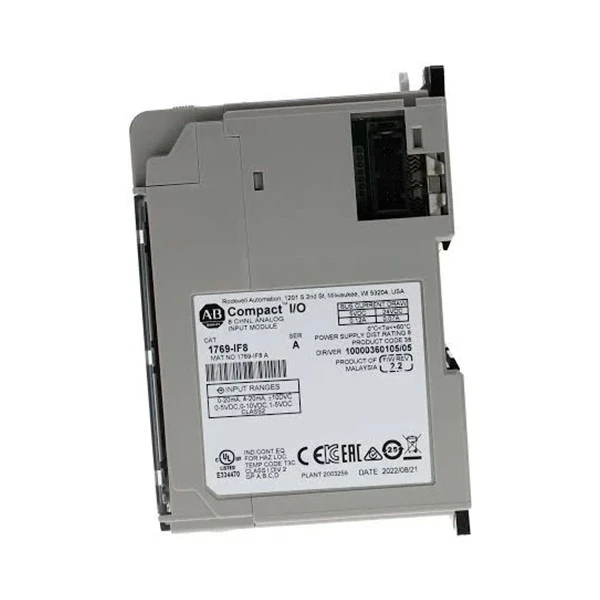

Allen Bradley 1769-IF8
Brand：Allen Bradley
Model：1769-IF8
Inventory situation: Goods are available in stock.
Application scenarios
In the packaging business, the Allen Bradley 1769-IF8 is extremely useful. For example, in a snack packaging line, it is linked to pressure sensors on sealing machines. The sensors determine if the container is tightly sealed. The 1769-IF8 transmits this information to the PLC. If the pressure is incorrect, the PLC promptly stops the machine, minimizing the number of badly sealed packs. With 8 channels, it can monitor several sealing locations at the same time, resulting in faster production.
Metal production workshops also rely on the Allen Bradley 1769-IF8. When cutting metal sheets using a laser machine, temperature sensors measure the laser's heat. The 1769-IF8 reads and transmits these temperature signals to the PLC. If the laser becomes too hot, the PLC reduces its power to avoid harm. This keeps the machine running longer and ensures that the metal cuts are accurate. Workers can also utilize the module's data to determine the optimal temperature for other metals.
In the pharmaceutical business, the 1769-IF8 contributes to the maintenance of tight standards. It links to liquid level sensors in mixing tanks where medicines are manufactured. The module determines how much liquid is in the tank and notifies the PLC. If the level falls too low, the PLC adds additional raw materials. This ensures that each batch of medicine contains the correct amount of components. The module's accurate readings reduce waste and maintain the medicine as safe to use.
Specifications
|
Device Dimensions |
118x90x25 mm (W * H * D) |
|
Weight |
Approximately 0.31kg |
|
Power Consumption |
20 mW |
|
Operating Temperature Range |
0 to 60 °C |
|
Storage Temperature Range |
-40 to 85°C |
|
Storage relative moisture level |
5 to 95% (Non-condensing) |
Product features
The Allen Bradley 1769-IF8 is a dependable analog input module developed for industrial automation applications. This 8-channel module, part of the CompactLogix family, is perfect for transforming analog sensor signals into digital data that can be processed by PLCs. It accepts a variety of input types, including 4-20 mA current, 0-10 VDC voltage, and thermocouples, making it suitable for applications such as temperature monitoring, pressure management, and flow measurement in factories and manufacturing facilities.
The 1769-IF8 offers 16-bit resolution (unipolar) or 15-bit resolution (bipolar) for precise measurements with ±0.1% full-scale accuracy and a quick 10 ms response time. The delta-sigma analog-to-digital converter lowers noise and interference, and the 1500V RMS isolation protects against voltage spikes, increasing reliability in severe industrial applications. The module also has overvoltage and overcurrent protection, which ensures long-term stability even in extreme settings.
This module is compatible with Allen Bradley CompactLogix 5370/5380 controllers and MicroLogix 1500 systems, allowing for easy integration into current automation configurations. It employs Rockwell Automation's Studio 5000 software for simple configuration, allowing users to change input ranges, scaling, and diagnostics without requiring complicated programming. The tiny size (118x90x25 mm) and lightweight (0.5 kg) make it ideal for space-constrained control panels, while the IP20-rated shell protects against dust and solid objects.
FAQ
