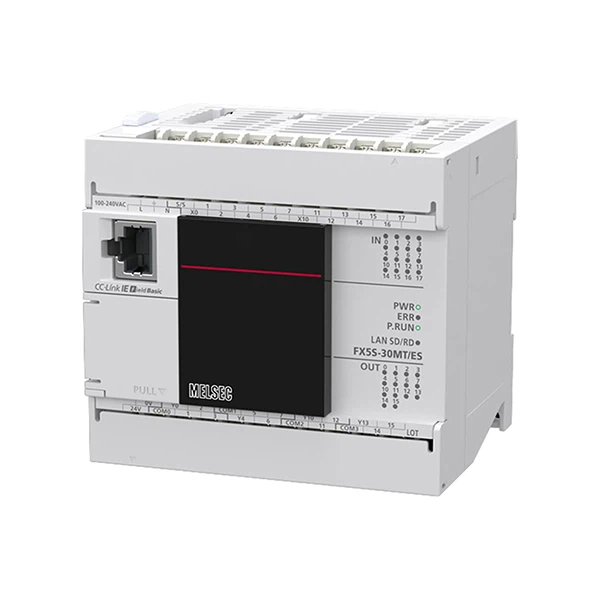

Mitsubishi FX5S 30MT ES
Brand：Mitsubishi
Model：FX5S 30MT ES
Inventory situation: Goods are available in stock.
Product Description
The Mitsubishi FX5S 30MT ES is a powerful compact Programmable Logic Controller (PLC) from the MELSEC iQ-F series, designed to deliver reliable and efficient automation for small to medium-scale industrial applications. This all-in-one CPU unit combines 30 built-in I/O points (16 digital inputs, 14 transistor outputs) with advanced features to meet diverse control needs without requiring additional expansion modules.
At the heart of the Mitsubishi FX5S 30MT ES is a high-speed processor that executes basic LD instructions in just 84ns and MOV instructions in 100ns-this processing speed is 40% faster than many competing compact PLC models in its class. The unit includes 48K steps (96KB) of non-volatile FLASH program memory, eliminating the need for battery backup and ensuring reliable data retention during power outages. With 32,768 data registers and 8,000 internal relays, the FX5S 30MT ES provides ample resources for complex control logic and data processing tasks.
The Mitsubishi FX5S 30MT ES features 16 DC24V digital inputs with flexible response times: X0-X1/X3-X4 operate at 5μs for high-speed applications, X2/X5-X7 at 30μs, and X10-X17 at 50μs. Input current ranges from 4.0mA to 5.1mA depending on the channel, with adjustable digital filtering from 10μs to 70ms to reduce noise interference.
For output control, the 14 transistor (sink-type) outputs support DC5-30V operation with 0.5A per point capacity and 0.6A/0.8A per common terminal limits. Critical outputs Y0-Y3 offer ultra-fast response times of 5μs for precise timing applications, while Y4 and above deliver 0.2ms response for general-purpose control.The FX5S 30MT ES excels in high-speed operations with 4 channels of 100kHz and 4 channels of 10kHz built-in high-speed counters, plus 4-axis pulse positioning control (100kpps) for accurate motion applications-eliminating the need for external positioning modules.
Specifications
| Device Dimensions | 90 x 90 x 80 mm (W * H * D) |
| Weight | Approximately 440g |
| Power Supply Voltage | 24 V DC |
| Power Consumption | Maximum approximately 1.5 W |
| Operating Temperature Range | 0 to 55 °C |
| Storage Temperature Range | -20 to 70 °C |
| Storage Humidity | 10 to 95 %(No condensation.) |
Application scenarios
In material handling systems, the Mitsubishi FX5S 30MT ES is used to regulate conveyor belts and sorting equipment. It connects three conveyor belts and eight proximity sensors, and its 84ns LD instruction processing speed allows it to respond to sensor signals in real time. This quick response guarantees that materials move smoothly, increasing handling efficiency by 40% and lowering the chance of material blockages. The Mitsubishi FX5S 30MT ES also supports MODBUS communication, which allows it to link with two HMIs, allowing workers to easily monitor and modify the conveyor belt speed (0-10m/min) based on production requirements.
For tiny manufacturing lines, such as electronic component assembly lines, the Mitsubishi FX5S 30MT ES serves as the primary controller. It controls four frequency converters and ten operating buttons, producing 200 cycles each eight-hour shift with a 99.8% stability rate. Its 48K steps of FLASH program memory may hold complicated control logic, allowing for the automated manufacture of minor electronic components such as resistors and capacitors. The Mitsubishi FX5S 30MT ES also includes an Ethernet interface for remote monitoring of the production line, saving two hours of manual inspection work every day.
