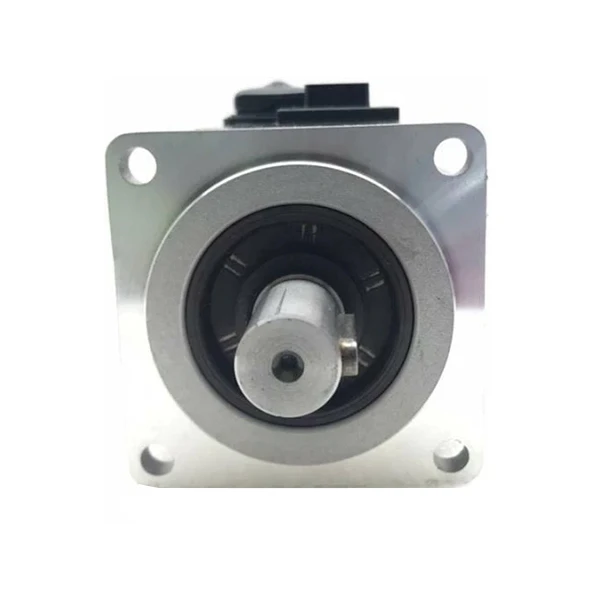

HG-KN43J-S100 Mitsubishi(13)

Brand：Mitsubishi
Model：HG-KN43J-S100

Inventory situation: Goods are available in stock.

Product Description

HG-KN43J-S100 Mitsubishi;MR-JE Series;HG-KN43J Low Inertia Motor;Mitsubishi 400W Servo Motor KN43J;Servo Motor with a Rated Torque of 1.3N·m;Servo Motor with a 17-bit Absolute Encoder;Servo Motor with IP65 Protection for Humid Environments

Specifications

Motor type	HG-KN series
Rated output	400W
Rated torque	1.3N·m
Maximum torque	3.8N·m
Rated speed	3000r/min
Maximum speed	5000r/min
Rated current	2.6A
Maximum current	7.8A

Product featuress

The servo motor Mitsubishi HG-KN43J-S100 was created for a range of industrial uses.It operates at a rated output of 400 watts and is part of the 200VAC voltage class. It has been engineered to deliver reliable performance with a rotational speed of 3000 RPM and a maximum speed of 5000 RPM. With a nominal torque rating of 1.3 Nm and a maximum torque capacity of 3.8 Nm, this model is well-suited for applications requiring quick reaction to changing load conditions.

With an IP65 rating, the Mitsubishi HG-KN43J-S100 motor provides excellent protection against dust and moisture, making it appropriate for use in industrial settings. The motor is guaranteed to function under a variety of circumstances thanks to its operational temperature range of 0 to +40 °C and storage temperature range of -15 °C and +70 °C.

The HG-KN43J-S100 motor has a totally-enclosed natural cooling (TENC) construction, which aids in temperature regulation during operation.

FAQ

Q: What risks arise if the actual load inertia exceeds the recommended ratio of 15 times?

A: When the actual load inertia of the Mitsubishi HG-KN43J-S100 motor exceeds the recommended 15 times, (1) excessive load inertia can delay the motor's acceleration and deceleration. (2) Excessive load inertia during placement can cause the motor to overshoot or oscillate significantly when it stops.

Q: Is the IP65 protection rating suitable for oil mist environments?

A: The Mitsubishi HG-KN43J-S100 motor, which has an IP65 protection classification, is generally not recommended for prolonged exposure to oil mist situations. Oil mist particles are finer and more sticky, allowing them to easily bind to the motor's interior components, potentially affecting heat dissipation, insulating performance, and bearing lubrication.

Q: How can protection at the shaft passing section be enhanced?

A: Seals, protective covers, frequent maintenance and inspections, and specially engineered shaft ends are all options for improving protection at the Mitsubishi HG-KN43J-S100's shaft passing section.
