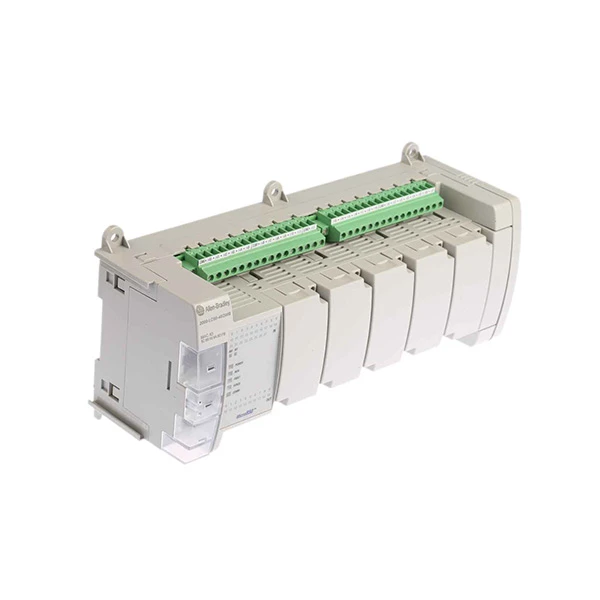

Allen Bradley 2080-LC50-48QWB
Brand: Allen-Bradley
Model: 2080-LC50-48QWB
Inventory situation: Goods are available in stock.
Product features
The Allen Bradley 2080-LC50-48QWB is a 48-point compact programmable logic controller engineered by Rockwell Automation as part of the Micro850 family. Designed for mid-sized standalone machine applications, the Allen Bradley 2080-LC50-48QWB combines embedded EtherNet/IP communication, 28 digital inputs, 20 relay outputs, and six high-speed counters into a DIN-rail mountable form factor.
Let's start by discussing its main specifications. 28 digital inputs and 20 digital outputs make up the Allen-Bradley 2080-LC50-48QWB's 48 total I/O (Input/Output) points. The PLC can monitor and regulate how machines operate thanks to these inputs connecting to sensors (which can detect motion or temperature) and outputs connecting to motors or lights. It is simple to integrate with current systems because it uses a 24V DC power supply, which is typical in industrial settings. The Connected Components Workbench software from Rockwell is used to program it. It takes little time to set up or change the controller because this software is simple to understand, even for those who are not familiar with PLCs.
Additionally, the Allen-Bradley 2080-LC50-48QWB boasts excellent design elements. Because of its small size, it is ideal for machines with limited space. In addition to being robust, it can withstand minor vibrations, which is crucial in busy factories, and operates effectively in temperatures ranging from 0°C to 55°C (32°F to 131°F). It also features an Ethernet/IP port. This port enables communication between the PLC and other devices, such as other PLCs or HMIs (human-machine interfaces, which display machine data). This makes it simpler to monitor machine performance and quickly address problems.
Specifications
|
Product Series |
Micro800 Series |
|---|---|
|
Dimensions (W×H×D) |
140 mm × 110 mm × 85 mm |
|
Digital Inputs/Outputs (DI/DO) |
28/20 points |
|
Voltage |
24V DC (±10%) |
|
Type |
Relay output |
|
CPU Core |
32-bit ARM architecture microprocessor |
|
Typical Power Consumption |
30 VA |
|
Maximum Expansion Quantity |
4 expansion modules |
Precautions
First, be mindful of the surroundings when installing the Allen-Bradley 2080-LC50-48QWB. Only temperatures between 0°C (32°F) and 55°C (131°F) are suitable for the Allen-Bradley 2080-LC50-48QWB. Avoid placing it in areas that are too hot (above 55°C) or too cold (below 0°C), as this will damage the device and shorten its lifespan. Additionally, keep the Allen-Bradley 2080-LC50-48QWB away from water, oil, and direct sunlight. The Allen-Bradley 2080-LC50-48QWB is susceptible to short circuits due to moisture and oil, which is extremely dangerous.
Second, careful work is required when wiring the Allen-Bradley 2080-LC50-48QWB. The Allen-Bradley 2080-LC50-48QWB requires 24V DC power, so first check the power source. It should never be powered by 110V or 220V AC. The Allen-Bradley 2080-LC50-48QWB's internal components will immediately burn if you do this. Next, distinguish between the Allen-Bradley 2080-LC50-48QWB's Digital Input (DI) and Digital Output (DO) terminals. The DI and DO wires should not be mixed up. Incorrect wiring will cause the Allen-Bradley 2080-LC50-48QWB to malfunction and could potentially harm the machines or sensors that are attached to it. Additionally, confirm that the Allen-Bradley 2080-LC50-48QWB is correctly grounded. The Allen-Bradley 2080-LC50-48QWB's signals remain steady because a good ground can lessen electromagnetic interference (EMI). For optimal effects, use a ground wire with a cross-sectional area of at least 1.5 mm².
