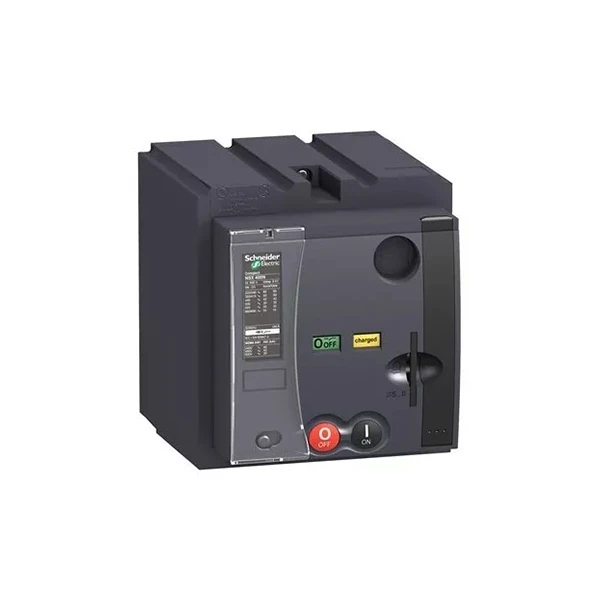

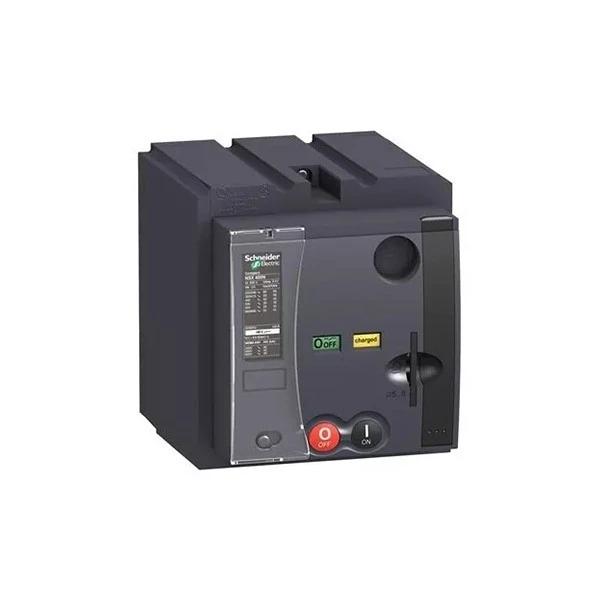

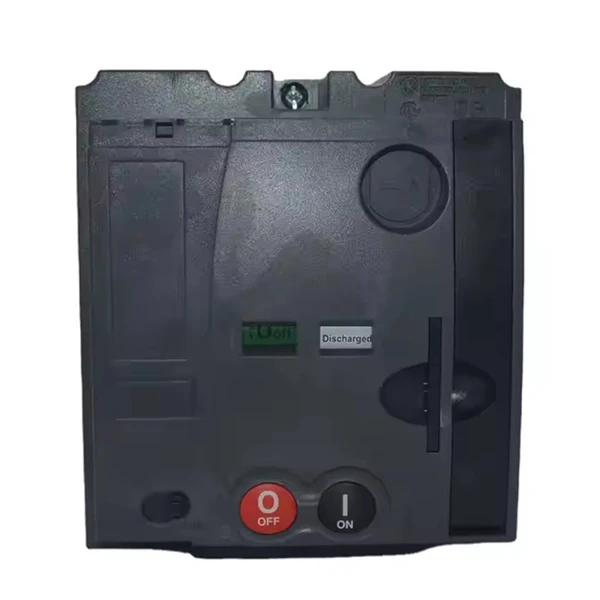

Schneider Electric LV432641 Motor Mechanism Module(75)

Brand：Schneider
Model：LV432641

Inventory situation: Goods are available in stock.

Product Description

Schneider LV432641;Industrial MCCB for Automation Systems;Thermal-Magnetic Circuit Breaker LV432641;DIN Rail Mounted Circuit Breaker Schneider;600V Rated Circuit Breaker for Industrial Use;CE Certified Molded Case Breaker;

Specifications

Control Voltage	AC 208-277V (60Hz) / AC 220-240V (50/60Hz)
Operation Frequency	≤ 4 times/minute
Closing Response	≤ 80ms
Opening Response	≤ 700ms
Mechanical Life	≥ 10,000 operations
Operating Temperature	-5°C to +70°C
Protection Rating	IP54
Weight	1.5kg

Product features

For NSX400/630 molded case circuit breakers, Schneider Electric created the LV432641 electric operating mechanism, which is mainly utilized for automated and remote control operation of the breakers.

A broad range of control voltages, including AC 208-277V (60Hz) and AC 220-240V (50/60Hz), are supported by the LV432641. The module can respond precisely to control signals in demanding industrial production lines and data center backup power switching scenarios since it can function at a frequency of ≤4 times per minute. Its response times are ≤700 ms for opening and ≤80 ms for shutting. In an emergency, this fast reaction time guarantees that the power system can turn on and off with precision, thereby avoiding equipment damage or production halts brought on by a delayed reaction.

The LV432641 exhibits exceptional environmental adaptability by operating in the temperature range of -5°C to +70°C. It can operate dependably in a variety of climates, including the frigid winters in the north, the scorching summers in the south, and the vicinity of industrial furnaces. It successfully protects against dust and water splashing thanks to its IP54 protection grade. With an extended mechanical lifespan, the LV432641 saves users a significant amount of money on maintenance while offering a solid and long-lasting user experience.

FAQ

Q: Is the LV432641 only compatible with the NSX400/630 series? Can it be compatible with other brands or Schneider's other series of molded case circuit breakers (such as the CVS series)?

A: The LV432641 is primarily designed with compatibility for the NSX400/630 series. Using it across different series or brands entails higher technical risks and costs. If you need to expand the compatibility range, it is recommended to select the dedicated operating mechanism from Schneider specifically designed for the target series.

Q: With an operating frequency of ≤4 times per minute, is it suitable for high-frequency switching scenarios (such as automatic transfer systems for backup power)? Is cooling required for continuous operation?

A: With a running frequency of less than twice per minute, the LV432641 is appropriate for common backup power switching situations. It is essential to closely regulate the surrounding temperature and provide for cooling periods when nearing the design limitations of three to four times per minute; active cooling techniques are not necessary. However, prolonged use at high frequencies will shorten its lifespan considerably.

Q: Under what conditions was the ≥10,000 operations lifespan tested (such as at room temperature, full load, and frequent operation)? Is the actual service life affected by environmental factors?

A: Based on laboratory data gathered at room temperature (20°C), rated load, low frequency (1 operation per minute), and in a clean environment, the LV432641's 10,000 operations lifespan was determined. Temperature, humidity, operating frequency, load, and pollutants are some of the elements that affect the actual service life; the two most important aging acceleration factors are temperature and frequency.
