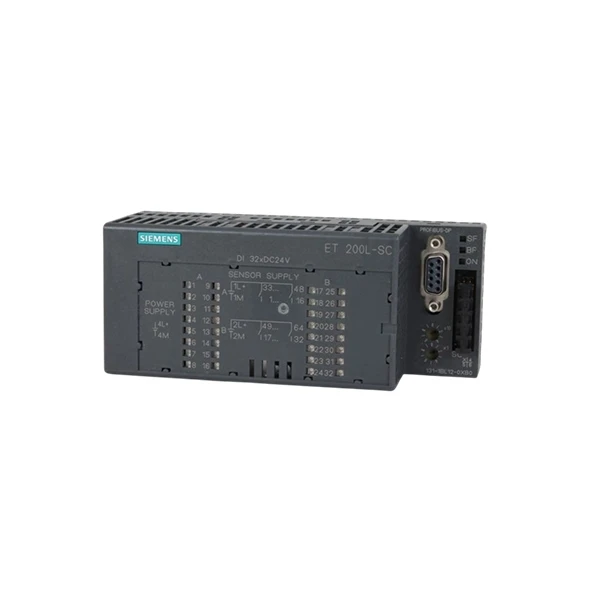

Siemens 6ES7131-1BL12-0XB0

Brand: Siemens
Model: 6ES7131-1BL12-0XB0

Siemens 6ES7131 1BL12 0XB0

Inventory situation: Goods are available in stock.

Product features

Siemens 6ES7131-1BL12-0XB0 is a reliable digital input module from the SIMATIC DP product line, specifically designed for the ET 200L distributed I/O system in industrial automation. With its 32 digital input channels, the Siemens 6ES7131-1BL12-0XB0 is perfect for connecting several sensors in production lines, such as limit switches and photoelectric sensors. It is compatible with common industrial power sources because it runs on a 24V DC power supply with a voltage range of 20.4V DC to 28.8V DC. With only 3 to 5 mA of current drawn by each channel and a total power consumption of roughly 1.8W, long-term operation can save energy.

With a maximum transmission rate of 12 Mbit/s, the Siemens 6ES7131-1BL12-0XB0 utilizes the PROFIBUS DP bus. This creates an effective distributed control network by enabling quick and reliable data exchange with SIMATIC S7 series PLCs. Users can easily monitor working conditions thanks to the module's clear LED indicators, which include a green RUN light for normal operation, a red BF light for bus errors, and green lights for individual input statuses.

With its IP20 protection rating, the Siemens 6ES7131-1BL12-0XB0 successfully keeps dust and small foreign objects out. It can adapt to harsh industrial environments by operating in temperatures between -25°C and 60°C and humidity levels between 5% and 95% without condensation. It is mounted on DIN rails and weighs just 0.19 kg, which saves room in control cabinets. Additionally, the module has 500V AC isolation between the backplane bus and itself, which improves anti-interference and safety.

Specifications

Model	6ES7131-1BL12-0XB0
Product Type	SIMATIC DP Electronic Module
Country of Origin	Germany
Input Type	Digital Input (DI)
Rated Voltage	24 V DC
Voltage Range	20.4 V DC ~ 28.8 V DC
Isolation Class	500 V AC
Operating Temperature	-25°C ~ +60°C

Application scenarios

Multiple limit switches, photoelectric sensors, and proximity sensors are frequently used by factories that make automobiles, electronics, or machinery to monitor the location, motion, and functionality of their equipment. The Siemens 6ES7131-1BL12-0XB0, which has 32 digital input channels, can connect all of these sensors simultaneously and collect data in real time about whether machines are operating, parts are installed, or processes are finished. It easily integrates into current power systems because it operates with 24V DC power, which is standard in industrial settings. This ensures smooth signal transmission to SIMATIC S7 PLCs via the PROFIBUS DP bus, which supports up to 12 Mbit/s. This lowers downtime and increases production efficiency by enabling factory workers to quickly identify problems like equipment jams or sensor failures through the module's LED indicators.

Siemens 6ES7131-1BL12-0XB0 is also used in small to medium-sized industrial automation systems, like appliance assembly lines or packaging machines. To reduce power costs and free up space in control cabinets, these systems require small, energy-efficient modules. With a weight of just 0.19 kg and DIN rail mounting, the Siemens 6ES7131-1BL12-0XB0 conserves important space. It is also energy-efficient for long-term operation due to its low power consumption (about 1.8W total) and 3-5 mA per channel current draw. Its IP20 protection rating also keeps dust and small objects out, and it can withstand the harsh conditions of factory floors-whether in hot production areas or cold warehouses-because it can operate in temperatures between -25°C and 60°C.

FAQ

Q: What is the Siemens 6ES7131-1BL12-0XB0 and what is its primary function?

A: A digital input (DI) module for the SIMATIC ET 200SP distributed I/O system is the Siemens 6ES7131-1BL12-0XB0. Connecting digital field devices, like switches, push buttons, and sensors, to the programmable logic controller (PLC) is its main purpose. An essential component of a contemporary industrial automation system, it serves as an interface, reading the on/off signals from these devices and sending the data to the central CPU for processing.

Q: What are the key technical specifications of the 6ES7131-1BL12-0XB0 module?

A: The module is identified as a 16-channel digital input module for the ET 200SP system, despite the lack of a complete datasheet in the search results. It is crucial to refer to the official Siemens technical documentation and manual for this particular module for exact specifications such as input voltage ranges, electrical isolation, and diagnostic capabilities.

Q: Which Siemens PLC systems is this digital input module compatible with?

A: The SIMATIC ET 200SP distributed I/O system is the intended use for the 6ES7131-1BL12-0XB0. This indicates that it is compatible with controllers that can use PROFINET network communication to function as a PROFINET IO controller for ET200SP, such as the SIMATIC S7-1500 and S7-1200 series PLCs.
