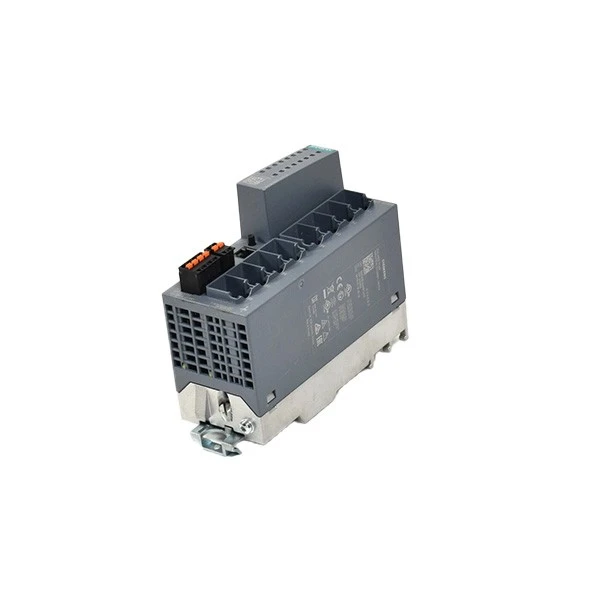

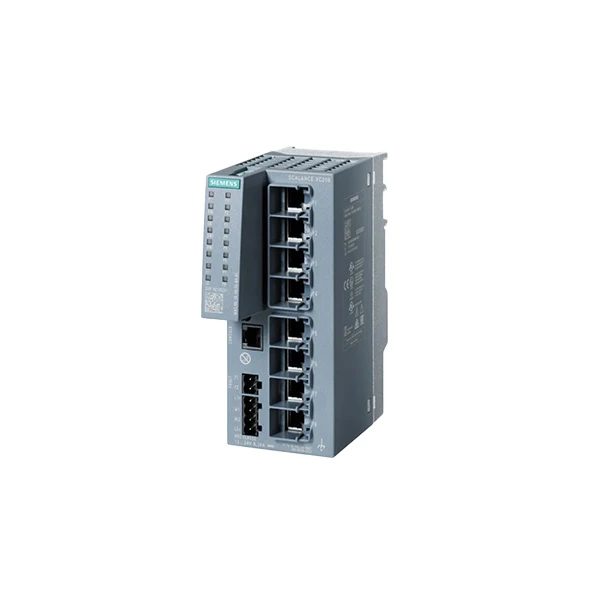

Siemens 6GK5208-0BA00-2AC2

Brand: Siemens
Model: 6GK5208-0BA00-2AC2

Inventory situation: Goods are available in stock.

Product features

Siemens 6GK5208-0BA00-2AC2 is a high-quality managed Layer 2 industrial Ethernet switch from the Siemens SCALANCE X-200 series that is specifically built for harsh industrial situations. The Siemens 6GK5208-0BA00-2AC2 features 8 RJ45 ports that enable 10/100 Mbit/s adaptive speed, ensuring quick and smooth data transmission across industrial equipment such as sensors, controllers, and machines. Each RJ45 port includes a locking collar to prevent inadvertent disconnection, which is critical for ongoing industrial activities. It also contains one console port for convenient local configuration and one C-Plug slot, which allows users to instantly save and transfer settings, simplifying device management and maintenance.

The Siemens 6GK5208-0BA00-2AC2 was designed to resist extreme industrial conditions. It has an extended operating temperature range of -40°C to +70°C, making it suitable for both cold and hot situations such as factories, power plants, and outdoor industrial locations. With an IP20 rating, it efficiently prevents dust from entering and causing damage to internal components. The switch offers a variety of mounting methods, including DIN rail, S7 mounting rail, and wall mounting, making it simple to install in tight areas.

The Siemens 6GK5208-0BA00-2AC2 has a high level of reliability. It has a redundant DC power supply with an input voltage range of 9.6V to 31.2V, which maintains the switch operational even if one power source fails. This backup design reduces network downtime and ensures uninterrupted industrial operations. It also includes critical redundancy features such as RSTP and VLAN, which improve network stability and security. Diagnostic LED indications enable users quickly identify and resolve network issues, minimizing maintenance time.

Specifications

Model	6GK5208-0BA00-2AC2
Product Name	SCALANCE XC208 Managed Layer 2 Industrial Ethernet Switch
Series	SIMATIC NET SCALANCE X Series X-200
Protection Class	IP20
PROFINET Class	Class B
Voltage Range	9.6V ~ 31.2V DC
Maximum Current Consumption	0.17A
Power Loss	4.2W

Application scenarios

Siemens 6GK5208-0BA00-2AC2 is widely utilized in a variety of industrial applications due to its long-lasting design and reliable performance. As a managed Layer 2 industrial Ethernet switch from the SCALANCE X-200 series, it performs admirably in harsh industrial conditions, making it an excellent choice for machinery manufacturers. The Siemens 6GK5208-0BA00-2AC2 is used in these factories to connect sensors, programmable logic controllers (PLCs), and production machines via 8 RJ45 connections. The 10/100 Mbit/s adaptive speed enables quick data transmission between devices, while the fastening collars on each port prevent inadvertent disconnection, allowing the assembly line to run uninterrupted and increasing production efficiency.

Power plants are another important application area for the Siemens 6GK5208-0BA00-2AC2. These sites frequently experience dramatic temperature variations and high dust levels, but the switch's broad operating temperature range (-40°C to +70°C) and IP20 protection rating enable it to function consistently. Its redundant DC power supply (9.6V to 31.2V input) is crucial in this case: if one power source fails, the switch continues to function, preventing network downtime that could compromise power generation and distribution. The Siemens 6GK5208-0BA00-2AC2 also includes redundancy features such as RSTP, which improve network stability for monitoring systems that track power output and equipment status.

FAQ

Q: What is the Siemens 6GK5208-0BA00-2AC2, and what are its primary applications?

A: The Siemens 6GK5208-0BA00-2AC2 is a managed Layer 2 Industrial Ethernet (IE) switch of the SCALANCE XC-200 series. It is intended for reliable networking in tough industrial environments such as factory automation, process control, and machinery. Its primary function is to link industrial devices (PLCs, HMIs, and drives) to a PROFINET network while offering managed features for network stability and diagnostics. Assembly lines, packaging systems, and distributed control structures all require strong connectivity.

Q: What are the key technical features and environmental specifications?

A: This switch is designed for industrial durability. It works reliably in harsh temperatures ranging from -40°C to +70°C, making it ideal for unheated cabinets or hot manufacturing floors. With an IP20 rating, it protects against finger contact and objects larger than 12.5mm, but is designed for enclosure installation. It has 8 RJ45 ports that handle 10BASE-T and 100BASE-TX speeds with auto-negotiation and auto-crossing. It provides a redundant power supply (24V DC) and capabilities like as RSTP (Rapid Spanning Tree Protocol) and VLANs to create loop-free and segregated networks. The integrated C-plug enables rapid device replacement without manual reconfiguration.
