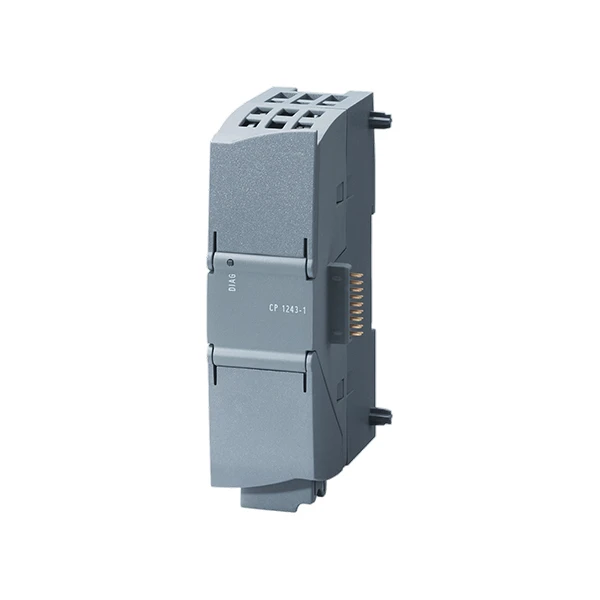

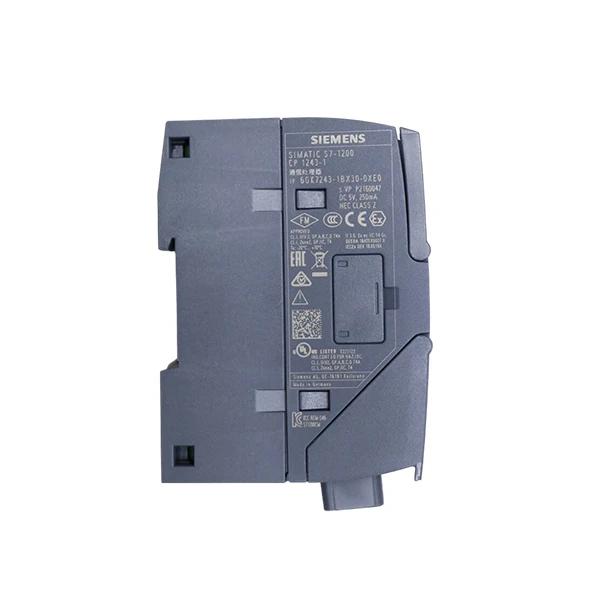

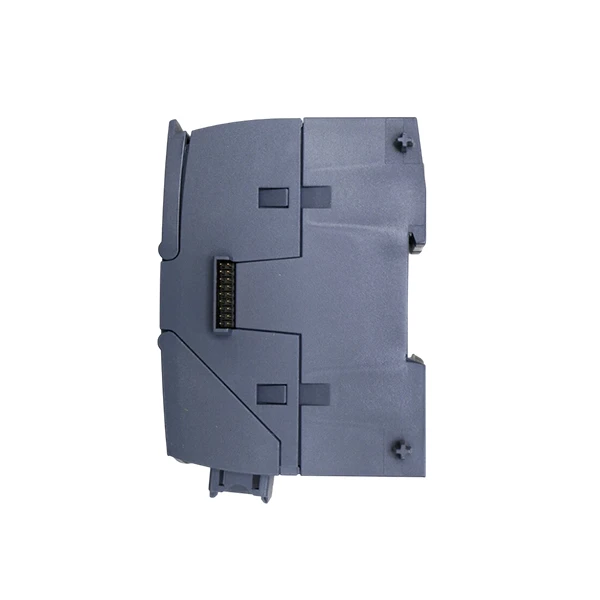

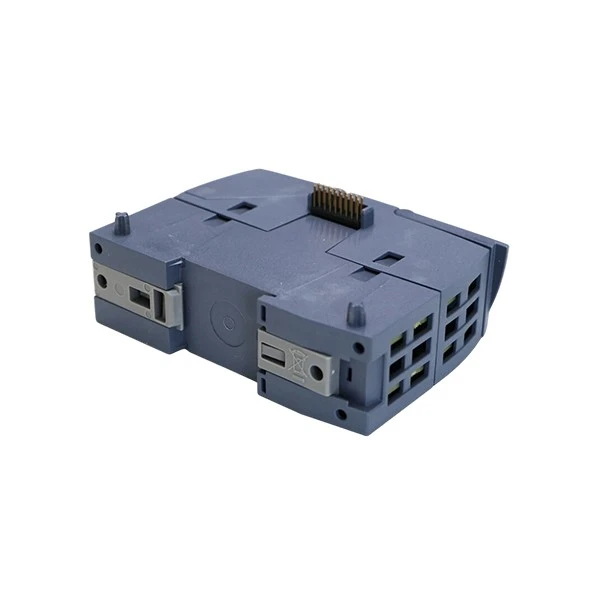

Siemens 6GK7243-1BX30-0XE0
Brand: Siemens
Model: 6GK7243-1BX30-0XE0
Inventory situation: Goods are available in stock.
Product features
The CP 1243-1 communication processor, also known as SIEMENS 6GK7243-1BX30-0XE0, is a dependable industrial Ethernet module made especially for the SIMATIC S7-1200 PLC series. With dimensions of only 30 mm × 110 mm × 75 mm and a weight of only 122 grams, the SIEMENS 6GK7243-1BX30-0XE0 is perfect for control cabinets with limited space because it is simple to install on standard DIN rails. Its IP20 protection rating ensures stable operation in challenging industrial settings by protecting against touch and small debris. It uses roughly 1.25 W of power and runs effectively on a 5 V DC backplane bus supply. It is suitable for both indoor and outdoor industrial sites and operates dependably in temperatures between -20°C and +60°C.
The SIEMENS 6GK7243-1BX30-0XE0's primary strength is its array of communication features. With its single 10/100 Mbps RJ45 Ethernet port and support for Auto-negotiation and Auto-MDI/MDIX, it enables a smooth connection to industrial networks up to 100 meters away using standard Cat.5 shielded cables. This module is ideal for SCADA systems' remote monitoring and data collection because it supports a large number of industrial protocols, such as PROFINET IO, TCP/IP, Modbus TCP, OPC UA, MQTT, and SNMP, in addition to telecontrol protocols like DNP3 and IEC 60870-5-104.
All you need to configure the SIEMENS 6GK7243-1BX30-0XE0 is the STEP 7 Basic/Professional (TIA Portal) software. Long-term usability and adaptability to new industrial requirements are ensured by its firmware update compatibility. This module is frequently used in industrial automation systems to give S7-1200 PLCs additional Ethernet ports, allowing for smooth device communication. Additionally, it is essential to industrial IoT (IIoT) applications, facilitating the efficient transmission of data and the connection of industrial equipment to the cloud.
Specifications
|
Model |
6GK7243-1BX30-0XE0 |
|---|---|
|
Product Name |
Communication Processor CP 1243-1 |
|
Product Type |
SIMATIC S7-1200 Series Industrial Ethernet Communication Module |
|
Country of Origin |
Germany |
|
Weight |
0.122 kg (122 g) |
|
Protection Class |
IP20 |
|
Ethernet Ports |
1 x RJ45 interface (10/100 Mbps) |
|
Dimensions (W×H×D) |
30 mm × 110 mm × 75 mm |
Precautions
The SIEMENS 6GK7243-1BX30-0XE0 (CP 1243-1 communication processor) can be used safely, steadily, and effectively by taking certain precautions. This will protect the module and your industrial system while also adhering to industry standards. The SIEMENS 6GK7243-1BX30-0XE0 must be installed carefully. It must always be mounted on a standard DIN rail as directed, and it must not be dropped, struck, or subjected to excessive pressure because of its small size (30 mm × 110 mm × 75 mm), which need to be handled gently to protect internal components. The SIEMENS 6GK7243-1BX30-0XE0 should never be installed in locations with intense vibrations, direct sunlight, or excessive dust because these conditions can interfere with its IP20 protection feature and cause malfunctions.
The SIEMENS 6GK7243-1BX30-0XE0's performance depends on its surroundings. To prevent circuit damage, make sure the operating temperature remains between -20°C and +60°C and the storage temperature stays between -40°C and +70°C. Because moisture can corrode the module's ports and internal components, maintain the relative humidity at 25°C at no higher than 95% (without condensation). Use extra protective enclosures if necessary to protect the SIEMENS 6GK7243-1BX30-0XE0 from the elements on outdoor or harsh industrial sites.
It is important to take precautions regarding software configuration and compatibility. STEP 7 Basic/Professional (TIA Portal) is required for the SIEMENS 6GK7243-1BX30-0XE0 setup; never use out-of-date or unapproved software versions as they may result in communication errors or configuration failures. To guarantee compatibility with new protocols and security patches, check for firmware updates prior to use (the most recent stable version for hardware version 2 is V3.2.24). Install them via authorized channels. Follow Siemens' official instructions when configuring protocols like PROFINET IO, Modbus TCP, or VPN to prevent making mistakes that could prevent data transfer or jeopardize security.
