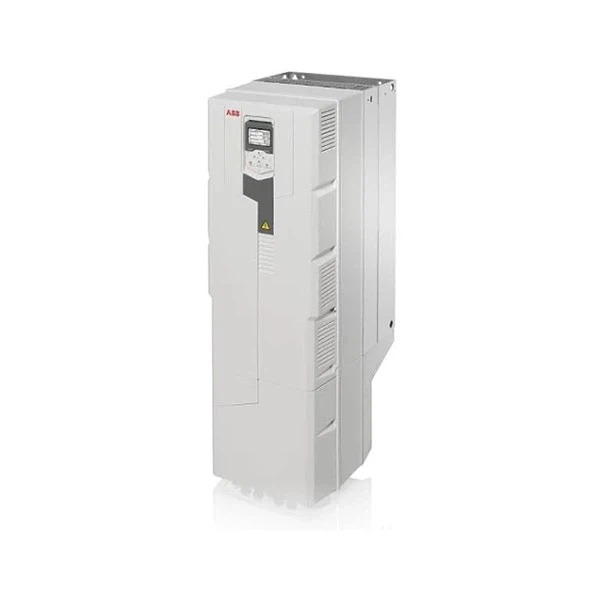

ABB ACS580-01-169A-4
Brand：ABB
Model：ACS580-01-169A-4
Inventory situation: Goods are available in stock.
Product Application Scenarios
In manufacturing plants, the ACS580-01-169A-4 excels at controlling large motors for pumps, fans, and conveyors. Its DTC technology provides instant torque response and precise speed regulation (up to 1:1000 speed range), ensuring smooth operation even in high-load environments like steel production or chemical processing. The drive supports multi-speed settings and PID control, which are essential for applications requiring adjustable flow or pressure, such as mixing tanks in food processing or cooling systems in electronics manufacturing. Built-in overload protection and advanced diagnostics help prevent downtime, making it perfect for 24/7 production lines.
For water treatment facilities, this drive plays a critical role in managing pumps and blowers. It adjusts motor speed based on real-time demand, maintaining stable water pressure in distribution networks or optimizing aeration in wastewater treatment tanks. Compared to fixed-speed systems, it can reduce energy consumption by up to 40%, thanks to its efficient torque control. The ACS580-01-169A-4's rugged design, with coated circuit boards and IP21 protection, ensures durability in humid or corrosive environments. It easily integrates with pressure sensors and PLC systems, enabling seamless automation in large-scale water management projects.
In heating, ventilation, and air conditioning (HVAC) setups, the ACS580-01-169A-4 optimizes energy use by controlling fans and chillers. It adjusts motor speed based on temperature or occupancy, reducing electricity waste in warehouses, data centers, or industrial complexes. The drive supports common communication protocols like Modbus RTU and Profibus, allowing easy connection to building automation systems for centralized monitoring. For example, in large rooftop units or air handling systems, it can dynamically lower fan speeds during low-demand periods, cutting costs while maintaining comfortable indoor conditions.
Specifications
| Dimensions | 370mm×284mm×880mm (Width×Depth×Height) |
| Rated power | 90kW |
| Three-phase alternating current | 380-480V ±10%, frequency 47-63Hz |
| Protection level | IP21 |
| Temperature | -15℃ to +50℃ |
| Humidity | 5%-95% |
| Safety certifications | CE, UL 61800-5-1, cULus |
| Wall-mounted type | Install vertically |
Product features
The ACS580-01-169A-4 is a general-purpose variable frequency drive developed by ABB. This type is specifically built for demanding industrial applications, including a powerful output of 90 kW and Dynamic Torque Control (DTC) for rapid response. It is appropriate for pumps, fans, compressors, and high-precision manufacturing lines, allowing businesses to achieve a 30% increase in energy efficiency and a 40% reduction in operational expenses.
The ACS580-01-169A-4 inverter offers a wide voltage input range and adaptive capabilities of 380-480V ± 10%, making it suitable for global grid variations. There is no need to be concerned about unsteady voltage in older facilities. The inverter is intended to tolerate 150% current for up to 60 seconds, making it suitable for motor starts or occasional overloads.
In terms of safety, the ABB ACS580-01-169A-4 has a dual-channel relay design and has received SIL 3/PL e certification (EN 61800-5-2), ensuring minimal risk during emergency shutdowns. The inverter can be cloud-connected, which allows for real-time defect notifications (such as overheating and overload), mobile diagnostics, and a 70% reduction in downtime.
